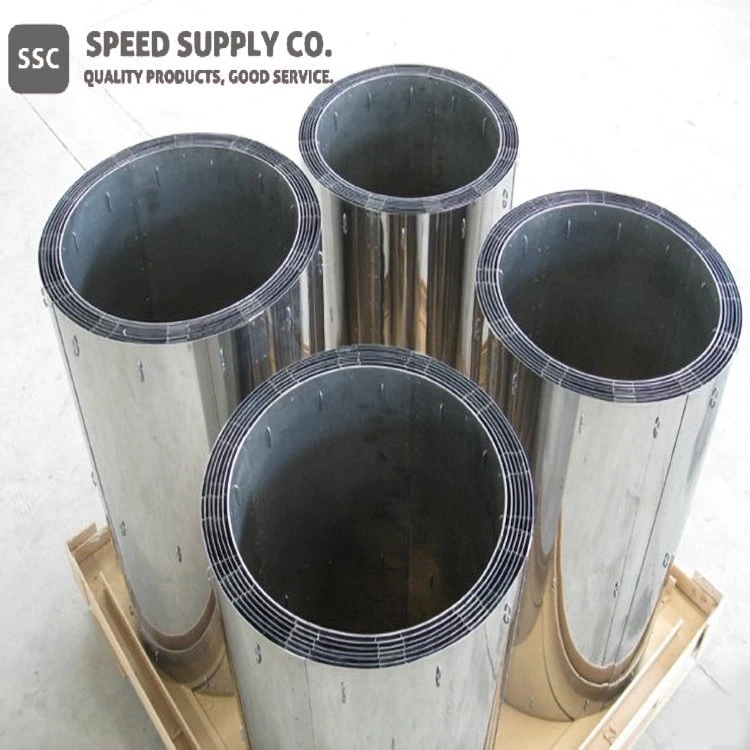

Molybdenum Heat Shield

Linear Formula: Mo, Ti Zr Mo, Mo-La

Send Inquiry

Add To Inquiry

Features

Linear Formula:	Mo, Ti Zr Mo, Mo-La
Material:	Grade 361 Mo≥99.95%, Grade 364 TZM Molybdenum Alloy, Molybdenum Lanthanum Alloy La2O3: 0.3~0.7%
Purity:	≥99.95%
Standard:	ASTM B386
Size:	Per Drawings
Application temperature environment:	< 1900℃

Molybdenum Heat Shield Description

Molybdenum heat shield and molybdenum cover are important parts for insulating and reflecting heat in the sapphire furnace. It's important to use materials with good density, accurate measurements, smooth surfaces, easy assembly, and good design of heat shielding parts to make crystal pulling better. Molybdenum heat shields can be used for other situations where heat is needed.

Molybdenum heat shields can be made in any size or configuration. Your drawings show the dimensions and tolerances. Our good molybdenum products can resist heat very well. The price of a molybdenum heal shield depends on its size, complexity and configuration.

Molybdenum heat shields are mostly made from molybdenum sheets by welding and riveting. Molybdenum rods, molybdenum nuts and molybdenum screws are also used to make molybdenum heat shields. We also make molybdenum heat shields based on the customer's drawings.

Molybdenum Heat Shield Dimensions

Molybdenum Lid		Molybdenum Heat Shield
Thickness	Dia (max)	Thickness	Dia (max)	Height (max)
2.0 ± 0.1	660 ± 0.2	2.0 ± 0.1	450 ± 2	660 ± 1
1.0 ± 0.08	660 ± 0.2	1.0 ± 0.08	610 ± 2	660 ± 1
0.5 ± 0.04	660 ± 0.2	0.5 ± 0.04	700 ± 2	660 ± 1
0.3 ± 0.03	660 ± 0.2	0.3 ± 0.03	700 ± 2	660 ± 1
