Features
|
Linear Formula: |
Mo, Ti Zr Mo, Mo-La |
|
Material: |
Grade 361 Mo≥99.95%, Grade 364 TZM Molybdenum Alloy, Molybdenum Lanthanum Alloy La2O3: 0.3~0.7% |
|
Purity: |
≥99.95% |
|
Standard: |
ASTM B387 & ASTM B386 |
|
Size: |
Per Drawings |
Product Description

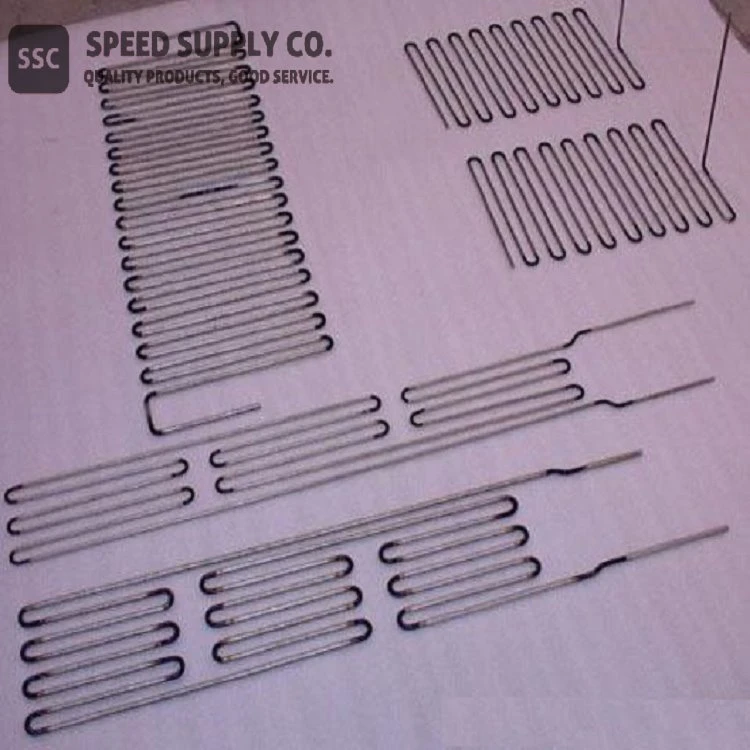

Molybdenum Heating Elements are critical components used in high-temperature furnaces and heating systems due to their exceptional resistance to heat and oxidation in vacuum or inert atmospheres. These heating elements are manufactured from pure molybdenum or molybdenum-based alloys and are designed to perform in extreme thermal environments with temperatures exceeding 1900°C.
Their excellent thermal conductivity, low vapor pressure, and durability make molybdenum heating elements ideal for demanding applications in industries such as metallurgy, aerospace, semiconductor manufacturing, and glass production. These elements are customizable in shapes, sizes, and configurations, including rods, strips, and coils, to meet the specific requirements of various heating systems.
Features & Properties
High Melting Point: Operates effectively at temperatures above 1900°C in inert or vacuum atmospheres.
Excellent Thermal Conductivity: Ensures uniform heat distribution for efficient performance.
Low Vapor Pressure: Reduces material loss and contamination under high vacuum conditions.
Oxidation Resistance: Performs reliably in controlled atmospheres without degradation.
Customizable Designs: Available in various shapes and configurations, including rod, coil, and plate types.
Long Service Life: High durability under prolonged exposure to extreme heat.
Product Specifications
Operating Temperature: Up to 1900°C (in vacuum or inert atmospheres)
Shapes and Forms: Rods, plates, strips, wires, and coils
Dimensions: Fully customizable according to application requirements
Surface Finish: Polished or cleaned for high performance
Product Forms
Molybdenum Heating Rods
Molybdenum Strips
Molybdenum Heating Coils
Molybdenum Plates
Production Method & Production Equipments
Production Process:
Material Preparation: High-purity molybdenum powder is compacted and sintered to form billets.
Rolling and Forging: The billets are processed into rods, strips, or plates through hot and cold rolling.
Machining: Precision machining is performed to shape the heating element into rods, coils, or custom configurations.
Annealing: Elements are vacuum annealed to relieve stress and improve thermal stability.
Inspection: Rigorous quality control ensures product consistency and performance.
Key Equipment:
Vacuum sintering furnaces
Hot and cold rolling mills
CNC machining tools
Surface polishing and cleaning systems
Applications and Related Industries
Vacuum Furnaces: Essential for heating chambers in high-vacuum environments.
Semiconductor Industry: Used in crystal growth and epitaxial deposition systems.
Aerospace: Supports high-temperature testing and component manufacturing.
Glass Production: Heating elements for melting and processing specialty glass.
Metallurgy: Used in sintering, brazing, and annealing applications.
Solar Energy: Integrated into thin-film deposition systems for solar cells.
Interesting Facts
Thermal Stability: Molybdenum heating elements can operate consistently over extended periods without sagging or warping.
Versatility: They can be combined with other refractory metals like tungsten for hybrid heating solutions.
Wide Temperature Range: These elements maintain efficiency from sub-zero to ultra-high temperatures.
Environmental Benefits: Energy-efficient performance reduces overall energy consumption in industrial processes.
Synonyms
Mo Heating Elements
Molybdenum Furnace Components
High-Temperature Molybdenum Resistors
Health & Safety Information
Handling: Avoid bending or scratching heating elements during installation to prevent structural damage.
Storage: Store in a clean, dry environment free of contaminants.
Safety Measures: Ensure proper ventilation during use in case of accidental oxidation.
Disposal: Dispose of molybdenum heating elements according to local environmental regulations.
Why Choose Us for Your Molybdenum Heating Element Needs?
Tailored Solutions: Fully customizable designs to suit your specific furnace or system requirements.
Premium Quality: High-purity molybdenum ensures reliable and consistent performance.
Global Delivery: Fast and secure shipping to customers worldwide.
Competitive Pricing: Industry-leading value for high-performance components.
Technical Support: Expert assistance with selection, installation, and customization.
Contact Us Today
Need reliable molybdenum heating elements for your high-temperature applications? Contact us today for product details, pricing, and customized solutions. Let us help you achieve unparalleled performance and efficiency in your industrial processes!
Molybdenum Heating Elements Specification
|
Diameter (mm) |
Width (mm) |
Height (mm) |
|||
|
Size |
Tolerance |
Size |
Tolerance |
Size |
Tolerance |
|
3.0 |
±0.1 |
<650 |
±5.0 |
<1200 |
±10.0 |
|
4.0 |
±0.1 |
<600 |
±5.0 |
<1150 |
±10.0 |
|
5.0 |
±0.1 |
<550 |
±5.0 |
<1100 |
±10.0 |
|
6.0 |
±0.2 |
<550 |
±5.0 |
<1050 |
±10.0 |
|
7.0 |
±0.2 |
<500 |
±5.0 |
<1000 |
±10.0 |
|
8.0 |
±0.2 |
<500 |
±5.0 |
<950 |
±5.0 |
|
9.0 |
±0.2 |
<450 |
±5.0 |
<900 |
±5.0 |
We also customize molybdenum heating elements to fit your requirements.
