Features
CAS No.: | 12136-78-6 |
Linear Formula: | MoSi2 |
Shape: | W-Shaped |
Appearance： | Black and White |
Specification: | Per requirements |
Molybdenum Disilicide Heating Element Description
MoSi2 heating element is made of molybdenum disilicide and a glaze of silicide dioxide. Molybdenum disilicide is a special material that has the best properties of both ceramic and metal materials. It can resist corrosion and oxidation like ceramic materials and doesn't expand much when heated. Also, it is very good at transferring heat and electricity, just like metals. Thermal shock doesn't harm the part, and it can last a long time because it's strong. It can be used up to 1800°C.
This makes it suitable to be used as a heating element. They come in many different shapes like straight, bent, and multi-shank. SSC makes its MoSi2 heating elements by hot pressing, hot extrusion, and also by pressure-assisted sintering. SSC uses hot isostatic pressing to produces complex shapes, with uniform density and grain structures.
The best grade of MoSi2 heating elements can operate at temperatures of up to 1800°C. But the material is very brittle and can creep from use. SSC makes heating elements that can work at high electric loads without aging. MoSi2 heating elements come ready-made and can be straight, bent, or with many shanks. They come in many different sizes. The elements are used in furnaces in the glass, electronics, steel, ceramics, and heat treatment industries.

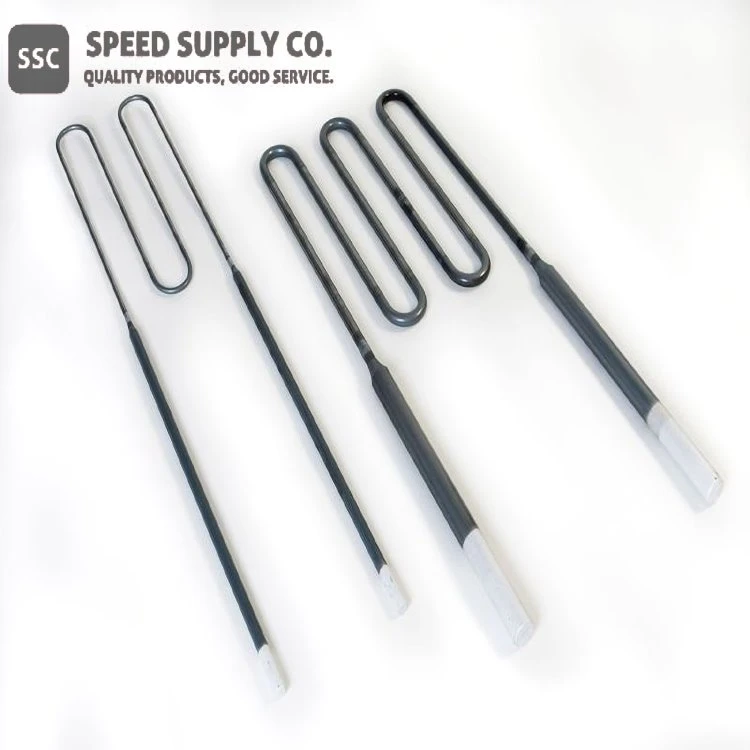

W-type heating elements made of molybdenum disilicide are known for being very long-lasting and reliable at high temperatures. A heating rod that looks like a W is usually placed horizontally. Because it makes more heat, it works better and costs less than other heating elements. This heating element has two cold ends and three hot zones. In most cases, the Lu is twice as big as the Le.
W-Shaped Molybdenum Disilicide Heating Element Sizes
Size | HotZone | ColdEnd | Center Distance | |||
Ø | Ø | Between Legs | ||||
mm | in | mm | in | mm | in | |
3/6 | 3 | 0.12 | 6 | 0.24 | 25 | 0.98 |
4/8 | 4 | 0.16 | 9 | 0.35 | 25 | 0.98 |
6/12 | 6 | 0.24 | 12 | 0.47 | 50 | 1.97 |
9/18 | 9 | 0.35 | 18 | 0.71 | 60 | 2.36 |
12/24 | 12 | 0.47 | 24 | 0.94 | 80 | 3.15 |
Molybdenum Disilicide Heating Element Specification
ITEM | Density | Bend strength | Vickers hardness | Porosity rate | Absorbent rate | Hot strength length |
UNIT | g/cm3 | kg/cm2 | kg/cm2 | % | % | % |
FIGURE | 5.6 | ≥15 | 1200 | 7.4 | 1.2 | 4-5 |
Molybdenum Disilicide Heating Element Working Conditions
Atmosphere | Maximum working temperature | |
1700 type | 1800type | |
Air | 1700℃ | 1800℃ |
N2 | 1600℃ | 1700℃ |
He, Ar, Ne | 1600℃ | 1700℃ |
H2 | 1100~1450℃ | 1100~1450℃ |
95%N2/5%H2 | 1250~1600℃ | 1250~1600℃ |
Fields | Mainly used for industrial heat treatment furnace, sintering furnace, casting furnace, glass melting furnace, smelting furnace | Mainly used for experimental furnaces, test equipment and high temperature sintering furnace |
Molybdenum Disilicide Heating Element Applications and Related Industries
● Seamless Tube of Stainless Steel
● Alloy steel
● Heat-resisting Superalloy
● Research & Laboratory
● Aerospace
● Nuclear Energy
Chemical Identifiers
Linear Formula | MoSi2 |
MDL Number | MFCD00151535 |
EC No. | 235-231-8 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 6336985 |
IUPAC Name | bis (λ2-silanylidene) molybdenum |
SMILES | [Si]=[Mo]=[Si] |
InchI Identifier | InChI=1S/ Mo.2Si |
InchI Key | YXTPWUNVHCYOSP-UHFFFAOYSA-N |
Molybdenum Disilicide Heating Elements Properties (Theoretical)
Compound Formula | MoSi2 |
Molecular Weight | 152.11 |
Appearance | solid |
Melting Point | N/A |
Boiling Point | N/A |
Density | 6.31 g/cm3 |
Solubility in H2O | N/A |
Exact Mass | 153.859261 |
Monoisotopic Mass | 153.859261 |
Molybdenum Disilicide Heating Elements Health & Safety Information
Signal Word | Warning |
Hazard Statements | H302-H312-H332 |
Hazard Codes | Xn |
Risk Codes | 20/21/22 |
Safety Statements | 36 |
RTECS Number | N/A |
Transport Information | N/A |
WGK Germany | 3 |
