PRODUCTS
Features
CAS No.: | 12136-78-6 |
Linear Formula: | MoSi2 |
Shape: | U-Shaped |
Appearance： | Black and White |
Specification: | Per requirements |

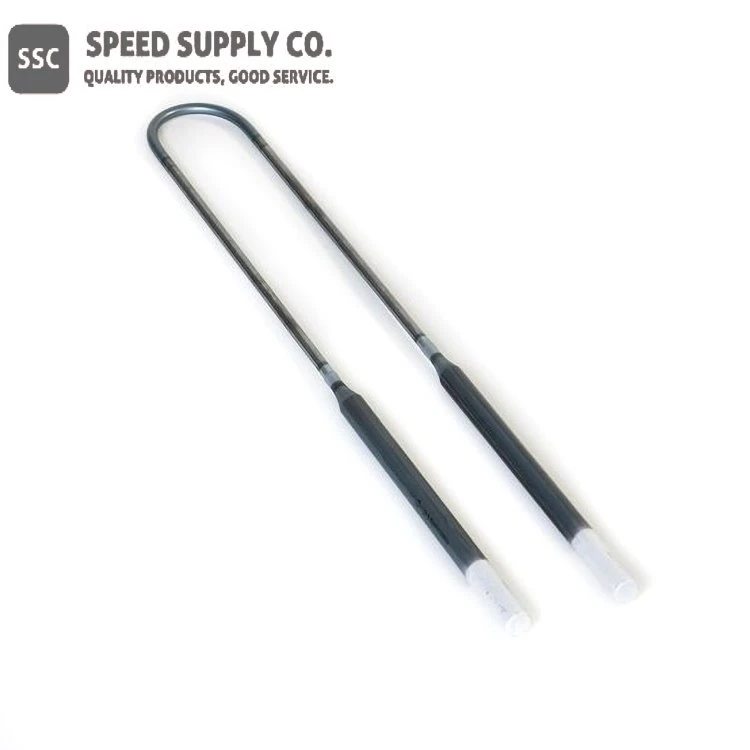

Molybdenum Disilicide Heating Element Description
Molybdenum disilicide heating element is a type of heating element made of silicon molybdenum. The maximum temperature of the components is 1800°C.
Our molybdenum disilicide heating elements come in a wide range of shapes and sizes. All of them are long-lasting and perform well.
The most common furnace temperature for silicon molybdenum rods is 1300°C-1800°C. It is used in the fields of metallurgy, glass, ceramics and magnetic materials. Heating elements in industrial furnaces are important for high temperature sintering.
Molybdenum disilicide is similar to ceramic products. They are brittle and easy to break at high temperatures. This is hard to transport and install. As long as the installation is done correctly and reasonably, this can be avoided.
Our molybdenum disilicide heating elements come in seven different grades, including nitrogen, hydrogen, vacuum, and reducing atmospheres.
Molybdenum disilicide heating elements with a U shape are known for being durable and reliable at high temperatures. It was made for industrial and laboratory furnaces, which can withstand high-temperature working conditions. Customers can choose different shapes of products depending on the size of their furnace.
Molybdenum Disilicide Heating Element Specification
ITEM | Density | Bend strength | Vickers hardness | Porosity rate | Absorbent rate | Hot strength length |
UNIT | g/cm3 | kg/cm2 | kg/cm2 | % | % | % |
FIGURE | 5.6 | ≥15 | 1200 | 7.4 | 1.2 | 4-5 |
Molybdenum Disilicide Heating Element Working Conditions
Atmosphere | Maximum working temperature | |
1700 type | 1800type | |
Air | 1700℃ | 1800℃ |
N2 | 1600℃ | 1700℃ |
He, Ar, Ne | 1600℃ | 1700℃ |
H2 | 1100~1450℃ | 1100~1450℃ |
95%N2/5%H2 | 1250~1600℃ | 1250~1600℃ |
Fields | Mainly used for industrial heat treatment furnace, sintering furnace, casting furnace, glass melting furnace, smelting furnace | Mainly used for experimental furnaces, test equipment and high temperature sintering furnace |
Molybdenum Disilicide Heating Element Applications and Related Industries
● Seamless Tube of Stainless Steel
● Alloy steel
● Heat-resisting Superalloy
● Research & Laboratory
● Aerospace
● Nuclear Energy
Chemical Identifiers
Linear Formula | MoSi2 |
MDL Number | MFCD00151535 |
EC No. | 235-231-8 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 6336985 |
IUPAC Name | bis(λ2-silanylidene) molybdenum |
SMILES | [Si]=[Mo]=[Si] |
InchI Identifier | InChI=1S/Mo.2Si |
InchI Key | YXTPWUNVHCYOSP-UHFFFAOYSA-N |
Molybdenum Disilicide Heating Elements Properties (Theoretical)
Compound Formula | MoSi2 |
Molecular Weight | 152.11 |
Appearance | solid |
Melting Point | N/A |
Boiling Point | N/A |
Density | 6.31 g/cm3 |
Solubility in H2O | N/A |
Exact Mass | 153.859261 |
Monoisotopic Mass | 153.859261 |
Molybdenum Disilicide Heating Elements Health & Safety Information
Signal Word | Warning |
Hazard Statements | H302-H312-H332 |
Hazard Codes | Xn |
Risk Codes | 20/21/22 |
Safety Statements | 36 |
RTECS Number | N/A |
Transport Information | N/A |
WGK Germany | 3 |
Hot Tags: u-shaped molybdenum disilicide heating element, China, suppliers, buy, for sale, made in China
