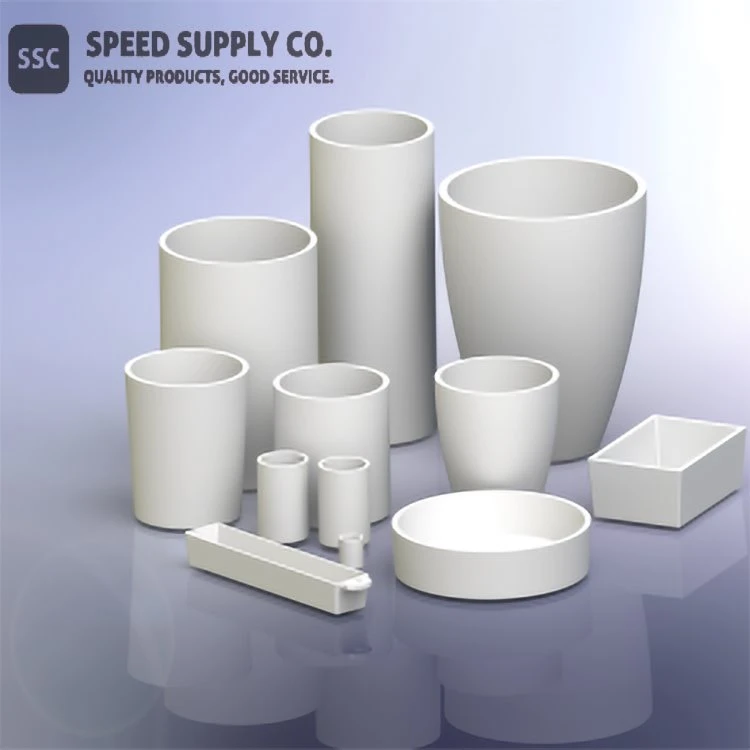

Magnesia Stabilized Zirconia Crucible

Material: Magnesia Partially Stabilized Zirconia

Send Inquiry

Add To Inquiry

Features

Material:	Magnesia Partially Stabilized Zirconia
Appearance:	Ivory or Yellow-orange
Shape:	Cylindrical, Conical or Customized
Working Temperature:	up to 1900℃
Corrosion Resistant:	Acids, Alkalis
Density:	4.5g/cc
Porosity:	18%
MOR @R.T.:	3500psi
Size:	Approx. Capacity: 2-300 mL OD: 9-80mm, Height: 15-80mm, Wall thickness: 1.5-3.5mm or Customized

Magnesia Stabilized Zirconia Crucible Description

Transformation toughened zirconias such a magnesia stabilized zirconia have small precipitates of tetragonal phase which are formed inside of the cubic phase grains. These precipitates transform from the meta-stable tetragonal phase to the stable monoclinic phase when a crack attempts to propagate through the material. This causes the precipitate to expand and blunt the crack tip promoting toughness.

MSZ can be either ivory or yellow-orange in color due to differences in preparation of the raw material. Ivory colored MSZ has a higher purity and offers slightly better mechanical properties.

MSZ is more stable in high temperature (220℃ and above), high moisture environments than YTZP - where YTZP typically degrades. MSZ has a low thermal conductivity and CTE similar to cast iron to prevent thermal mismatch in ceramic to metal assemblies.

Due to the transformation toughening, our partially stabilized MSZ crucibles provide excellent strength, toughness, wear, abrasion, and corrosion resistant to meet the severe service needs of many industries.

Magnesia Stabilized Zirconia Crucible Composition

Composition	ZrO2	MgO	CaO	Al2O3	TiO2	Fe2O3	SiO2
Content %	95.3	2.2	0.2	0.7	0.2	0.2	1.2

Physical Proprieties of Magnesia Stabilized Zirconia Crucible

Density	g/cm3	4,6
Open porosity	%	18
Breakage module	MPa	24.1
Max. temperature	°C	1800
Thermal conductivity	W/mK	1,4 (à 800°C)
Thermal dilatation	10-6/K	6.6 @ 600°C
		6.2 @ 1000°C
		2.3 @ 1300°C
