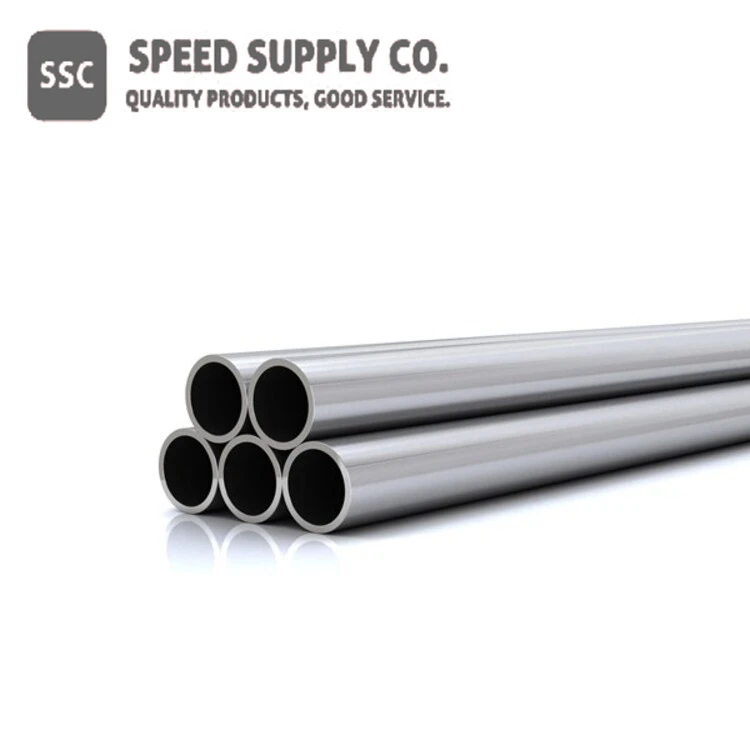

Molybdenum Tube

Molybdenum tubes are special tubes made from a metal called molybdenum. It can withstand high temperatures and is very good at holding heat. Molybdenum tubes are used in many industries, including aerospace, semiconductor, chemical processing, and heat treatment.

Features:

Molybdenum tubes have many features and benefits, including:

● High-temperature resistance: Molybdenum tubes can be used in high-temperature applications because they can withstand temperatures up to 2000 degrees Celsius.

● Corrosion resistance: Molybdenum tubes can resist corrosion and oxidation in tough chemical and corrosive environments.

● Excellent mechanical properties: Molybdenum tubes are strong, ductile, and tough, making them ideal for use in demanding applications.

● Good thermal conductivity: Molybdenum tubes have good thermal conductivity properties, making them ideal for use in heat exchangers and other thermal management applications.

Grades:

Molybdenum tubes are available in various grades, including:

● Pure molybdenum tubes: These tubes are made from pure molybdenum material and offer high-temperature resistance and excellent mechanical properties.

● TZM molybdenum tubes: These tubes have titanium, zirconium, and molybdenum and are stronger and more resistant to creep than pure molybdenum tubes.

● Lanthanated molybdenum tubes: These tubes contain lanthanium oxide and molybdenum and are better at high temperatures and ductility.

● Molybdenum-tungsten tubes: These tubes are made with tungsten to make them stronger and resistant to corrosion and wear.

Forms:

Molybdenum tubes are available in various forms, including:

Seamless tubes: These tubes are made from a single piece of molybdenum material and offer excellent mechanical properties.

● OD (outer diameter): 2.0-150mm

● Wall thickness: 0.2-15mm

● Length: up to 6 meters

● Grades: Mo1, Mo2, Mo3, TZM, ML, and others

Welded tubes: These tubes are made by welding molybdenum sheets together and offer lower cost and increased flexibility in terms of size and shape.

● OD (outer diameter): up to 500mm

● Wall thickness: up to 30mm

● Length: up to 6 meters

● Grades: Mo1, Mo2, Mo3, TZM, ML, and others

Straight tubes: These tubes are produced with a uniform diameter and thickness throughout the length of the tube. They are typically used in applications where a high degree of precision is required.

● OD (outer diameter): up to 250mm

● Wall thickness: up to 15mm

● Length: up to 2 meters

● Grades: Mo1, Mo2, Mo3, TZM, ML, and others

Coiled tubes: These tubes are produced in a coiled form and can be easily formed into a desired shape or configuration. They are commonly used in heat exchangers and other applications where a high degree of flexibility is required.

● OD (outer diameter): up to 20mm

● Wall thickness: up to 1.5mm

● Length: up to 100 meters

● Grades: Mo1, Mo2, Mo3, TZM, ML, and others

Finned tubes: These tubes are produced with fins on the outside surface to increase the surface area for improved heat transfer. They are commonly used in heat exchangers and other applications where efficient heat transfer is essential.

● OD (outer diameter): up to 70mm

● Wall thickness: up to 10mm

● Length: up to 10 meters

● Grades: Mo1, Mo2, Mo3, TZM, ML, and others

Production Method:

Molybdenum tubes are produced using various methods, including:

● Powder metallurgy: It is the process of making molybdenum powder into a tube shape and sintering it at high temperatures.

● Extrusion: It is to push molybdenum material through a die to make a tube shape.

● Rolling: This methord makes molybdenum sheets into a tube shape and joining them together.

Applications & Related Industries:

Molybdenum tubes are used in many different applications.

● Aerospace industry: The aerospace industry uses molybdenum tubes to make parts for airplanes and engines that work very hot.

● Semiconductor industry: The semiconductor industry uses molybdenum tubes to make semiconductor components and equipment.

● Chemical processing industry: Molybdenum tubes are used in the chemical processing industry because they are very resistant to corrosion and high temperatures.

● Heat treatment industry: Molybdenum tubes are used in the heat treatment industry because they are good at transferring heat.

● Electronics: Molybdenum tubes are used in electronic parts like vacuum tubes and x-ray tubes because they can conduct electricity well and don't expand when heated.

● Energy: Molybdenum tubes are used in nuclear reactors and other high-temperature energy applications due to their excellent thermal conductivity and resistance to corrosion.

● Medical: Molybdenum tubes are used in medical devices such as x-ray machines and CT scanners due to their ability to produce high-quality images.

Health & Safety Information:

Molybdenum tubes are generally considered safe for use in industrial and commercial applications. However, as with any material, it is important to handle them with care and follow appropriate safety procedures.

Our Advantages:

As a leading manufacturer of molybdenum tubes, we pride ourselves on providing high-quality products and excellent customer service. Some of the advantages of working with us include:

● High-quality products: Our molybdenum tubes are made from the highest quality materials and are manufactured to meet the strictest industry standards.

● Custom solutions: We can provide customized molybdenum tubes to meet the specific needs of your application.

● Fast turnaround times: We understand that time is critical in many applications, and we work hard to ensure fast turnaround times on all orders.

FAQs:

Q: What is the lead time for custom molybdenum tube orders?

A: Lead times for custom molybdenum tube orders vary depending on the specific requirements of the order. Contact us for more information.

Q: What is the maximum temperature that molybdenum tubes can withstand?

A: Molybdenum has a high melting point of 2,623°C (4,753°F), which makes it suitable for use in high-temperature applications.

Q: Can molybdenum tubes be welded?

A: Yes, molybdenum tubes can be welded using a variety of welding techniques, including gas tungsten arc welding (GTAW) and plasma arc welding (PAW).

Q: What is the difference between pure molybdenum and molybdenum alloys?

A: Pure molybdenum has a higher melting point and better corrosion resistance than molybdenum alloys, but molybdenum alloys offer better strength and toughness at high temperatures.
