PRODUCTS
Features
|
Material: |
C.P. Titanium, Titanium Alloy |
|
Standard: |
AMS, ASTM, AWS |
|
Surface: |
Black oxide, Pickled, Polished (Dia. >1.0mm) |
|
Shape: |
Straight wire, Coiled wire (Close-packed and regular pack), on spool |
|
Size: |
Straight wire: |
Product Description

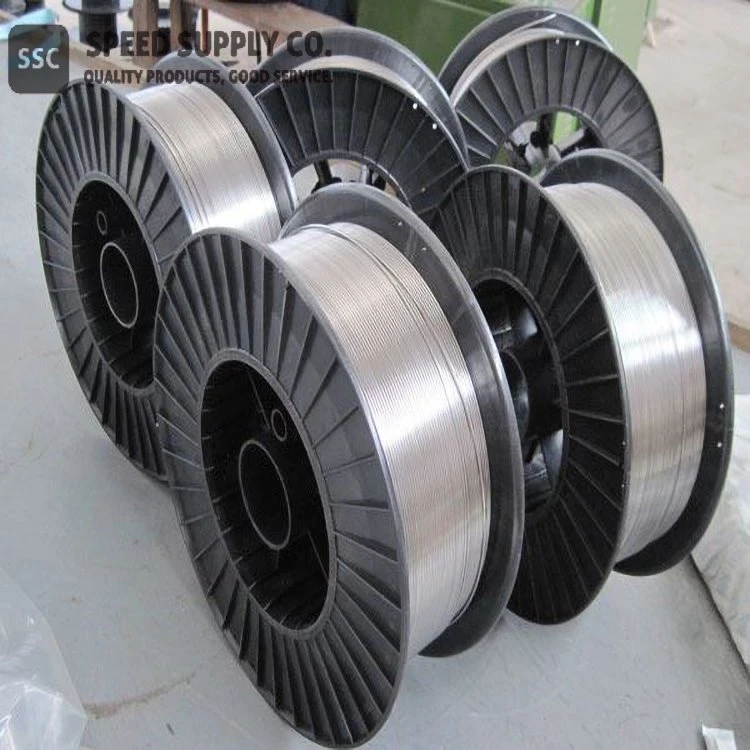

Titanium wire is a high-performance metallic wire known for its exceptional strength, lightweight nature, and corrosion resistance. It is widely used in aerospace, medical, chemical processing, and marine industries due to its excellent mechanical properties and biocompatibility. Titanium wire is available in commercially pure (CP) grades and titanium alloys, offering options for different industrial applications.
Features & Properties
✔ High Strength-to-Weight Ratio – Stronger than steel but much lighter.
✔ Superior Corrosion Resistance – Excellent resistance to acids, seawater, and harsh chemicals.
✔ Biocompatibility – Suitable for medical implants and surgical applications.
✔ High Melting Point – Can withstand extreme temperatures without deformation.
✔ Good Weldability & Machinability – Easy to fabricate and process.
✔ Non-Magnetic & Non-Toxic – Ideal for sensitive applications.
Product Standards
ASTM B863 – Standard Specification for Titanium & Titanium Alloy Wire
ASTM F136 – Medical-grade titanium wire for implants
AMS 4951, AMS 4928 – Aerospace & industrial specifications
Product Forms
✔ Straight Wire – Cut to length for industrial use
✔ Coiled Wire – For easy storage and continuous applications
✔ Spool Wire – Convenient for welding & manufacturing processes
Production Method & Production Equipments
Production Method:
Titanium Ingot Melting – Using vacuum arc remelting (VAR) or electron beam melting (EBM).
Hot Rolling & Drawing – To achieve desired diameter.
Annealing & Surface Treatment – Improves mechanical properties.
Straightening & Cutting – Custom lengths and tolerances.
Quality Inspection & Packaging – Ensuring compliance with standards.
Production Equipments:
🔹 Vacuum Arc Remelting (VAR) Furnace
🔹 Electron Beam Melting (EBM) System
🔹 Wire Drawing Machines
🔹 Straightening & Cutting Machines
🔹 Pickling & Polishing Equipment
🔹 Precision Measuring Instruments
Applications & Related Industries
✔ Aerospace – Aircraft components, fasteners, and engine parts
✔ Medical – Orthopedic implants, surgical instruments, and dental applications
✔ Chemical Processing – Heat exchangers, filtration systems, and reactor vessels
✔ Marine Engineering – Deep-sea exploration equipment and ship components
✔ Jewelry & Fashion – Hypoallergenic titanium jewelry and eyewear
✔ Automotive & Motorsport – High-performance parts for racing applications
✔ Electronics – Springs, connectors, and high-temperature electrical applications
Interesting Facts
✅ Titanium wire is widely used in biomedical applications due to its biocompatibility and lack of toxicity in the human body.
✅ It is 45% lighter than steel while maintaining comparable strength, making it ideal for weight-sensitive applications.
✅ Titanium does not rust or corrode, even when exposed to saltwater or harsh acids.
Synonyms
Ti Wire
CP Titanium Wire
Titanium Alloy Wire
Aerospace Titanium Wire
Health & Safety Information
✔ Non-Toxic & Biocompatible – Safe for medical and food industry applications.
✔ Heat Resistance – Can withstand high temperatures but should not be exposed to extreme oxidizing environments.
✔ Handling Precautions – Use protective gloves when handling to prevent contamination.
✔ Storage Recommendations – Keep in a dry, clean environment to maintain material integrity.
Why Choose Our Titanium Wire?
🔹 High Purity & Strength – Manufactured with strict quality control.
🔹 Custom Sizes & Grades Available – Tailored solutions for diverse industries.
🔹 Certified & Compliant – Meets ASTM & aerospace standards.
🔹 Fast Delivery & Competitive Pricing – Reliable supply chain & global shipping.
📩 Contact us today for inquiries or custom orders!
Grades and Standards
|
Material Grade |
Standard specification |
|
Commercially Pure |
ASTM B 348 Grades 1,2,3,4 |
|
Ti Alloy 6Al 4V |
ASTM B 348 Grade 5 |
|
Titanium Alloy 6Al 4V ELI |
ASTM F 136 |
|
Titanium Alloy Ti 0.2Pd |
ASTM B 348 Grades 7 & 11 |
|
Titanium Alloy Ti 0.3 Mo .8Ni |
ASTM B 348 Grade 12 |
|
Titanium Alloy 5Al 2.5Sn |
AMS 4953 |
|
Titanium Alloy 3Al 2.5V |
ASTM B 348 Grade 9 |
|
Titanium Alloy Ti 6Al 7Nb |
ASTM F 1295 |
Titanium Physical Properties
|
Grade |
Ultimate Tensile Strength Min. |
Yield Strength |
Elongation % |
Reduction Area % |
Condition |
||
|
KSI |
MPa |
KSI |
MPa |
||||
|
1 |
35 |
240 |
20 |
138 |
24 |
30 |
As specified (shape) |
|
2 |
50 |
345 |
40 |
275 |
20 |
30 |
As specified (shape) |
|
3 |
64 |
450 |
55 |
380 |
18 |
30 |
As specified (shape) |
|
4 |
80 |
550 |
70 |
483 |
15 |
25 |
As specified (shape) |
|
5 |
130 |
895 |
120 |
828 |
10 |
25 |
As specified (shape) |
|
6 |
115 |
792 |
110 |
758 |
10 |
25 |
Forged Bars |
|
7 |
50 |
345 |
40 |
275 |
20 |
30 |
As specified (shape) |
|
9 |
90 |
620 |
70 |
483 |
15 |
25 |
As specified (shape) |
|
11 |
35 |
240 |
20 |
138 |
24 |
30 |
As specified (shape) |
|
12 |
70 |
483 |
50 |
345 |
18 |
25 |
As specified (shape) |
|
16 |
50 |
345 |
40 |
275 |
20 |
30 |
As specified (shape) |
|
17 |
35 |
240 |
25 |
170 |
24 |
30 |
As specified (shape) |
|
23 |
120 |
828 |
110 |
759 |
10 |
25 |
Beta-Annealed |
Titanium Material Grades
C.P. Titanium
Grade 1
Grade 2
Grade 2H (Grade 2 with 58 ksi minimum UTS)
Grade 3
Grade 4
Titanium Alloy
Grade 5 (6 % Al, 4 % V)
Grade 7 (0.12 to 0.25 % Pd)
Grade 7H (0.12 to 0.25 % Pd) (Grade 7 with 58 ksi minimum UTS)
Grade 9 (3 % Al, 2.5 % V)
Grade 11 (0.12 to 0.25 % Pd)
Grade 12 (0.3 % Mo, 0.8 % Ni)
Grade 13 (0.5 % Ni, 0.05 % Ru)
Grade 14 (0.5 % Ni, 0.05 % Ru)
Grade 15 (0.5 % Ni, 0.05 % Ru)
Grade 16 (0.04 to 0.08 % Pd)
Grade 16H (0.04 to 0.08 % Pd) (Grade 16 with 58 ksi minimum UTS)
Grade 17 (0.04 to 0.08 % Pd)
Grade 18 (3 % Al, 2.5 % V, 0.04 to 0.08 % Pd)
Grade 19 (3 % Al, 8 % V, 6 % Cr, 4 % Zr, 4 % Mo)
Grade 20 (3 % Al, 8 % V, 6 % Cr, 4 % Zr, 4 % Mo, 0.04 %–0.08 % Pd)
Grade 21 (15 % Mo, 3 % Al, 2.7 % Nb, 0.25 % Si)
Grade 23 (6 % Al, 4 % V, with extra low interstitial elements, ELI)
Grade 24 (6 % Al, 4 % V, 0.04 % to 0.08 % Pd)
Grade 25 (6 % Al, 4 % V, 0.3 % to 0.8 % Ni and 0.04 % to 0.08 % Pd)
Grade 26 (0.08 to 0.14 % Pd)
Grade 26H (0.08 to 0.14 % Pd) (Grade 26 with 58 ksi minimum UTS)
Grade 27 (0.08 to 0.14 % Pd)
Grade 28 (3 % Al, 2.5 % V, 0.08–0.14 % Ru)
Grade 29 (6 % Al, 4 % V, ELI, plus 0.08 to 0.14 % Ru)
Grade 30 (0.3 % Co, 0.05 % Pd)
Grade 31 (0.3 % Co, 0.05 % Pd)
Grade 32 (5 % Al, 1 % tin, 1 % Zr, 1 % V, 0.8 % Mo)
Grade 33 (0.4 % Ni, 0.015 % Pd, 0.025 % Ru, 0.15 % Cr)
Grade 34 (0.4 % Ni, 0.015 % Pd, 0.025 % Ru, 0.15 % Cr)
Grade 35 (4.5 % Al, 2 % Mo, 1.6 % V, 0.5 % iron, 0.3 % Si)
Grade 36 (45 % Nb)
Grade 37 (1.5 % Al)
Grade 38 (4 % Al, 2.5 % V, 1.5 % Fe)
