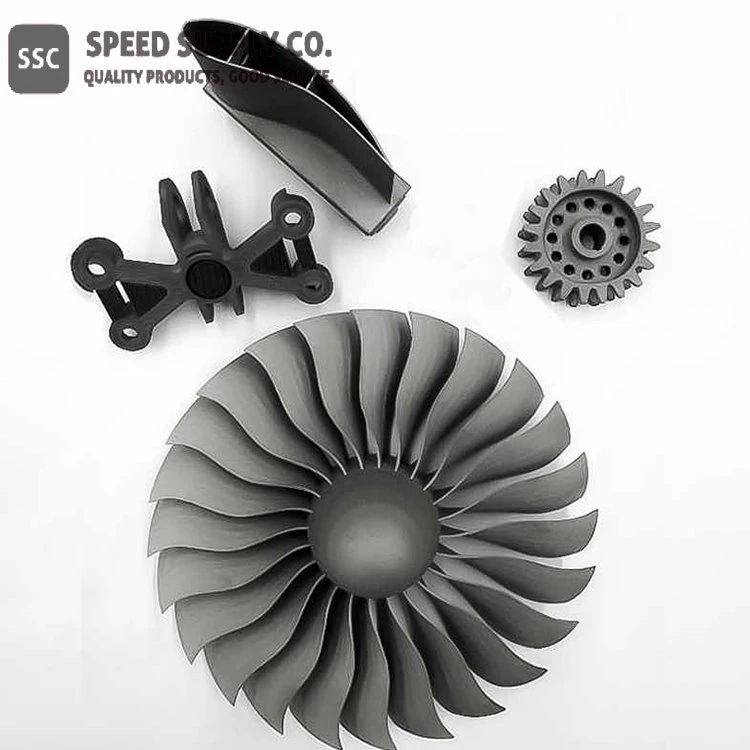

Titanium Castings
Material: C.P. Titanium (Grade 2), Titanium Aluminum Vanadium Alloy Ti-6Al-4V (Grade 5), or Customized
Features
|
Material: |
C.P. Titanium (Grade 2), Titanium Aluminum Vanadium Alloy Ti-6Al-4V (Grade 5), or Customized |
|
Dimensions: |
Per drawings |
Product Description
Titanium castings are high-strength, lightweight, and corrosion-resistant components produced through precision casting processes. Made from commercially pure (C.P.) titanium (Grade 2) or Titanium-Aluminum-Vanadium Alloy Ti-6Al-4V (Grade 5), these castings are widely used in aerospace, marine, medical, and industrial applications where durability, performance, and weight reduction are crucial.
Titanium alloys are melted in vacuum skull furnaces and can be cast to many designations of pumps, valve impellers, artificial joints, and machines of other shapes. X-ray inspections are applied in all casting processes in accordance with good manufacturing practices. SSC can produce custom titanium precision castings according to your drawings and specifications.
Features & Properties
✔️ Excellent Corrosion Resistance – Performs exceptionally well in seawater, acids, and extreme environments.
✔️ High Strength-to-Weight Ratio – Stronger than steel at half the weight.
✔️ Superior Heat & Wear Resistance – Withstands high temperatures & mechanical stress.
✔️ Biocompatible & Non-Magnetic – Ideal for medical implants & aerospace applications.
✔️ Customizable Shapes & Sizes – Produced per customer drawings & specifications.
Product Specifications
Material Options:
Grade 2 (C.P. Titanium): Excellent corrosion resistance, moderate strength.
Grade 5 (Ti-6Al-4V): High strength, used in aerospace & high-performance applications.
Customized Titanium Alloys: Tailored to specific industry requirements.
Dimensions: Per customer drawings & specifications
Surface Finish Options:
As-cast (Raw Finish)
Machined Finish
Polished or Anodized
Product Standards
✔ ASTM B367 – Standard Specification for Titanium Castings
✔ AMS 4991 – Aerospace-Grade Titanium Alloy Castings
✔ ISO 9692 – International Casting Standards
Product Forms
Pump & Valve Bodies
Impellers & Turbine Blades
Medical Implants & Surgical Components
Aerospace Structural Parts
Automotive Racing Parts
Custom Titanium Cast Components
Production Method & Production Equipments
Production Method:
1️⃣ Wax Pattern Creation – Producing a wax model of the final component.
2️⃣ Ceramic Shell Formation – Coating the wax pattern with ceramic slurry.
3️⃣ Wax Removal & Shell Firing – Creating a hollow ceramic mold for casting.
4️⃣ Titanium Melting & Pouring – Using vacuum arc melting (VAR) or induction melting for precision casting.
5️⃣ Cooling & Shell Removal – Solidifying the titanium part & breaking the mold.
6️⃣ Finishing & Machining – Removing excess material & applying surface treatments.
7️⃣ Quality Inspection – Conducting X-ray, ultrasonic, & mechanical property testing.
Production Equipments:
Vacuum Arc Remelting (VAR) Furnaces – Ensures high-purity titanium casting.
Induction Melting Systems – Used for precision casting.
CNC Machining Centers – Produces high-precision titanium components.
Heat Treatment Furnaces – Enhances mechanical properties.
X-ray & Ultrasonic Testing Equipment – Ensures defect-free castings.
Applications & Related Industries
🔹 Aerospace & Defense – Aircraft structures, jet engines, & spacecraft components.
🔹 Marine & Offshore – Corrosion-resistant parts for submarines & ships.
🔹 Medical & Healthcare – Biocompatible implants & surgical tools.
🔹 Automotive & Motorsports – High-performance titanium racing parts.
🔹 Industrial Machinery – Titanium pump housings, impellers, & turbine blades.
🔹 Chemical Processing – Used in acidic & high-temperature environments.
Interesting Facts
✅ Titanium castings are 50% lighter than steel while maintaining superior strength.
✅ Used in NASA spacecraft due to their high-temperature resistance.
✅ Titanium's biocompatibility makes it ideal for artificial joints & medical implants.
Synonyms
Titanium Investment Castings
Titanium Precision Castings
Aerospace-Grade Titanium Castings
Custom Titanium Alloy Castings
Health & Safety Information
🔹 Non-Toxic & Biocompatible – Safe for medical & aerospace use.
🔹 Wear Protective Gear – During machining or finishing, to avoid fine titanium dust inhalation.
🔹 Proper Storage Required – Keep in dry conditions to prevent oxidation.
Why Choose Our Titanium Castings?
✅ Precision Engineered & Customizable – Manufactured per customer specifications.
✅ Aerospace & Medical-Grade Materials – High-purity Grade 2 & Grade 5 titanium.
✅ Strict Quality Control – ASTM B367 & AMS 4991-certified castings.
✅ Fast & Reliable Global Shipping – Secure packaging & quick delivery worldwide.
📩 Need a quote? Contact us today for custom titanium castings!
Introduction of Casting Methods
● Machined graphite mold casting:
This method can simplify molding and effectively control metallurgical quality. Thicker and larger size castings can be precisely made by this method.
● Ceramic mold investment casting:
This method produces more precise castings, with details such as logos is clearly cast. Large-sized and complex shape parts can be well cast using this method.
Surface Treatment for Titanium Castings
|
Corrosion Resistance and Surface Treatment |
1) the atmospheric oxidation treatment |
|
Wear Resistance Surface Treatment |
1) wet coating |
|
Then Surface Treatment |
1) surface finish |
Titanium Physical Properties
|
Grade |
Ultimate Tensile Strength |
Yield Strength |
Elongation % |
Reduction Area % |
Condition |
||
|
KSI |
MPa |
KSI |
MPa |
||||
|
1 |
35 |
240 |
20 |
138 |
24 |
30 |
As specified (shape) |
|
2 |
50 |
345 |
40 |
275 |
20 |
30 |
As specified (shape) |
|
3 |
64 |
450 |
55 |
380 |
18 |
30 |
As specified (shape) |
|
4 |
80 |
550 |
70 |
483 |
15 |
25 |
As specified (shape) |
|
5 |
130 |
895 |
120 |
828 |
10 |
25 |
As specified (shape) |
|
6 |
115 |
792 |
110 |
758 |
10 |
25 |
Forged Bars |
|
7 |
50 |
345 |
40 |
275 |
20 |
30 |
As specified (shape) |
|
9 |
90 |
620 |
70 |
483 |
15 |
25 |
As specified (shape) |
|
11 |
35 |
240 |
20 |
138 |
24 |
30 |
As specified (shape) |
|
12 |
70 |
483 |
50 |
345 |
18 |
25 |
As specified (shape) |
|
16 |
50 |
345 |
40 |
275 |
20 |
30 |
As specified (shape) |
|
17 |
35 |
240 |
25 |
170 |
24 |
30 |
As specified (shape) |
|
23 |
120 |
828 |
110 |
759 |
10 |
25 |
Beta-Annealed |
Titanium Chemical Composition
Grade 1-Unalloyed titanium
Grade 2-Unalloyed titanium
Grade 2H-Unalloyed titanium (Grade 2 with 58 ksi minimum UTS)
Grade 3-Unalloyed titanium
Grade 4-Unalloyed titanium
Grade 5-Titanium alloy (6 % aluminum, 4 % vanadium)
Grade 7-Unalloyed titanium plus 0.12 to 0.25 % palladium
Grade 7H-Unalloyed titanium plus 0.12 to 0.25 % palladium (Grade 7 with 58 ksi minimum UTS)
Grade 9-Titanium alloy (3 % aluminum, 2.5 % vanadium)
Grade 11-Unalloyed titanium plus 0.12 to 0.25 % palladium
Grade 12-Titanium alloy (0.3 % molybdenum,0.8 % nickel)
Grade 13-Titanium alloy (0.5 % nickel, 0.05 % ruthenium)
Grade 14-Titanium alloy (0.5 % nickel, 0.05 % ruthenium)
Grade 15-Titanium alloy (0.5 % nickel, 0.05 % ruthenium)
Grade 16-Unalloyed titanium plus 0.04 to 0.08 % palladium
Grade 16H-Unalloyed titanium plus 0.04 to 0.08 % palladiumm (Grade 16 with 58 ksi minimum UTS)
Grade 17-Unalloyed titanium plus 0.04 to 0.08 % palladium
Grade 18-Titanium alloy (3 % aluminum, 2.5 % vanadium) plus 0.04 to 0.08 % palladium
Grade 19-Titanium alloy (3 % aluminum, 8 % vanadium, 6 % chromium, 4 % zirconium, 4 % molybdenum)
Grade 20-Titanium alloy (3 % aluminum, 8 % vanadium, 6 % chromium, 4 % zirconium, 4 % molybdenum) plus 0.04 %–0.08 % palladium
Grade 21-Titanium alloy (15 % molybdenum, 3 % aluminum, 2.7 % niobium, 0.25 % silicon)
Grade 23-Titanium alloy (6 % aluminum, 4 % vanadium with extra low interstitial elements, ELI)
Grade 24-Titanium alloy (6 % aluminum, 4 % vanadium) plus 0.04 % to 0.08 % palladium
Grade 25-Titanium alloy (6 % aluminum, 4 % vanadium) plus 0.3 % to 0.8 % nickel and 0.04 % to 0.08 % palladium
Grade 26-Unalloyed titanium plus 0.08 to 0.14 % ruthenium
Grade 26H-Unalloyed titanium plus 0.08 to 0.14 % ruthenium (Grade 26 with 58 ksi minimum UTS)
Grade 27-Unalloyed titanium plus 0.08 to 0.14 % ruthenium
Grade 28-Titanium alloy (3 % aluminum, 2.5 % vanadium plus 0.08–0.14 % ruthenium)
Grade 29-Titanium alloy (6 % aluminum, 4 % vanadium, extra low interstitial, ELI plus 0.08 to 0.14 % ruthenium)
Grade 30-Titanium alloy (0.3 % cobalt, 0.05 % palladium)
Grade 31-Titanium alloy (0.3 % cobalt, 0.05 % palladium)
Grade 32-Titanium alloy (5 % aluminum, 1 % tin, 1 % zirconium, 1 % vanadium, 0.8 % molybdenum)
Grade 33-Titanium alloy (0.4 % nickel, 0.015 % palladium, 0.025 % ruthenium, 0.15 % chromium)
Grade 34-Titanium alloy (0.4 % nickel, 0.015 % palladium, 0.025 % ruthenium, 0.15 % chromium)
Grade 35-Titanium alloy (4.5 % aluminum, 2 % molybdenum, 1.6 % vanadium, 0.5 % iron, 0.3 % silicon)
Grade 36-Titanium alloy (45 % niobium)
Grade 37-Titanium alloy (1.5 % aluminum), and
Grade 38-Titanium alloy (4 % aluminum, 2.5 % vanadium, 1.5 % iron).

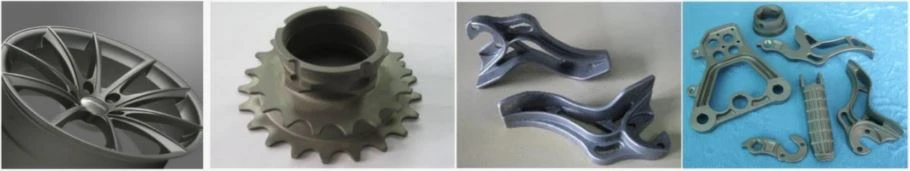

Examples of Titanium Casting Parts
Titanium Casting Pump Body
Titanium Casting Valve
Titanium Pipe Union
Titanium Pipe Fittings
Titanium Parts Broach Broadhead sku 1
Titanium Casting Titanium Impeller sku 1
Titanium Casting Titanium Turbo Impeller
Titanium Fastener Tapered Socket Head Screw
Titanium Flange
Titanium Bone Replacement
Titanium Bicycle Pedal Spindle Axles
Titanium Bicycle Quick Release qr-sku 1
Titanium Bicycle Quick Release qr-sku 2
Titanium Bicycle Seat Post
Titanium Bicycle Stem sku1
Titanium Broach Broadhead-sku2 (Oil Industry)
Titanium Bicycle Frame
Titanium Casting Parts Titanium Valve Body
