Titanium Pipe Fittings

Material:	C.P. Titanium & Titanium Alloy: Gr1, Gr2, Gr7, Gr9, and Gr12
Standard:	AMSE B16.9, AMSE SB-363/ASTM B363, DIN
Size:	1/2" to 24" NPS



Product Description

Titanium pipe fittings are essential components for high-performance piping systems in industries requiring corrosion resistance, high strength, and lightweight materials. Made from commercially pure (C.P.) titanium and titanium alloys (Grades 1, 2, 7, 9, and 12), these fittings are widely used in chemical processing, aerospace, marine, and medical applications. Compared to stainless steel, titanium fittings offer superior resistance to acids, chlorides, and extreme temperatures, making them ideal for harsh environments.



Features & Properties

✔️ Exceptional Corrosion Resistance – Titanium naturally forms an oxide layer, preventing corrosion from seawater, acids, and chemicals.
✔️ High Strength-to-Weight Ratio – Stronger than steel but nearly 45% lighter, reducing overall system weight.
✔️ Excellent Temperature Resistance – Performs well in high-temperature and cryogenic conditions.
✔️ Biocompatible & Non-Toxic – Safe for medical and food processing applications.
✔️ Long Service Life – Durable, low-maintenance material for extended operational use.



Product Specifications

Material Grades:

Grade 1: Pure titanium, highest ductility & corrosion resistance.

Grade 2: Pure titanium, excellent strength & weldability.

Grade 7: Grade 2 + Palladium for superior corrosion resistance.

Grade 9: Titanium-Aluminum-Vanadium alloy for higher strength.

Grade 12: Titanium-Nickel-Molybdenum alloy, better heat & corrosion resistance.

Size Range: 1/2" to 24" NPS

Wall Thickness: As per ASME & ASTM standards

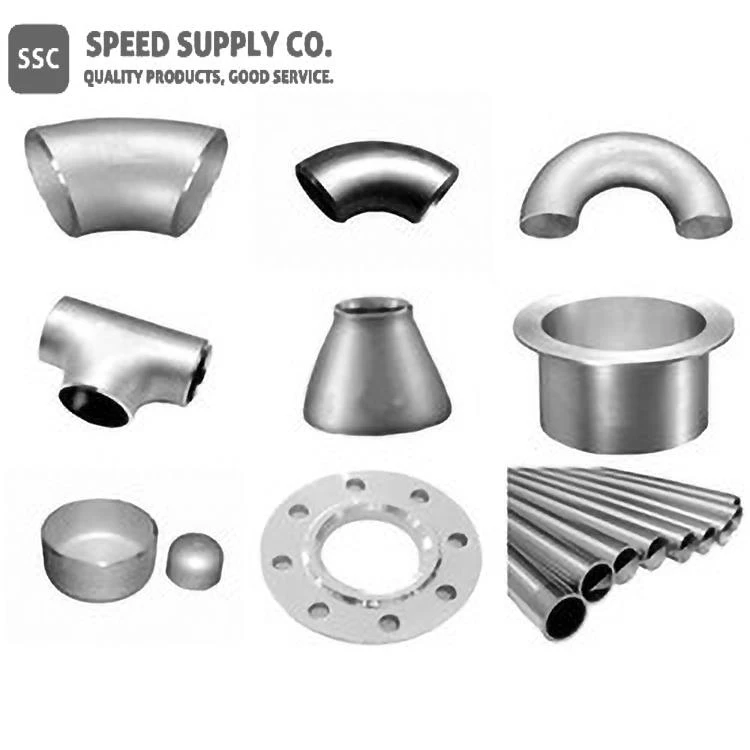

Types: Elbows, Tees, Reducers, Caps, Stub Ends



Product Standards

✔ ASME B16.9 – Factory-made wrought buttwelding fittings
✔ ASTM B363 / ASME SB-363 – Standard for seamless & welded titanium fittings
✔ DIN Standards – German standards for international compatibility



Product Forms

Seamless & Welded Pipe Fittings

Titanium Buttweld Fittings (Elbows, Tees, Reducers, Caps, Stub Ends)

Titanium Forged Fittings (Threaded, Socket Weld)



Production Method & Production Equipments

Production Method:

1️⃣ Titanium Melting & Alloying – Using vacuum arc remelting (VAR) or electron beam melting (EBM).
2️⃣ Casting & Forming – Hot forging or CNC machining for precision fittings.
3️⃣ Heat Treatment – Improves mechanical properties & removes residual stress.
4️⃣ Surface Treatment – Pickling, sandblasting, or polishing for better corrosion resistance.
5️⃣ Final Inspection & Testing – X-ray, ultrasonic, and hydrostatic testing for quality assurance.

Production Equipments:

Vacuum Arc Remelting (VAR) Furnace – Purifies titanium for high-quality alloys.

CNC Machining Centers – Ensures precision cutting & shaping.

Hydroforming Presses – Used for forming complex pipe fittings.

Nondestructive Testing (NDT) Equipment – Ensures flaw-free products.



Applications & Related Industries

🔹 Chemical Processing – Titanium's resistance to acids & chlorides ensures durability.
🔹 Aerospace & Defense – Used in aircraft fuel & hydraulic systems due to lightweight strength.
🔹 Marine & Shipbuilding – Excellent seawater corrosion resistance.
🔹 Medical & Food Processing – Biocompatible, making it ideal for implants & food-grade systems.
🔹 Power Plants & Energy – Withstands high temperatures in nuclear & geothermal applications.



Synonyms

Titanium Buttweld Fittings

Titanium Pipe Connectors

Titanium Flanges & Couplings



Health & Safety Information

🔹 Non-Toxic & Biocompatible – Safe for human contact & medical applications.
🔹 Corrosion-Resistant Coating – Prevents chemical reactions in high-risk environments.
🔹 Welding Precautions – Titanium requires argon shielding to prevent contamination.
🔹 Proper Handling Required – Store in a clean, dry area to prevent oxidation.



Why Choose Our Titanium Pipe Fittings?

✅ High-Purity Titanium: Manufactured with top-quality raw materials.
✅ Custom Fabrication Available: We provide fittings tailored to your specifications.
✅ Strict Quality Control: ASME, ASTM, and ISO-certified production standards.
✅ Fast Global Shipping: Efficient logistics for on-time delivery worldwide.



📩 Need a quote? Contact us today for bulk orders & custom fittings!



Specification for Titanium Pipe Fittings

Titanium Tee

Product	Titanium Butt Welding Short Branch Straight Tee	Titanium Butt Welding Long Branch Straight Tee	Titanium Butt Welding Reducing Outlet Tee	Threaded Tee
Size	1/2" to 24" NPS (MSS) Sch 10S and 40S	1/2" to 48" NPS (ASME) Sch 10S and Sch 40S 1/2" through 24" NPS (MSS) Sch 10S and Sch 40S	1/2" x 1/2" x 1/4" to 48" x 48" x 46" NPS Sch 10S and Sch 40S (ASME) 3/4" x 3/4" x 1/2" to 24" x 24" x 20" NPS Sch 10S and Sch 40S (MSS)	1/4" through 4" NPS
Shape

Titanium Stub End

Product	Titanium Lap Joint Stub End - Short Pattern	Titanium Lap Joint Stub End
Size	1/2" through 24" NPS (ANSI & MSS) Sch 10S and Sch 40S	l/2" through 24" NPS ANSI Sch1OS and Sch 40S
Shape

Titanium Reducer

Product	Titanium Concentric Reducer	Titanium Eccentric Reducer
Size	3/4" x 1/2" through 36" x 34" NPS Sch 10S and Sch 40S	3/4" x 1-1/2" through 36" x 34" NPS (ANSI) Sch 10S and Sch 40S 3/4" x 1/2" through 24" x 20" NPS (MSS) Sch 10S and Sch 40S
Shape

Titanium Elbow

Product	Titanium Elbow, Long Radius Butt-Welding 90°	Titanium Elbow, Short Radius Butt-Welding 90°	Titanium Elbow, Long Radius Butt-Welding 45°	Titanium Elbow, Threaded 90°	Titanium Elbow, Threaded 45°
Size	1/2" to 48" NPS Sch 10S and 40S	1" to24" NPS Sch 10S and 40S	1/2" to 48" NPS Sch 10S and 40S	1/4" to 4" NPS	1/4" to 4" NPS
Shape

Grades and Properities

Titanium Grade	Chemical Composition	Properties
Grade 1 R50250 Commercially pure	C 0.10 max Fe 0.20 max H 0.015 max N 0.03 max O 0.18 max Ti Remaining	MIN. TENSILE 35 KSI MIN. YIELD 25 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0.34-0.40
Grade 2 R50400 Commercially pure	C 0.10 max Fe 0.30 max H 0.015 max N 0.03 max O 0.25 max Ti Remaining	MIN. TENSILE 50 KSI MIN. YIELD 40 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0.34-0.10
Grade 5 R56400 Ti-6Al-4V	AI 5.5-6.75 max C 0.10 max Fe 0.40 max H 0.015 max N 0.05 max O 0.20 max V 3.5-4.5 Ti Remaining	MIN. TENSILE 130 KSI MIN. YIELD 120 KSI HARDNESS 16.4 TENSILE MODULUS 114 GPA POISSON'S RATION 0.30-0.33
Grade 7 R52400 Ti-0.15Pd	Pd 0.12-0.25 max C 0.10 max Fe 0.30 max H 0.015 max N 0.03 max O 0.25 max Ti Remaining	MIN. TENSILE 50 KSI MIN. YIELD 40 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0.37
Grade 9 R56320 Ti-3Al-2.5V	AI 2.5-3.5 C 0.05 max Fe 0.25 max H 0.013 max N 0.02 max O 0.12 max V 2.0-3.0 Ti Remaining	MIN. TENSILE 90 KSI MIN. YIELD 70 KSI HARDNESS 13.0 TENSILE MODULUS 107 GPA POISSON'S RATION 0.34
Grade 12 R53400 Ti-0.3Mo-0.8Ni	C 0.08 max Fe 0.30 max H 0.0135 max Mo 0.2-0.4 N 0.03 max O 0.25 max Ti Remaining	MIN. TENSILE 70 KSI MIN. YIELD 50 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0.28
