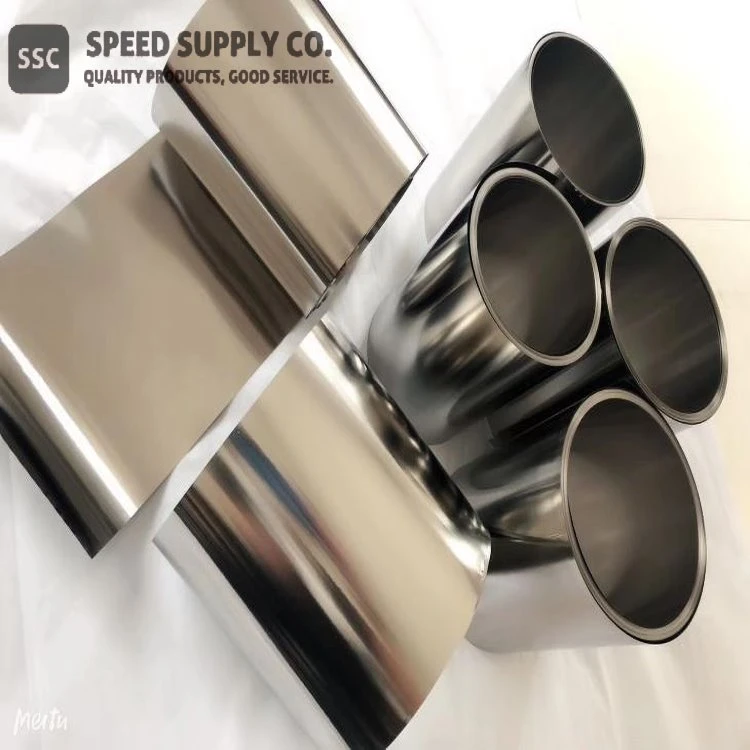

Titanium Foil

Material:	C.P. Titanium, Titanium Alloy
Standard:	ASTM B265
Process:	Hot Rolled, Cold Rolled
Shape:	Foil
Surface:	Cold rolling
Size:	Thickness: 0.02mm-0.09mm, Width: 50mm-200mm, Length: ≥500mm



Product Description

Titanium foil is an ultra-thin, lightweight, and highly corrosion-resistant material widely used in aerospace, medical, electronics, and chemical industries. Available in commercially pure (C.P.) titanium and titanium alloys, it offers exceptional strength, flexibility, and heat resistance. Due to its biocompatibility and non-toxicity, titanium foil is also a preferred material for medical implants and high-precision electronic components.



Features & Properties

✔ Ultra-Thin & Lightweight – High strength with minimal weight.
✔ Superior Corrosion Resistance – Resistant to acids, alkalis, and seawater.
✔ Excellent Heat & Oxidation Resistance – Stable at high temperatures.
✔ High Strength & Ductility – Easily formed into complex shapes.
✔ Non-Magnetic & Biocompatible – Ideal for medical and sensitive applications.
✔ Precision Cold Rolling – Ensures a smooth, high-quality surface.



Product Specifications

Material	Grade	Thickness	Width	Length	Surface Finish	Standard
C.P. Titanium	Gr1, Gr2, Gr3, Gr4	0.02mm – 0.09mm	50mm – 200mm	≥500mm	Cold Rolled, Smooth Finish	ASTM B265
Titanium Alloy	Gr5 (Ti-6Al-4V), Gr7, Gr9, Gr12	0.02mm – 0.09mm	50mm – 200mm	≥500mm	Cold Rolled, Smooth Finish	ASTM B265

(Custom sizes and alloys available upon request)



Product Standards

ASTM B265 – Standard for titanium and titanium alloy foils, sheets, and plates.

ASME SB265 – Engineering specifications for industrial and aerospace applications.

AMS Specifications – Available upon request.



Product Forms

✔ Titanium Strip Foil – Narrow-width foils for industrial & electronic applications.
✔ Perforated Titanium Foil – Custom perforations for filters & specialized uses.
✔ Rolled Titanium Foil – Supplied in coils or sheets for ease of handling.



Production Method & Production Equipments

Production Method:

Titanium Sponge Refining – Extracted from ores and refined for high purity.

Vacuum Arc Remelting (VAR) / Electron Beam Melting (EBM) – Produces ultra-pure titanium ingots.

Hot Rolling & Cold Rolling – Achieves thin, precise foil thickness.

Annealing & Heat Treatment – Improves ductility and mechanical properties.

Surface Treatment & Finishing – Cold rolling ensures a smooth, defect-free surface.

Quality Control & Testing – Ensures compliance with ASTM standards.

Production Equipments:

🔹 Vacuum Arc Remelting (VAR) Furnace
🔹 Electron Beam Melting (EBM) System
🔹 Hot & Cold Rolling Mills
🔹 Precision Cutting & Slitting Machines
🔹 Ultrasonic & X-ray Testing Systems



Applications & Related Industries

✔ Aerospace & Aviation – Lightweight structural components & heat shields.
✔ Medical & Biotech – Implantable devices, surgical instruments, and stents.
✔ Electronics & Batteries – Mobile devices, battery collectors, and heat sinks.
✔ Chemical Processing – Corrosion-resistant linings and flexible tubing.
✔ Marine & Offshore – Thin protective coatings for marine structures.
✔ Industrial & Manufacturing – Precision-machined components.



Interesting Facts

✅ Titanium foil is used in spacecraft & satellites due to its lightweight & heat resistance.
✅ It is widely used in fuel cells & battery applications for energy storage efficiency.
✅ Titanium foil-based medical implants are widely accepted due to their biocompatibility.



Synonyms

Titanium Strip

Titanium Thin Sheet

Titanium Rolling Foil

Aerospace Titanium Foil



Health & Safety Information

✔ Non-Toxic & Biocompatible – Safe for medical and food applications.
✔ Corrosion-Resistant – Does not react with acids, bases, or biological environments.
✔ Handling Precautions – Store in a dry, clean environment to maintain quality.



Why Choose Our Titanium Foils?

🔹 High-Quality & Precision Manufacturing – Meets global industry standards.
🔹 Custom Sizes & Grades Available – Tailored solutions for specialized applications.
🔹 Certified & Tested – Compliance with ASTM, aerospace, and medical standards.
🔹 Competitive Pricing & Fast Delivery – Reliable supply chain for global orders.



📩 Contact us today for pricing, bulk orders, or custom inquiries!

Grades and Standards

Material Grade	Standard specification
Commercially Pure	ASTM B 348 Grades 1,2,3,4 AWS A5.16 ERTi 1,2,3,4 AMS 4951 AMS 4921 ASTM F 67 Grades 1,2,3,4
Ti Alloy 6Al 4V	ASTM B 348 Grade 5 AWS A5.16 ERTi 5 AMS 4954
Titanium Alloy 6Al 4V ELI	ASTM F 136 AMS 4956 AWS A5.16 ERTi 5 ELI
Titanium Alloy Ti 0.2Pd	ASTM B 348 Grades 7 & 11 AWS A5.16 ERTi 7
Titanium Alloy Ti 0.3 Mo .8Ni	ASTM B 348 Grade 12 AWS A5.16 ERTi 12
Titanium Alloy 5Al 2.5Sn	AMS 4953 AWS A5.16 ERTi 6 ASTM B 348 Grade 6
Titanium Alloy 3Al 2.5V	ASTM B 348 Grade 9 AWS A5.16 ERTi 9
Titanium Alloy Ti 6Al 7Nb	ASTM F 1295

Titanium Physical Properties

Grade	Ultimate Tensile Strength Min.		Yield Strength		Elongation %	Reduction Area %	Condition
	KSI	MPa	KSI	MPa
1	35	240	20	138	24	30	As specified (shape)
2	50	345	40	275	20	30	As specified (shape)
3	64	450	55	380	18	30	As specified (shape)
4	80	550	70	483	15	25	As specified (shape)
5	130	895	120	828	10	25	As specified (shape)
6	115	792	110	758	10	25	Forged Bars
7	50	345	40	275	20	30	As specified (shape)
9	90	620	70	483	15	25	As specified (shape)
11	35	240	20	138	24	30	As specified (shape)
12	70	483	50	345	18	25	As specified (shape)
16	50	345	40	275	20	30	As specified (shape)
17	35	240	25	170	24	30	As specified (shape)
23	120	828	110	759	10	25	Beta-Annealed

Titanium Material Grades

C.P. Titanium

Grade 1

Grade 2

Grade 2H (Grade 2 with 58 ksi minimum UTS)

Grade 3

Grade 4

Titanium Alloy

Grade 5 (6 % Al, 4 % V)

Grade 7 (0.12 to 0.25 % Pd)

Grade 7H (0.12 to 0.25 % Pd) (Grade 7 with 58 ksi minimum UTS)

Grade 9 (3 % Al, 2.5 % V)

Grade 11 (0.12 to 0.25 % Pd)

Grade 12 (0.3 % Mo, 0.8 % Ni)

Grade 13 (0.5 % Ni, 0.05 % Ru)

Grade 14 (0.5 % Ni, 0.05 % Ru)

Grade 15 (0.5 % Ni, 0.05 % Ru)

Grade 16 (0.04 to 0.08 % Pd)

Grade 16H (0.04 to 0.08 % Pd) (Grade 16 with 58 ksi minimum UTS)

Grade 17 (0.04 to 0.08 % Pd)

Grade 18 (3 % Al, 2.5 % V, 0.04 to 0.08 % Pd)

Grade 19 (3 % Al, 8 % V, 6 % Cr, 4 % Zr, 4 % Mo)

Grade 20 (3 % Al, 8 % V, 6 % Cr, 4 % Zr, 4 % Mo, 0.04 %–0.08 % Pd)

Grade 21 (15 % Mo, 3 % Al, 2.7 % Nb, 0.25 % Si)

Grade 23 (6 % Al, 4 % V, with extra low interstitial elements, ELI)

Grade 24 (6 % Al, 4 % V, 0.04 % to 0.08 % Pd)

Grade 25 (6 % Al, 4 % V, 0.3 % to 0.8 % Ni and 0.04 % to 0.08 % Pd)

Grade 26 (0.08 to 0.14 % Pd)

Grade 26H (0.08 to 0.14 % Pd) (Grade 26 with 58 ksi minimum UTS)

Grade 27 (0.08 to 0.14 % Pd)

Grade 28 (3 % Al, 2.5 % V, 0.08–0.14 % Ru)

Grade 29 (6 % Al, 4 % V, ELI, plus 0.08 to 0.14 % Ru)

Grade 30 (0.3 % Co, 0.05 % Pd)

Grade 31 (0.3 % Co, 0.05 % Pd)

Grade 32 (5 % Al, 1 % tin, 1 % Zr, 1 % V, 0.8 % Mo)

Grade 33 (0.4 % Ni, 0.015 % Pd, 0.025 % Ru, 0.15 % Cr)

Grade 34 (0.4 % Ni, 0.015 % Pd, 0.025 % Ru, 0.15 % Cr)

Grade 35 (4.5 % Al, 2 % Mo, 1.6 % V, 0.5 % iron, 0.3 % Si)

Grade 36 (45 % Nb)

Grade 37 (1.5 % Al)

Grade 38 (4 % Al, 2.5 % V, 1.5 % Fe)
