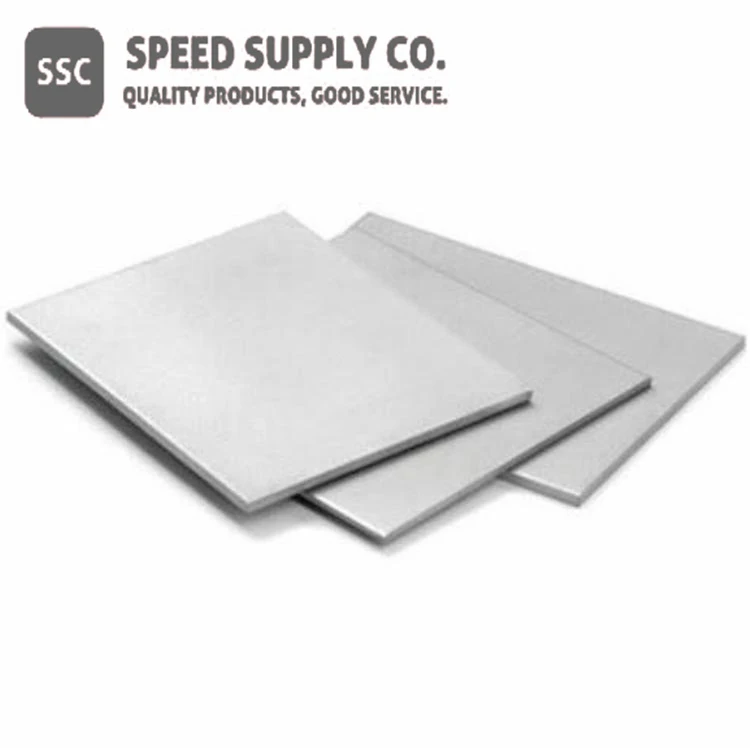

Tantalum Plate

Tantalum is a rare, grayish-blue metal that is resistant to corrosion and can withstand high temperatures. Tantalum plates are used in many industries because of their excellent properties.

Description

Tantalum plates are thin, flat sheets of tantalum metal that are used in a lot of different industrial applications. These plates are very resistant to corrosion, so they can be used in harsh environments. Tantalum plates are flexible and can be made into different shapes and sizes.

Features

Tantalum plates are ideal for a number of industrial applications. Tantalum plates have the following characteristics:

● High resistance to corrosion

● Excellent ductility

● High melting point

● Excellent thermal conductivity

● Low coefficient of thermal expansion

● Non-toxic and biocompatible

Grades

Tantalum plates come in different grades, each with its own special properties. The most common types of tantalum plate are:

● Pure tantalum

● Tantalum tungsten

● Tantalum niobium

Forms

Tantalum plates are available in different forms, including:

Hot-rolled plates:

● Thickness range: 0.125" - 1.50" (3.175 mm - 38.1 mm)

● Width range: 12" - 36" (304.8 mm - 914.4 mm)

● Length range: 24" - 96" (609.6 mm - 2438.4 mm)

Cold-rolled plates:

● Thickness range: 0.008" - 0.125" (0.2032 mm - 3.175 mm)

● Width range: 12" - 36" (304.8 mm - 914.4 mm)

● Length range: 24" - 96" (609.6 mm - 2438.4 mm)

Annealed plates:

● Thickness range: 0.008" - 0.125" (0.2032 mm - 3.175 mm)

● Width range: 12" - 36" (304.8 mm - 914.4 mm)

● Length range: 24" - 96" (609.6 mm - 2438.4 mm)

Stretched plates:

● Thickness range: 0.008" - 0.125" (0.2032 mm - 3.175 mm)

● Width range: 12" - 36" (304.8 mm - 914.4 mm)

● Length range: 24" - 96" (609.6 mm - 2438.4 mm)

Etched plates:

● Thickness range: 0.008" - 0.060" (0.2032 mm - 1.524 mm)

● Width range: 12" - 36" (304.8 mm - 914.4 mm)

● Length range: 24" - 96" (609.6 mm - 2438.4 mm)

Production Method

Tantalum plates are made by hot or cold rolling. Hot rolling is the process of heating a block or ingot of tantalum to high temperatures and then passing it through a series of rollers. This method is often used for thick plates. Cold rolling involves passing a tantalum sheet or strip through a series of rollers at room temperature to make it thinner. This process is usually used on thinner plates and can make the surface more smooth and flat. After the hot or cold rolling process, the tantalum plate may be further processed, such as annealing, to improve its ductility and reduce any remaining stresses. The annealing process involves heating the plate to a high temperature (around 1,100°C) in a vacuum or hydrogen atmosphere. Then, it cools down slowly. The finished product may also go through other finishing processes like etching or polishing to get a certain finish or texture.

Applications & Related Industries

Tantalum plates are used in many industries because of their excellent properties. Some important industries use tantalum plates like:

● Chemical processing: Tantalum plates are used for making chemicals because they can resist corrosion.

● Electronics: Tantalum plates are used in making capacitors and other electronic parts because they conduct electricity well.

● Aerospace: Tantalum plates are used in aerospace to make high-temperature alloys.

● Medical: Tantalum plates are used to make medical implants because they are biocompatible and non-toxic.

● Energy: Tantalum plates are used in the production of heat exchangers and other parts of nuclear reactor.

Health & Safety Information

Tantalum plates are safe to use in various applications because they are non-toxic and biocompatible. But like all metals, tantalum plates can be dangerous if you eat or breathe them in large amounts. When working with tantalum plates, it is important to take care of them and follow safety rules.

Our Advantages

As a company that makes tantalum plates, we have many advantages for our customers.

● High-quality tantalum plates that meet industry standards

● Competitive pricing

● Fast and reliable delivery

● Excellent customer service

● Customized solutions to meet specific customer needs

FAQs:

Q: Can we join tantalum plates?

A: You can join tantalum plates using different methods like TIG welding and electron beam welding.

Q: What thickness range of tantalum plates are there?

A: You can buy titanium plates in thicknesses from 0.5 millimeters to 10 millimeters.

Q: How much do tantalum plates cost?

A: Tantalum plates are more expensive than other metals because they are rare and have unique properties.

Q: What is the highest temperature that tantalum plates can withstand?

A: Tantalum sheets can handle temperatures up to 3000 degrees Celsius.

Q: What is the lead time for tantalum plate orders?

A: When you order tantalum plates, it depends on how big, how many, and what kind of plates you want. We try to deliver our products as quickly as possible while maintaining the highest quality standards.

Conclusion

Tantalum plates have different qualities that make them good for different industrial uses. We make high-quality tantalum plates and can customize them to fit customer needs. We guarantee fast and reliable delivery, reasonable prices, and great customer service. If you have any questions about tantalum plates, please let us know!
