Features
CAS Number: | 1314-61-0 |
Linear Formula: | Ta2O5 |
Purity: | 99.9%, 99.99%, 99.995% |
Particle Size: | -60 mesh, -200 mesh, -325 mesh or customized |
Lot Size: | 10kg, 50kg, 100kg |

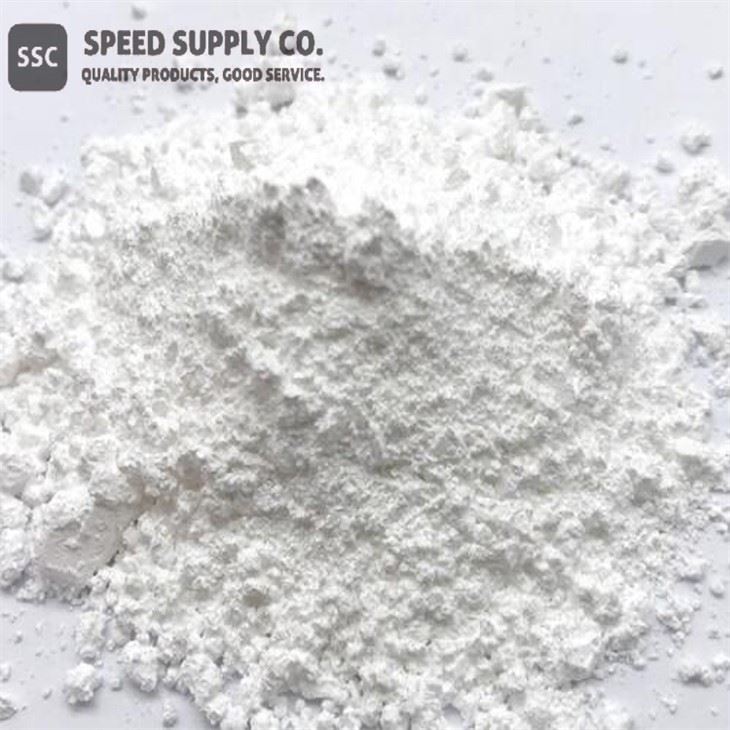

Tantalum Pentoxide Description
Tantalum oxide (Ta2O5) is also known as tantalum pentoxide. Tantalum pentoxide powder can be used in the production of lithium tantalate (LiTaO3) single crystals. These single crystals are cut into wafers and are used as a substrate for manufacturing surface acoustic wave filters. These SAW filters made of lithium tantalate (LiTaO3) can be used in mobile end devices such as smartphones, tablet PCs, GPS applications, and smart meters.
SSC can provide ultrapure tantalum pentoxides, which feature especially good flow characteristics due to their narrow grain size distribution. Ultra high purity, high purity, submicron and nanopowder forms may be considered. It can be used in the crystal industry. Our tantalum pentoxides also can be used in the production of sputtering targets, with which anti-reflective layers are applied to optical lenses using physical vapor deposition (PVD).
Tantalum Pentoxide Specification
Purity | Impurities in Oxides |
Ta2O5 > 99.9% (metals basis) | Nb < 0.005%, Fe < 0.005%, Si < 0.002% Ti < 0.002%, Ni < 0.002%, W < 0.003% |
Ta2O5 > 99.99% (metals basis) | Nb < 10 ppm, Fe < 10 ppm, Si < 10 ppm |
Ta2O5 > 99.995% (metals basis) | Nb < 2 ppm, Fe < 3 ppm, Si < 3 ppm |
Tantalum Pentoxide Applications and Related Industries
● Ferroelectric properties
● UV laser applications combined in multilayers with silicon dioxide
● Film capacitors, as gate insulators in large scale integrated circuits
● Chemical Manufacturing
● Research & Laboratory
Chemical Identifiers
Linear Formula | Ta2O5 |
MDL Number | MFCD00011254 |
EC No. | 215-238-2 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 518712 |
IUPAC Name | dioxotantaliooxy(dioxo)tantalum |
SMILES | O=[Ta](=O)O[Ta](=O)=O |
InchI Identifier | InChI=1S/5O.2Ta |
InchI Key | PBCFLUZVCVVTBY-UHFFFAOYSA-N |
Tantalum Pentoxide Properties (Theoretical)
Compound Formula | O5Ta2 |
Molecular Weight | 441.89 |
Appearance | White Powder |
Melting Point | 1872 °C |
Boiling Point | N/A |
Density | 8.2 g/mL at 25 °C |
Solubility in H2O | N/A |
Exact Mass | 441.870565 |
Monoisotopic Mass | 441.870565 |
