Features
CAS Number: | 12031-66-2 |
Linear Formula: | LiTaO3 |
Purity: | 99.9% |
Appearance: | Crystalline solid |
Diameter: | 25.4 mm (1") - 300 mm (11.8") |
Thickness: | 0.35-1mm |

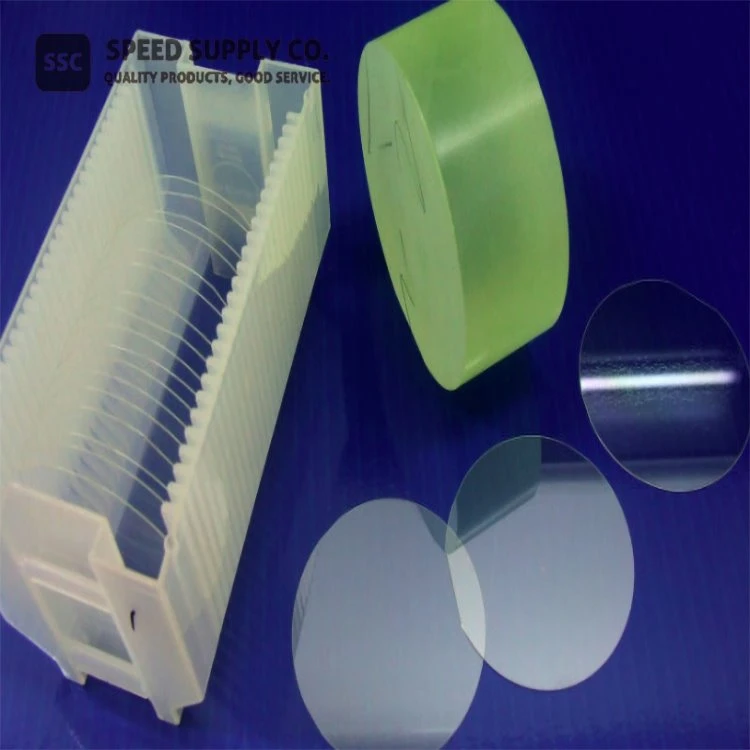

Lithium Tantalate Wafer Description
Lithium tantalate (LiTaO3), also called LN crystal, is a type of crystal that can do many things. Lithium tantalate wafer has both chemical and mechanical stability and it also has a high optical damage threshold. LiTaO3 wafers are good for SAW devices and optical applications.
SSC produces high purity single crystal lithium tantalate wafers for optoelectronics applications. Our standard wafer, sizes range from 25.4 mm (1 inch) to 300 mm (11.8 inches), can be produced in various thicknesses and orientations with polished or unpolished sides and can include dopants. SSC can produce most materials in high purity and ultra-high purity forms. We can also produce materials to customer specifications upon request, as well as custom compositions for commercial and research applications and new proprietary technologies.
Lithium Tantalate Wafer Specifications
Parameter | Wafer (Boule) | |
Diameter (mm) | 76.2 ± 0.3 | 100.0 ± 0.3 |
Axis Orientation | X, Y, Z, 36°Y, 42°Y | |
Thickness (mm) | 0.35-1mm | |
Ref. Flat Orientation | X, Y, 112.2°Y | |
Ref. Flat Width (mm) | 22.0 ± 2.0 | 32.0 ± 2.0 |
Front Side Polish | +:Mirror Polished (Ra≤8Å) | |
Back Side Lapping (µm) | 0.2-4µm | |
TTV (µm) | ≤10 | ≤10 |
PLTV (5×5mm; LTV < 1µm) | ≥97% | ≥95% |
Bow (µm) | ≤20 | ≤35 |
Edge Bevel | Edge Rounding | |
Poling | Complete | |
Curie Temperature (°C) | 605.0 ± 3.0°C | |
Lithium Tantalate Wafer Applications and Related Industries
● Interdigital transducers, EO, pyroelectric IR detectors, etc
● Substrate material for RF surface acoustic wave (SAW) filters
● Linear optics, motion detectors, and cell phones for their optical, piezoelectric, and pyroelectric properties
● Electronics
● Optical
● Laser
● Research & Laboratory
Chemical Identifiers
Linear Formula | LiTaO3 |
MDL Number | MFCD00016174 |
EC No. | 234-757-5 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 5148101 |
IUPAC Name | lithium; oxido(dioxo)tantalum |
SMILES | [Li+].[O-][Ta](=O)=O |
InchI Identifier | InChI=1S/Li.3 O.Ta/q+1;;;-1; |
InchI Key | CIFJATMCNLSYQG-UHFFFAOYSA-N |
Lithium Tantalate Wafer Properties (Theoretical)
Compound Formula | LiO3Ta |
Molecular Weight | 235.89 |
Appearance | Crystalline solid |
Melting Point | 1650 °C |
Boiling Point | N/A |
Density | 7.46 g/cm3 |
Solubility in H2O | N/A |
Exact Mass | 235.948744 |
Monoisotopic Mass | 235.948744 |
Lithium Tantalate Wafer Health & Safety Information
Signal Word | Warning |
Hazard Statements | H302-H312-H332 |
Hazard Codes | Xn |
Risk Codes | 20/21/22 |
Safety Statements | 36 |
RTECS Number | WW5470000 |
Transport Information | N/A |
WGK Germany | 3 |
