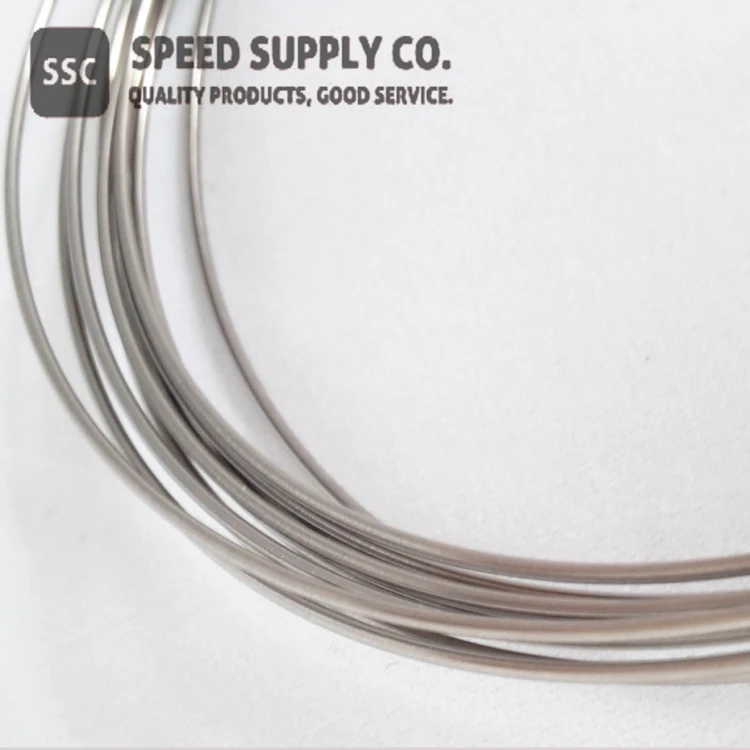

Niobium Wires

Niobium wires are made of pure niobium metal and are known for their high strength, low ductility, and good corrosion resistance. Niobium wires are used in places that need high temperatures and pressure, like in nuclear reactors, aerospace and defense industries, and making semiconductors.

Features:

●High strength and low ductility

●Excellent corrosion resistance

●Good electrical conductivity

●High melting point of 2,468°C (4,474°F)

●Low thermal expansion coefficient

●Non-magnetic

Grades:

Niobium wires are available in a range of grades, including commercial grade (99.9% purity) and high purity grade (99.99% purity).

Forms:

Niobium wires come in different shapes, such as round, square, or rectangular. They also come in different sizes and lengths, depending on the job they are used for.

Round Niobium Wires:

●Diameter: 0.05 mm to 3.0 mm (0.002 in to 0.118 in)

●Tolerance: ± 0.001 mm to ± 0.05 mm (± 0.00004 in to ± 0.002 in)

●Purity: 99.95% to 99.999%

●Condition: Annealed or unannealed

Square Niobium Wires:

●Size: 0.8 mm to 6.0 mm (0.031 in to 0.236 in)

●Tolerance: ± 0.05 mm to ± 0.1 mm (± 0.002 in to ± 0.004 in)

●Purity: 99.95% to 99.999%

●Condition: Annealed or unannealed

Rectangular Niobium Wires:

●Thickness: 0.3 mm to 3.0 mm (0.012 in to 0.118 in)

●Width: 0.5 mm to 6.0 mm (0.02 in to 0.236 in)

●Tolerance: ± 0.01 mm to ± 0.1 mm (± 0.0004 in to ± 0.004 in)

●Purity: 99.95% to 99.999%

●Condition: Annealed or unannealed

Production Method:

To make niobium wires, you need to run a niobium rod through a series of dies to make it smaller. The wire is then cleaned, annealed, and polished to remove any impurities or defects.

Applications & Related Industries:

Niobium wires are used in a variety of industries, including:

●Aerospace and defense: Niobium wires are used in jet engine parts, missile systems, and rocket nozzles.

●Nuclear energy: Nuclear reactors use niobium wires as cladding material and fuel rods.

●Semiconductor manufacturing: Niobium wires are used to make high-speed electronic parts.

●Medical equipment: Niobium wires are used in pacemakers and other medical devices because they are biocompatible and can resist corrosion.

Health & Safety Information:

Niobium wires are generally considered safe to use and handle. But metals can hurt if handled incorrectly. When handling niobium wires, it's important to be safe by wearing protective gloves and eye protection.

Our Advantages:

●High-quality niobium wires with consistent performance and reliability

●Customizable sizes and shapes to meet specific application requirements

●Competitive pricing and fast turnaround times

●Excellent customer service and technical support

FAQs:

Q: What is the maximum temperature that niobium wires can go?

A: Niobium wires have a high melting point of 2,468°C (4,474°F)

Q: Can niobium wires be used in a corrosive environment?

A: Niobium wires are known for their excellent corrosion resistance and can be used in a wide range of environments.

Q: What's the difference between cheap and really good niobium wires?

A: Commercial grade niobium wire is 99.9% pure, while high purity grade niobium wire is 99.99% pure. Niobium wires are more expensive, but they are necessary for certain high-tech applications that need very pure materials.

Q: Are niobium wires suitable for use in medical devices?

A: Yes, niobium wires are biocompatible and have excellent corrosion resistance, making them suitable for use in medical devices such as pacemakers and implantable sensors.
