PRODUCTS
Features
|
Linear Formula: |
NbZr |
|
Standard: |
ASTM B394 |
|
Purity: |
99.9%, 99.95%, 99.99% |
|
Size: |
Tube & Pipe: OD 1.0-100mm, WT 0.2-5.0mm, L 200-3000mm Capillary: OD 0.2-8.0mm, WT 0.015-0.5mm, Length Customized |
|
Surface: |
Polished |
|
Material Grades: |
R4251 (Nb-1Zr) Reactor Grade R4261 (Nb-1Zr) Commercial Grade |
Product Description

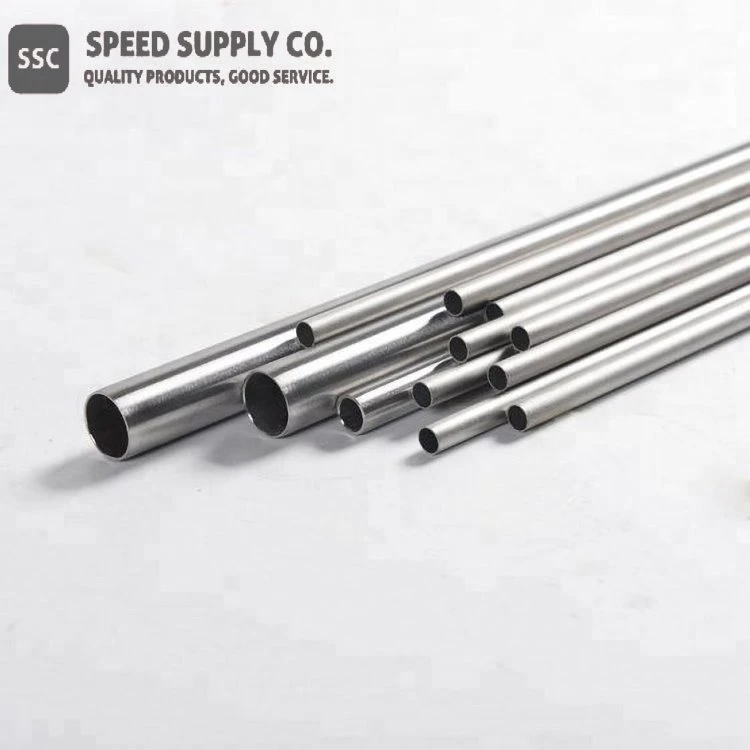

Niobium Zirconium Alloy Tube and Pipe are advanced high-performance materials offering excellent strength, resistance to corrosion, and durability under extreme conditions. Combining niobium's high-temperature stability and zirconium's exceptional resistance to corrosion, these tubes and pipes are ideal for industries such as aerospace, nuclear energy, chemical processing, and more.
These alloy tubes and pipes are commonly used in applications requiring high-performance materials, such as reactors, heat exchangers, and even medical implants. Their unique properties make them well-suited to withstand harsh chemical environments and high temperatures, ensuring a long lifespan and high reliability in challenging conditions. Custom sizes and configurations are available based on specific requirements.
Features and Properties
High-Temperature Resistance: Excellent performance in high-temperature environments without degradation.
Corrosion Resistance: Outstanding resistance to corrosion in acids, alkalis, and other reactive chemicals.
Superior Strength-to-Weight Ratio: Offers a balance of high strength and low weight, making them ideal for aerospace and reactor applications.
Excellent Formability: Can be easily machined into complex shapes for custom applications.
Non-Toxic and Biocompatible: Suitable for use in medical applications due to their safety and compatibility with human tissues.
Product Specifications
Composition: 90-97% Niobium, 3-10% Zirconium
Surface Finish: Bright, matte, or custom finishes as needed.
Product Standards
ASTM B394: Standard Specification for Niobium and Niobium Alloy Seamless and Welded Tubes.
ISO 9001: Compliance with quality management standards.
RoHS: Compliance with environmental safety standards, free of hazardous substances.
Product Forms
Standard Tubes: Perfect for applications requiring consistent, cylindrical shapes.
Custom Pipe Shapes: Tailored designs for unique or complex projects requiring specific dimensions and features.
Production Method and Production Equipments
Production Methods:
Vacuum Arc Melting: Used to create high-purity alloy material.
Extrusion: Forming tubes and pipes to precise dimensions.
Cold Rolling: To adjust the thickness of the tube and pipe to the desired level.
Annealing: For stress-relief and to enhance material ductility.
Production Equipments:
Vacuum Induction Furnace: To achieve uniform alloy composition and purity.
Extrusion Press: To shape the alloy into tubes and pipes.
Hydraulic Press: For forming and shaping pipes.
Cold Rolling Mill: To fine-tune tube thickness.
Applications and Related Industries
Aerospace: Used in components subjected to high stresses and high temperatures.
Nuclear Power: Extensively used in nuclear reactor systems due to their resistance to corrosion and high temperatures.
Chemical Processing: In reactors, heat exchangers, and other equipment exposed to aggressive chemicals.
Medical: Employed in medical devices and implants due to their biocompatibility.
Interesting Facts
Resistance to Neutron Radiation: Niobium zirconium alloys are particularly resistant to the effects of neutron radiation, making them ideal for use in nuclear reactors.
Space Exploration: These alloys are used in high-performance aerospace applications, including satellite components and space vehicle engines.
Long-Lasting Durability: Niobium zirconium alloy tubes and pipes have an incredibly long lifespan in environments exposed to high temperatures and chemical corrosion.
Synonyms
Niobium Zirconium Alloy Tubing
Nb-Zr Alloy Pipe
Niobium Zirconium Pipe and Tube
Health & Safety Information
Handling: Wear gloves, safety goggles, and dust masks when handling and machining the alloy to prevent exposure to fine particles or fumes.
Storage: Store in a dry environment to prevent oxidation or surface degradation.
Disposal: Recycle through authorized recycling centers in accordance with local environmental regulations.
Safety Precautions: Adequate ventilation is required when machining or welding to avoid inhaling fumes or dust generated during the process.
Why Choose Us for Niobium Zirconium Alloy Tube and Pipe?
Premium Quality: We manufacture high-purity niobium zirconium alloy tubes and pipes that meet industry standards.
Customization: We offer flexible sizing, wall thickness, and surface finish options tailored to your specific needs.
Global Reach: With worldwide shipping, we ensure your orders arrive on time, wherever you are.
Expert Support: Our experienced technical team offers valuable insights to help you select the best alloy materials for your project.
Contact us now for a quote or to discuss your requirements for Niobium Zirconium Alloy Tubes and Pipes!
Chemical Composition of Niobium Zirconium Alloy Tube and Pipe
|
Elements % |
R04251 |
R04261 |
|
Nb |
98.6 - 99.2 |
98.1 - 99.2 |
|
Zr |
0.8 - 1.2 |
0.8 - 1.2 |
|
Ta |
0 - 0.1 |
0 - 0.5 |
|
W |
0 - 0.030 |
0 - 0.050 |
|
Ti |
0 - 0.020 |
0 - 0.050 |
|
Hf |
0 - 0.020 |
0 - 0.025 |
|
O |
0 - 0.015 |
0 - 0.020 |
|
C |
0 - 0.010 |
0 - 0.020 |
|
Mo |
0 - 0.010 |
0 - 0.010 |
|
N |
0 - 0.010 |
0 - 0.010 |
|
Si |
0 - 0.0050 |
0 - 0.010 |
|
Ni |
0 - 0.0050 |
0 - 0.0050 |
|
Fe |
0 - 0.0050 |
0 - 0.0050 |
|
H |
0 - 0.0015 |
0 - 0.0015 |
Chemical Identifiers
|
Linear Formula |
NbZr |
|
MDL Number |
N/A |
|
EC No. |
N/A |
|
Pubchem CID |
71355178 |
|
IUPAC Name |
niobium; zirconium |
|
SMILES |
[Zr].[Nb] |
|
InchI Identifier |
InChI=1S/Nb.Zr |
|
InchI Key |
GFUGMBIZUXZOAF-UHFFFAOYSA-N |
Niobium Zirconium Alloy Properties (Theoretical)
|
Compound Formula |
NbZr |
|
Appearance |
Metallic solid in various forms tube, sheet/plate, bar, foil, wire, rod, sputtering target |
|
Melting Point |
2399 °C |
|
Boiling Point |
N/A |
|
Density |
8.59 g/cm3 |
|
Solubility in H2O |
N/A |
|
Tensile Strength |
330-620 MPa |
|
Vickers Hardness |
65-140 |
|
Monoisotopic Mass |
182.811 g/mol |
