Features
|
Linear Formula: |
NbZr |
|
Standard: |
ASTM B393 |
|
Purity: |
99.9%, 99.95%, 99.99% |
|
Size: |
Thickness 0.1-10 mm Width 30-1000 mm Length 50-200 |
|
Surface: |
Polished |
|
Material Grades: |
R4251 (Nb-1Zr) Reactor Grade R4261 (Nb-1Zr) Commercial Grade |
Product Description

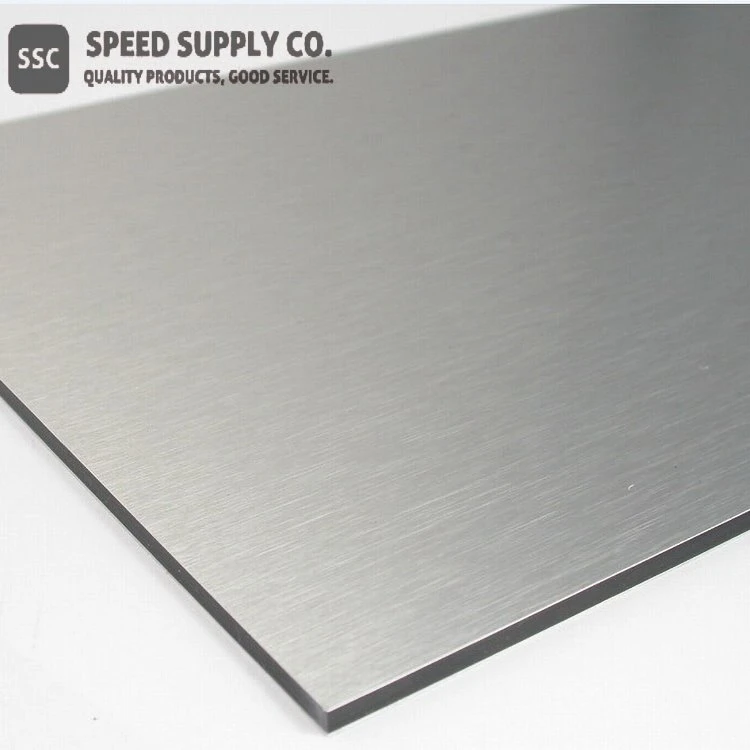

Niobium Zirconium Alloy Sheet and Board are advanced materials offering an ideal combination of high strength, corrosion resistance, and thermal stability. This alloy is highly regarded for its suitability in high-performance applications across industries such as aerospace, nuclear power, and chemical processing. With niobium's exceptional high-temperature stability and zirconium's resistance to corrosion, these sheets and boards provide unparalleled reliability in critical applications.
Due to their remarkable properties, these alloy sheets and boards are often used in the construction of reactor cores, aerospace components, and various high-tech devices. Custom sizes and thicknesses can be provided based on specific industry needs, ensuring flexibility and precision.
Features and Properties
Corrosion Resistance: Excellent performance in both oxidizing and reducing environments.
High-Temperature Strength: Withstands extreme temperatures without losing structural integrity.
Superior Ductility: Can be easily shaped and processed without compromising material properties.
High-Performance Material: Suitable for use in reactors, aerospace, and chemical applications.
Biocompatibility: Safe for use in medical applications due to its non-toxic nature.
Product Specifications
Composition: 90-97% Niobium, 3-10% Zirconium.
Surface Finish: Matte, polished, or custom finishes based on requirements.
Product Standards
ASTM B393: Standard Specification for Niobium and Niobium Alloy Strip, Sheet, and Plate.
ISO 9001: Compliance with quality management systems.
RoHS: Free from hazardous substances.
Product Forms
Standard Sheets: Ideal for general applications requiring flat, even surfaces.
Custom Shaped Boards: Tailored for specific designs and complex industrial needs.
Production Method and Production Equipments
Production Methods:
Vacuum Arc Melting: Used for producing high-purity alloys.
Rolling: For reducing thickness to sheet and board dimensions.
Annealing: Performed to relieve internal stresses and enhance ductility.
Production Equipments:
Vacuum Furnaces: For alloy formation and purification.
Rolling Mills: For processing sheets and boards to desired thickness.
Laser Cutting Machines: For precision cutting to specified shapes.
Applications and Related Industries
Aerospace: Used in the construction of heat shields and aerospace components.
Nuclear Power: As cladding materials in nuclear reactors for improved safety and longevity.
Chemical Processing: Employed in reactors, tanks, and piping systems exposed to aggressive chemicals.
Medical Devices: Safe for implantable medical devices due to its biocompatibility.
Interesting Facts
Nuclear Applications: Niobium zirconium alloys are extensively used in nuclear reactors for their high resistance to neutron bombardment and corrosion.
Aerospace Innovation: These materials were integral to the development of heat-resistant components used in the space industry.
Long Lifespan: The combination of niobium and zirconium provides an alloy that lasts much longer than other materials in extreme environments.
Synonyms
Niobium Zirconium Alloy Plate
Nb-Zr Alloy Sheet
Niobium Zirconium Sheet
Health & Safety Information
Handling: Wear gloves, safety goggles, and a dust mask when cutting, grinding, or machining this alloy to prevent inhalation of dust or particles.
Storage: Store in a dry, controlled environment to prevent corrosion or surface degradation.
Disposal: Recycle through authorized channels in accordance with local environmental regulations.
Safety Precautions: Ensure adequate ventilation during machining or welding to avoid inhaling fumes or particles.
Why Choose Us for Niobium Zirconium Alloy Sheet and Board?
High Purity: Our products are manufactured with strict quality controls to ensure consistent high-quality alloys.
Custom Solutions: We provide tailored sizes, thicknesses, and finishes to meet your specific requirements.
Efficient Global Supply: Fast, reliable, and worldwide shipping to keep your operations running smoothly.
Experienced Support: With years of expertise in niobium and zirconium alloys, we provide unparalleled technical support for your business needs.
Contact us today to discuss your needs for Niobium Zirconium Alloy Sheets and Boards and get a custom quote tailored to your specifications!
Chemical Composition of Niobium Zirconium Alloy Sheet and Board
|
Elements % |
R04251 |
R04261 |
|
Nb |
98.6 - 99.2 |
98.1 - 99.2 |
|
Zr |
0.8 - 1.2 |
0.8 - 1.2 |
|
Ta |
0 - 0.1 |
0 - 0.5 |
|
W |
0 - 0.030 |
0 - 0.050 |
|
Ti |
0 - 0.020 |
0 - 0.050 |
|
Hf |
0 - 0.020 |
0 - 0.025 |
|
O |
0 - 0.015 |
0 - 0.020 |
|
C |
0 - 0.010 |
0 - 0.020 |
|
Mo |
0 - 0.010 |
0 - 0.010 |
|
N |
0 - 0.010 |
0 - 0.010 |
|
Si |
0 - 0.0050 |
0 - 0.010 |
|
Ni |
0 - 0.0050 |
0 - 0.0050 |
|
Fe |
0 - 0.0050 |
0 - 0.0050 |
|
H |
0 - 0.0015 |
0 - 0.0015 |
Mechanical Properties of Niobium Zirconium Alloy Sheet and Board
|
Grade |
Ultimate Tensile Strength, min, psi (MPa) |
Yield Strength (0.2 % offset), min, psi (MPa) |
Elongation in 1-in. (25.4- mm) gage length, min, % |
|
|
0.010 in. or Greater |
Less Than 0.010 in. |
|||
|
Types 3 and 4 |
28 000 (195) |
18 000 (125) |
20 |
15 |
Chemical Identifiers
|
Linear Formula |
NbZr |
|
MDL Number |
N/A |
|
EC No. |
N/A |
|
Pubchem CID |
71355178 |
|
IUPAC Name |
niobium; zirconium |
|
SMILES |
[Zr].[Nb] |
|
InchI Identifier |
InChI=1S/Nb.Zr |
|
InchI Key |
GFUGMBIZUXZOAF-UHFFFAOYSA-N |
Niobium Zirconium Alloy Properties (Theoretical)
|
Compound Formula |
NbZr |
|
Appearance |
Metallic solid in various forms tube, sheet/plate, bar, foil, wire, rod, sputtering target |
|
Melting Point |
2399 °C |
|
Boiling Point |
N/A |
|
Density |
8.59 g/cm3 |
|
Solubility in H2O |
N/A |
|
Tensile Strength |
330-620 MPa |
|
Vickers Hardness |
65-140 |
|
Monoisotopic Mass |
182.811 g/mol |
