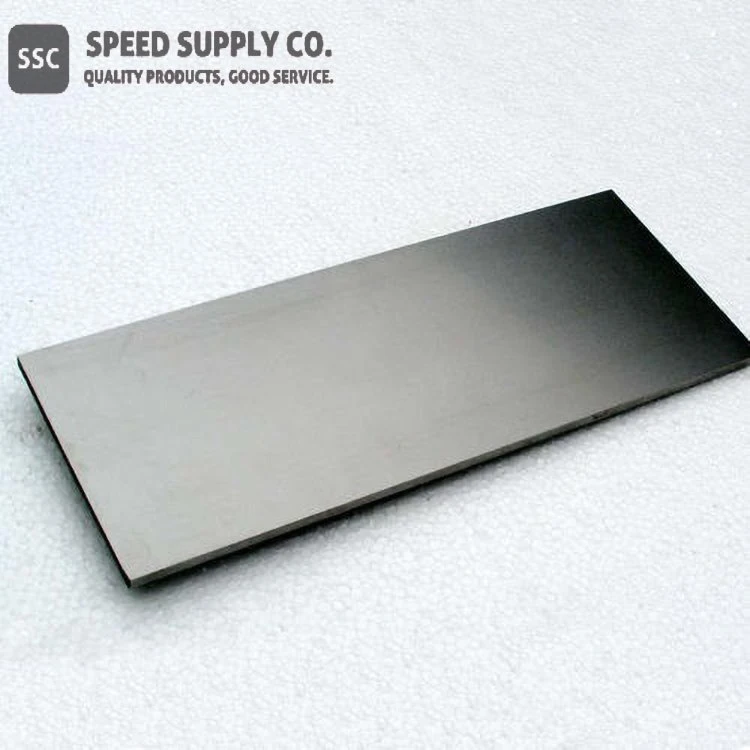

Molybdenum Hafnium Carbon Alloy

Linear Formula: Mo-Hf-C

Send Inquiry

Add To Inquiry

Features

Linear Formula:	Mo-Hf-C
Appearance:	Silvery
Shape:	Sheet, Plate, Rod, Bar or Customized

Molybdenum Hafnium Carbon Alloy Description

Molybdenum hafnium carbide (or carbon) alloy is a type of metal that has molybdenum and hafnium carbide in it. It has 0.8-1.4% hafnium and 0.05-0.15% carbon. MHC is a strong metal that conducts heat well and doesn't move easily. It doesn't expand when heated and has a high melting point. These properties make it a good choice for metal forming, brass and copper alloy extrusion, and other high-temperature mechanical applications. Available forms include rod, bar, sheet, plate, billet, disc, and other shapes by request. Materials can be made in standard and customized sizes. Please ask for a price quote using the form above.

We produce a wide range of molybdenum alloy mill products using powder metallurgy (PM) This process lets users choose different materials to meet their specific needs. You can make Mo alloy mill products by forging billets, bars, rods, sheets, plates, and foil using either process. All forms of molybdenum are the same size as pure molybdenum, except for thin foil.

Molybdenum Hafnium Carbon Alloy Specification

Chemical Composition

Element	Content (%)
Molybdenum, Mo	≥98.43
Hafnium, Hf	0.80-1.4
Carbon, C	0.050-0.15
Iron, Fe	≤0.010
Nickel, Ni	≤0.0050
Silicon, Si	≤0.0050

Mechanical Properties

Properties	Metric	Imperial
Tensile strength (mid-radius)	≥689 MPa	≥100 ksi
Yield strength (mid-radius)	≥586 MPa	≥85 ksi
Elongation at Break (mid-radius)	≥3%	≥3%
Hardness, Vickers	≤34	≤34
