Features
|
Linear Formula: |
W-Ni-Cu, W-Ni-Fe |
|
Material: |
W-90% Ni-6% Cu-4%, W-92.5% Ni-4.5% Cu-3%, W-95% Ni-3.5% Cu-1.5% W-90% Ni-7% Fe-3%, W-92.5% Ni-5.25% Fe-2.25%, W-95% Ni-3.5% Fe-1.5%, W-97% Ni-2.1% Fe-0.9% |
|
Standard: |
ASTM B777, MIL-T-21014 |
|
Surface: |
Finish turning, Milling, Grinding |
|
Size: |
Per drawings |
Product Description
Tungsten Alloy Bucking Bars are high-density tools used in aviation, aerospace, automotive, and heavy machinery industries to absorb impact and reduce vibration when driving rivets or performing hammering tasks. Their high-density composition (up to 18.5 g/cm³) provides superior impact absorption while minimizing operator fatigue and reducing repetitive stress injuries.
With an optimized W-Ni-Cu or W-Ni-Fe composition, these bucking bars provide excellent strength, wear resistance, and vibration reduction, making them essential for precision riveting applications.
Features & Properties
✔ High Density – Up to 18.5 g/cm³, reducing rebound & vibration
✔ Vibration Dampening – Minimizes impact stress on hands & wrists
✔ Wear & Corrosion Resistance – Durable for long-term use
✔ Non-Magnetic (W-Ni-Cu Alloy) – Ideal for MRI-safe environments
✔ Customizable Shapes & Sizes – Manufactured to customer specifications
Material Specifications
| Alloy Type | Tungsten (W) % | Nickel (Ni) % | Copper (Cu) % | Iron (Fe) % | Density (g/cm³) |
|---|---|---|---|---|---|
| W-90Ni-6Cu-4 | 90 | 6 | 4 | - | 17.0 – 17.5 |
| W-92.5Ni-4.5Cu-3 | 92.5 | 4.5 | 3 | - | 17.5 – 18.0 |
| W-95Ni-3.5Cu-1.5 | 95 | 3.5 | 1.5 | - | 18.0 – 18.5 |
| W-90Ni-7Fe-3 | 90 | 7 | - | 3 | 17.0 – 17.5 |
| W-92.5Ni-5.25Fe-2.25 | 92.5 | 5.25 | - | 2.25 | 17.5 – 18.0 |
| W-95Ni-3.5Fe-1.5 | 95 | 3.5 | - | 1.5 | 18.0 – 18.5 |
| W-97Ni-2.1Fe-0.9 | 97 | 2.1 | - | 0.9 | 18.5 |
Product Standards
🔹 ASTM B777 – Tungsten Heavy Alloy Standards
🔹 MIL-T-21014 – U.S. Military Tungsten Alloy Standard
Product Forms

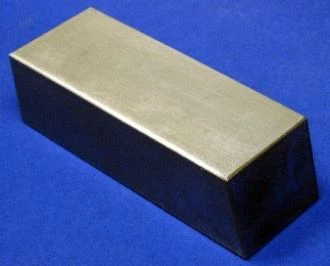

✔ Rectangular Blocks – Standard sizes for riveting applications
✔ Cylindrical Bars – Used in confined space operations
✔ Custom Shapes – Manufactured to meet specialized tooling needs
Production Method & Production Equipments
Production Method
Powder Blending – High-purity W, Ni, Cu, & Fe powders mixed
Compaction & Sintering – High-pressure shaping & vacuum sintering
Precision Machining – CNC-machined to tight tolerances
Surface Finishing – Polishing & protective coating applied
Production Equipments
Vacuum Sintering Furnace – Ensures high-density alloy production
CNC Machining Centers – Custom precision cutting & shaping
Forging & Grinding Machines – Strengthens & enhances durability
Applications & Related Industries
🔹 Aerospace & Aviation – Reduces rebound & operator fatigue in riveting
🔹 Automotive Manufacturing – Used for precision metal joining
🔹 Heavy Machinery – Ensures high-efficiency impact absorption
🔹 Medical Industry – Non-magnetic versions (W-Ni-Cu) for MRI environments
🔹 Naval & Defense – Used in shipbuilding & military equipment assembly
Synonyms
High-Density Tungsten Bucking Bar
Tungsten Heavy Alloy Impact Tool
Vibration-Dampening Tungsten Rivet Bar
W-Ni-Cu/W-Ni-Fe Bucking Bar
Health & Safety Information
⚠ Proper Handling Required – Due to its high density, handle with care
⚠ Use Safety Gear – Gloves & eye protection recommended during use
⚠ Storage & Maintenance – Store in a dry, controlled environment
Why Choose Our Tungsten Alloy Bucking Bars?
✅ High-Quality Materials – Manufactured from ASTM & MIL-T certified alloys
✅ Superior Vibration Reduction – Protects workers from stress injuries
✅ Customizable Designs – Available in standard & specialized shapes
✅ Long-Lasting Durability – Wear & corrosion-resistant for extended use
Order Tungsten Alloy Bucking Bars Today!
Looking for high-density tungsten bucking bars for industrial or aerospace applications? Contact us for custom orders, specifications & bulk pricing! 🚀
Tungsten Alloy Bucking Bar Specification
|
Picture & Shape |
Dimensions |
Weight |
|
|
4" x 1"x 0.625" |
1.57 lbs |
|
|
4" x 0.75" x 0.625" |
1.21 lbs |
|
|
2" x 1.5" x 0.625" |
1.20 lbs |
|
|
2" x 1.5" x 0.75" |
1.28 lbs |
|
|
2" x 1.5" x 0.75" |
5.55lbs |
|
|
2.5" x 1.25" x 1" |
1.59 lbs |
|
|
6" x 1.5" x 0.75" |
2.73lbs |
|
|
6" x 1.5" x 1.5" |
5.90lbs |
|
|
7.1" x 1.625" x 1.625" |
3.84lbs |
|
|
2.5" x 1.25" x 1" |
1.70lbs |
|
|
2.5" x 0.625" x 0.625" |
0.61lbs |
|
|
4" x 1" x 0.625" |
1.53lbs |
|
|
4" x 0.75" x 0.625" |
1.19lbs |
|
|
4" x 1" x 1" |
1.92lbs |
|
|
2" x 1.5" x 1" |
1.74lbs |
|
|
7.5" x 1" x 0.5" |
2.11lbs |
|
|
3.75" x 1.5" x 1.375" |
2.52lbs |
|
|
4" x 1" x 0.625" |
1.44lbs |
|
|
6" x 1" x 0.5" |
1.92lbs |
|
|
6" x 2.25" x 0.75" |
2.62lbs |
|
|
4.00" x 1.75" x 1.25" |
2.81lbs |
|
|
6" x 2.25" x 0.625" |
2.34lbs |
|
|
2.438" x 1.25" x 1.5" |
2.19lbs |
|
|
4" x 1.625" x 0.938" |
2.93lbs |
|
|
4" x 1.5" x 0.75" |
1.59lbs |
|
|
6" x 1.5" x 0.5" |
2.26lbs |
|
|
4" x 2" x 1" |
2.63lbs |
|
|
8" x 1.06" x 0.75" |
2.58lbs |
|
|
11" x 2.75" x 1" |
7.96lbs |
|
|
4" x 1" x 0.625" |
1.55lbs |
|
|
3" x 1.25" x 1.25" |
2.95lbs |
|
|
3.10" x 1" x 1" |
1.95lbs |
|
|
5" x 1.5" x 1.5" |
5.46lbs |
|
|
6" x 0.75" x 0.375" |
1.06lbs |
|
|
3.75" x 0.75" x 0.313" |
0.54lbs |
|
|
3.75" x 1.875" x 1" |
2.90lbs |
|
|
4.10" x 1.8" x 8.7" |
3.25lbs |
