PRODUCTS
Features
Linear Formula: | Ta-W |
Standard: | ASTM B365; ASTM F560 |
Purity: | ≥99.9% or 99.95% |
Size: | Diameter: 4~120mm Length: 2000mm Max |
Material Grades: | R05255 (Ta-10W), tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace of vacuum-arc melt, or both. R05252 (Ta-2.5W), tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both. |

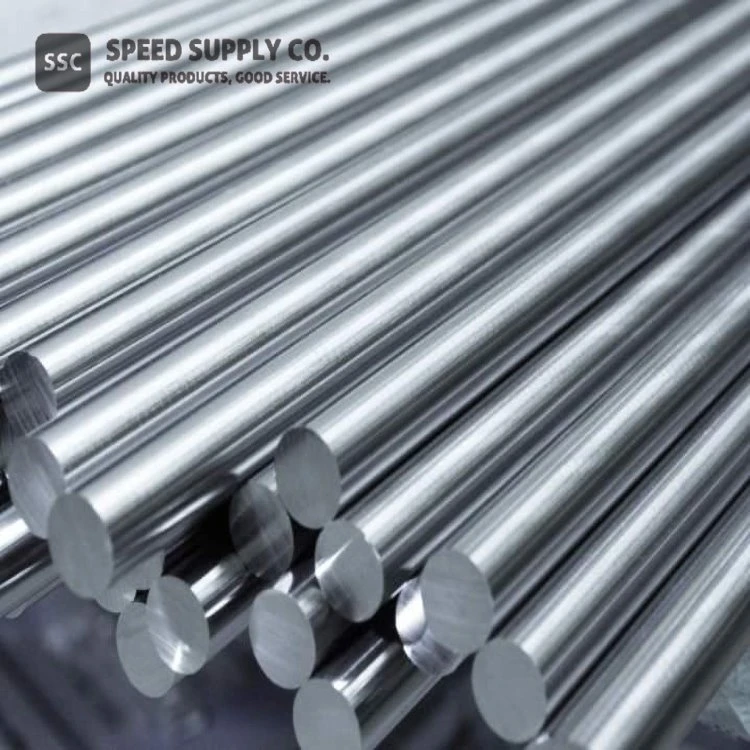

Tantalum Tungsten Alloy Rod and Bar Description
Tantalum tungsten is a high strength metal alloy. It has a high melting point, tension resistance and corrosion resistance. SSC's tantalum alloys are made using power metallurgy techniques by mixing tantalum powder with alloy elements and filling them into molds, compressing them at temperatures of up to 2000 bars, and then sintering them. Tantalum tungsten alloys are stronger than pure tantalum and are useful for corrosion and heat applications at temperatures of up to 1600 °C
Ta7.5W which is 92.5% tantalum and 7.5% tungsten is also available.
SSC provides tantalum tungsten alloy rod , bar and cylinder in length of up to 2m and in diameter of up to 120 mm. We also provide pure tantalum and tantalum niobium alloy rod & bar.
Chemical Composition of Tantalum Tungsten Alloy Rod and Bar
Chemical Composition (%) | |||||||||
Grade | Main Content | Impurities (≤%) | |||||||
Ta | Nb/W | Fe | Si | Ni | W | Mo | Ti | O | |
Ta2.5W | Bal | 2.0~3.0 | 0.005 | 0.005 | 0.002 | 3.0 | 0.01 | 0.002 | 0.015 |
Ta10W | Bal | 9~11 | 0.005 | 0.005 | 0.002 | 11 | 0.01 | 0.002 | 0.015 |
Other details per customer's request. (N,C≤0.01%, H≤0.0015%) | |||||||||
Mechanical Properties for Tantalum and Tantalum Alloy Rod and Bar
Product condition | Tensile strength (MPa) | Elongation, % |
Annealed | 300～600 | 10～30 |
Half annealed | >600～1000 | <5 |
Un-annealed | >1000 | <5 |
Applications and Related Industries for Tantalum Tungsten Alloy Rod and Bar
● High temperature furnace parts
● Prosthetic devices for humans
● Tantalum electrolyte capacitors
● Vacuum electron cathode emission source
● Research & Laboratory
● Chemical
● Energy
● Medical
● Aerospace
● Metallurgy
Chemical Identifiers
Linear Formula | Ta-W |
MDL Number | N/A |
EC No. | N/A |
Pubchem CID | 57464935 |
IUPAC Name | tantalum; tungsten |
SMILES | [Ta].[W] |
InchI Identifier | InChI=1S/Ta.W |
InchI Key | DZZDTRZOOBJSSG-UHFFFAOYSA-N |
Tantalum Tungsten Alloy Properties (Theoretical)
Compound Formula | Ta-W |
Appearance | Metallic solid in various forms (plate/sheet, bar, rod, strip, foil, wire, disc, sputtering target) |
Melting Point | 3005-3030 °C |
Boiling Point | N/A |
Density | 16.7-16.9 g/cm3 |
Solubility in H2O | N/A |
Electrical Resistivity | 0.0000176 ohm-cm |
Tensile Strength | 550 MPa (7.5% W) |
Vickers Hardness | 245 (7.5% W) |
