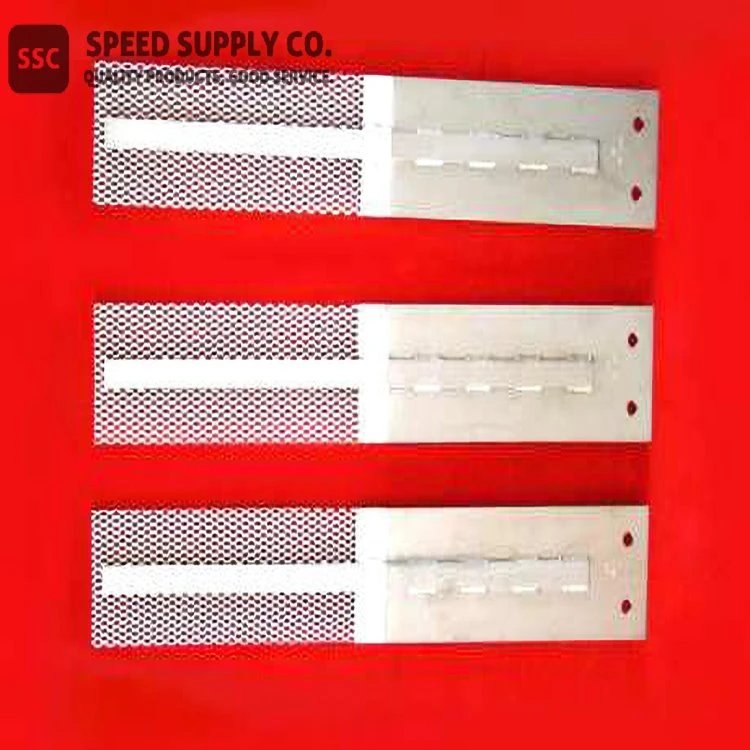

Platinized Niobium Anode

Platinized Niobium Anode Description

Platinised niobium anodes combine the good electrochemical properties of platinum and the good corrosion qualities of niobium.

Platinum is a good anode material because it is high conductivity and low consumption rate. But as a precious metal, platinum is often used by electroplating a thin layer over a high-corrosion-resistant substrate to reduce the cost. Niobium is a material that is often used as a surface for anodes.

Platinum coated (platinized or platinum clad) niobium metal anodes are lightweight and highly conductive. They are used for electroplating, protecting the cathode, and treating water. Platinum coated niobium anodes are usually available right away and can be made in forms like sheet, mesh, perforated plate, rod, or wire.

Platinized Niobium Anode Specifications

Allowable operating voltage: ≤12V

Shapes: Rod, Wire, Mesh

Rod length (mm): ≤3000

Rod dia. (mm): 12, 16, 19, 25

Wire length (m): ≤100

Wire dia. (mm): 1, 2, 3, 4

Mesh length (mm): ≤2500

Mesh width (mm): ≤800

Platinum thickness (μm): 5, 7.5, 10

Customized sizes are also available.

Advantages of Platinized Niobium Anode

● Production of complex shape anodes possible

● Easy handling, low maintenance

● Low electric resistance

● Excellent corrosion characteristics

● Application also in fluoride-containing baths

● Long service life at a very high current density

● Dimensional stability

● Replating possible

Platinized Niobium Anode Applications and Related Industries

● Internal protection of condensers, process equipment, etc.

● Internal protection of water tanks and pipelines

● Protection of reinforced concrete structures
