Features
CAS No.: | 1314-23-4 |
Linear Formula: | ZrO2 |
Material: | Zirconium Oxide |
Purity: | ≥99.9 % |
Appearance: | White powder or solid in various forms |

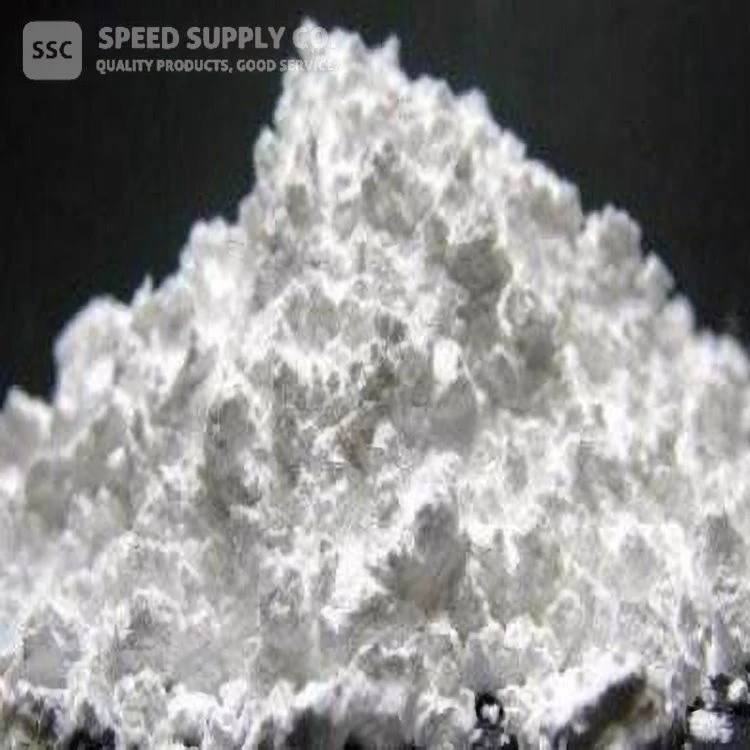

Zirconium Oxide Description
Zirconium oxide (zirconia) is the main oxide of zirconium. Its chemical formula is ZrO2. Under normal conditions, it is a white, odorless, and tasteless crystal, and it is insoluble in water, hydrochloric acid and dilute sulfuric acid. The chemical properties of zirconium oxide are inactive, and it has the properties of high melting point, high resistivity, high refractive index, and low thermal expansion coefficient, making zirconium oxide an important high-temperature resistant material, ceramic insulating material, and ceramic sunscreen. In addition, zirconium oxide is also the main raw material for artificial diamonds. Zirconium oxide is a highly insoluble thermally stable zirconium source suitable for glass, optic and ceramic applications. High purity (99.999%) zirconium oxide powder is useful in light weight structural components in aerospace and electrochemical applications such as fuel cells in which they exhibit ionic conductivity.
Zirconium oxide is also available in pellets, pieces, powder, sputtering targets, tablets, and nanopowder.
Zirconium Oxide Powder Specification
Item | ZrO2+HfO2 | SiO2 | Fe2O3 | Na2O | Particle Size | Specific Surface Area |
OX40-3N | 99.9% | < 0.015% | < 0.003% | < 0.01% | -325 mesh | |
OX40-3N5 | 99.95% | < 0.01% | < 0.0005% | < 0.005% | -200+325 mesh | |
OX40-3NF | 99.9% | < 0.015% | < 0.0015% | < 0.01% | D50 < 1.0 μm | > 15m2/g |
OX40-3NE | 99.9% | < 0.015% | < 0.0015% | < 0.01% | D50 1-3 μm | > 8m2/g |
Zirconium Oxide Applications and Related Industries
● Raw materials for metal zirconium and its compounds
● Refractory materials
● Plasma-sprayed zirconium dioxide thermal barrier coating on aerospace and industrial gas turbines
● Ceramic materials
● Manufacture of incandescent gas lampshades, enamels, white glass, refractory crucibles, etc
● Ceramic Color
● Opacifiers
● Catalysts
● Sensors
● High Temperature Insulation
● Electronics
● Wear Resistant Products
● High Temperature Filler
● Biomaterials
● Dentistry
● Pigments & Coatings
● Research & Laboratory
Chemical Identifiers
Linear Formula | ZrO2 |
MDL Number | MFCD00011310 |
EC No. | 215-227-2 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 62395 |
IUPAC Name | Dioxozirconium |
SMILES | O=[Zr]=O |
InchI Identifier | InChI=1S/2O.Zr |
InchI Key | MCMNRKCIXSYSNV-UHFFFAOYSA-N |
Zirconium Oxide Properties (Theoretical)
Compound Formula | ZrO2 |
Molecular Weight | 123.22 |
Appearance | White powder or solid in various forms |
Melting Point | 2,715° C (4,919° F) |
Boiling Point | 4,300° C (7,772° F) |
Density | 5680 kg/m3 |
Solubility in H2O | Negligible |
Refractive Index | n20/D 2.13 |
Thermal Conductivity | 2.5-3.0 W/m·K |
Thermal Expansion | 10.5 x 10-6/°C |
Exact Mass | 121.895 g/mol |
Monoisotopic Mass | 121.894531 Da |
