Features
CAS No.: | 12299-18-2 |
Linear Formula: | WRe |
Material: | W-3Re, W-25Re, W-5Re, W-26Re |
Shape: | Plate |
Appearance: | Gray Metallic Plate |
Size: | Length: 1000mm max., Width: 600mm max., Thickness: 1-20mm |

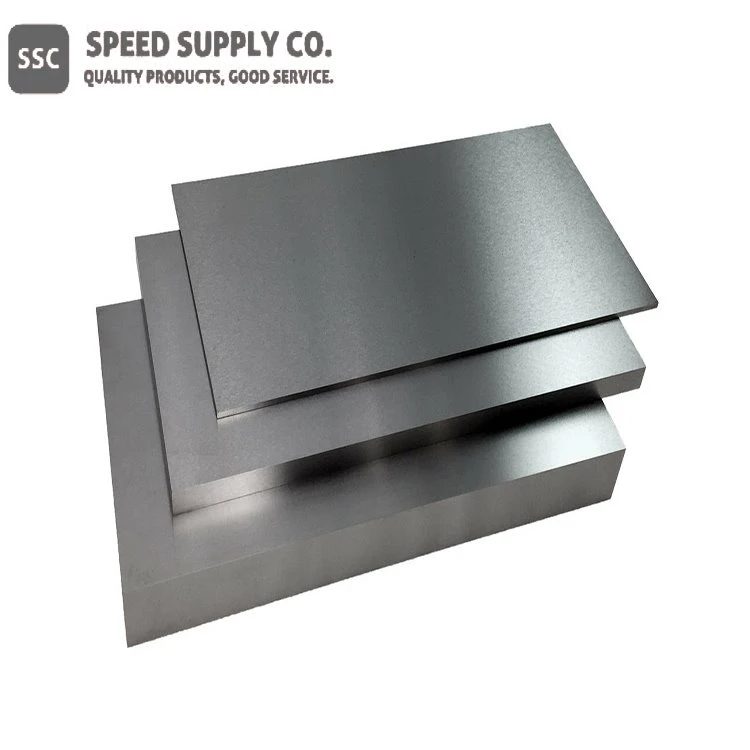

Tungsten Rhenium Alloy Plate Description
As refractory metals, rhenium and tungsten both have good ductility and strength. The addition of rhenium to tungsten can make the ductility, specific resistance, and vibration strength properties of W-Re alloy are further increased. These are well within the range associated with superplastic materials. W-Re alloy can be recommended for elements of electric vacuum devices such as cathodes, heaters, radio tube grids, etc. They are also suitable for thermocouples and electrical contacts.
Tungsten rhenium alloy plate (board) has excellent strength and plasticity in high temperature, which can be used in the fields of aerospace, atomic energy, superalloys, sputtering targets, high temperature applications and so on.
Our tungsten rhenium alloy products are also available in forms of wire, ribbon, strip, sheet, rod, etc.
Tungsten Rhenium Alloy Plate Applications and Related Industries
● Furnace
● Aerospace industries
● Aerospace
● Heat treatment
● Atomic energy
Chemical Identifiers
Linear Formula | WRe |
MDL Number | MFCD02091751 |
EC No. | N/A |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 25252736 |
IUPAC Name | rhenium; tungsten |
SMILES | [W].[Re] |
InchI Identifier | InChI=1S/Re.W |
InchI Key | DECCZIUVGMLHKQ-UHFFFAOYSA-N |
Tungsten Rhenium Alloy Properties (Theoretical)
Compound Formula | WRe |
Molecular Weight | 370.04 |
Appearance | Gray metallic solid in various forms |
Melting Point | 3400 °C |
Boiling Point | 5660 °C |
Density | 19.7 g/cm3 |
Solubility in H2O | N/A |
Tensile Strength | 1310-2100 MPa |
Thermal Expansion | 4.48 x 10-6K-1 |
Exact Mass | 370.906684 |
Monoisotopic Mass | 370.906684 |
