PRODUCTS
Features
|
Material: |
W-La |
|
Shape: |
Rod, Sheets, Plates, Electrodes, Crucible, Tube, Sputtering targets, Components per drawings |
|
Size: |
Customize |
|
Grade: |
WLa10 La2O3 Content 1 to 1.2 wt.% WLa15 La2O3 Content 1.5 to 1.7 wt.% WLa20 La2O3 Content 2 to 2.3 wt.% or customized |
Product Description
Tungsten Lanthanum Alloy (W-La) is a high-performance tungsten-based material doped with lanthanum oxide (La₂O₃), which enhances mechanical strength, thermal stability, and machinability compared to pure tungsten. This alloy is widely used in high-temperature environments, vacuum applications, and electrical discharge machining (EDM) electrodes.
The addition of La₂O₃ particles refines the tungsten grain structure, providing excellent creep resistance, superior ductility, and better oxidation resistance. W-La is commonly used in welding electrodes, aerospace components, and high-temperature furnace parts due to its outstanding wear resistance and thermal conductivity.
Features & Properties
✔ High-Temperature Stability – Withstands 2,500°C+ applications
✔ Excellent Creep Resistance – Maintains strength at elevated temperatures
✔ Improved Ductility – Easier to machine than pure tungsten
✔ High Electrical Conductivity – Ideal for electrodes & vacuum applications
✔ Better Arc Stability – Used for welding & plasma cutting electrodes
✔ Oxidation & Corrosion Resistance – Extended lifespan in extreme conditions
Product Specifications
| Property | Value |
|---|---|
| Material | Tungsten Lanthanum (W-La) |
| CAS Number | Not applicable |
| Density | 18.3 – 19.0 g/cm³ |
| Melting Point | ~3,422°C |
| Thermal Conductivity | 140 – 170 W/m·K |
| Electrical Conductivity | ~30% IACS |
| La₂O₃ Content | 1 – 2.3 wt.% |
| Hardness (HV) | 350 – 450 |
Product Standards
ASTM B777 – Standard Specification for Tungsten Alloys
ISO 9001:2015 – Certified Quality Control
RoHS & REACH Compliance – Safe for industrial use
MIL-T-21014D – Military-Grade Tungsten
Product Forms

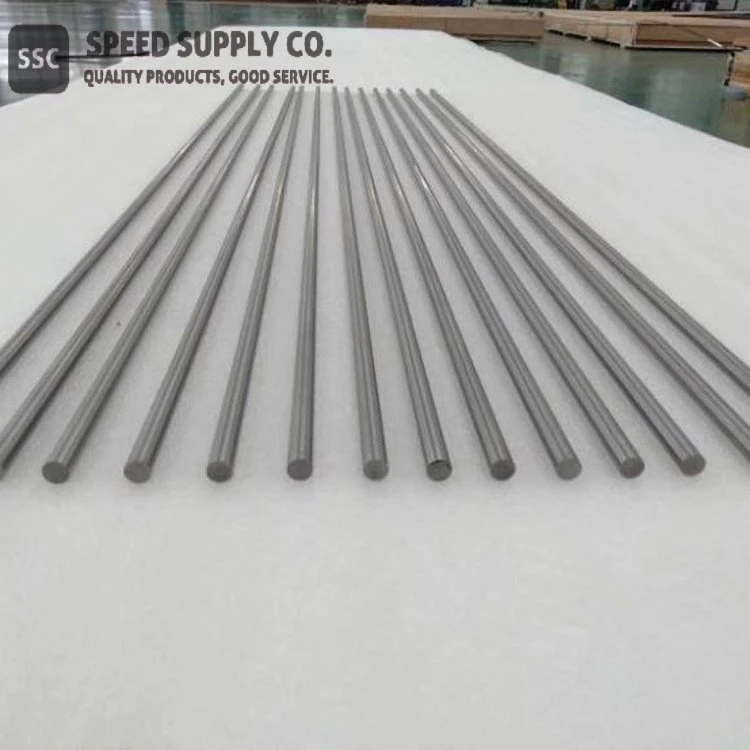

🔹 Tungsten Lanthanum Rods – Used for electrodes & aerospace components
🔹 Tungsten Lanthanum Sheets & Plates – Ideal for high-temperature applications
🔹 Tungsten Lanthanum Electrodes – Enhanced arc stability for welding & cutting
🔹 Tungsten Lanthanum Crucibles – Heat-resistant for vacuum & furnace use
🔹 Tungsten Lanthanum Tubes – Used in aerospace & energy industries
🔹 Tungsten Lanthanum Sputtering Targets – For thin film coatings & electronics
Production Method & Production Equipments
Production Method
Powder Metallurgy Process – High-purity tungsten & La₂O₃ powders are blended
Compaction & Sintering – Pressed into shape & sintered at high temperatures
Hot Rolling & Forging – Enhances mechanical properties
Precision Machining – Custom shapes & sizes produced to specifications
Production Equipments
Vacuum Sintering Furnaces – Achieves high-purity, high-density materials
Hot Rolling Mills – Produces tungsten lanthanum sheets & plates
CNC Machining Centers – Precision fabrication of complex components
X-ray Diffraction (XRD) Analyzers – Quality control for La₂O₃ distribution
Induction Melting Systems – Ensures uniform alloy composition
Applications & Related Industries
🔹 Welding & Plasma Cutting Electrodes – Provides better arc stability & longevity
🔹 Aerospace & Aviation – Used in rocket nozzles, radiation shielding, & aircraft components
🔹 Vacuum Furnace Components – High-temperature resistance for heat treatment & metallurgy
🔹 Electrical Discharge Machining (EDM) Electrodes – Superior wear resistance
🔹 Semiconductor & Thin Film Deposition – Sputtering targets for electronics & coatings
🔹 Nuclear & Defense Industries – Radiation shielding & high-density materials
Synonyms
W-La Alloy
Lanthanated Tungsten
Tungsten Lanthanide Alloy
Tungsten-Lanthanum Electrode
WLa10, WLa15, WLa20 Alloy
Health & Safety Information
Non-Toxic & Safe – Contains no hazardous heavy metals
Dust Precautions – Fine tungsten dust should be handled with protective masks
Storage – Keep in a dry, ventilated environment to prevent oxidation
Interesting Facts About Tungsten Lanthanum Alloy
🔹 NASA Uses W-La Alloys – In rocket engine nozzles & space applications
🔹 Better Performance Than Pure Tungsten – Higher ductility & machinability
🔹 Preferred for High-Voltage Applications – Used in electron beam devices
Why Choose Us for Tungsten Lanthanum Alloy?
✅ High-Purity Materials – Compliant with ASTM & ISO standards
✅ Custom Fabrication – Rods, sheets, plates, electrodes, & more
✅ Advanced Quality Control – Precision manufacturing & strict testing
✅ Worldwide Shipping – Fast & secure global delivery
Contact Us for Custom Tungsten Lanthanum Alloy Solutions
Looking for high-quality Tungsten Lanthanum Alloy? Contact us today for expert guidance & competitive pricing!
