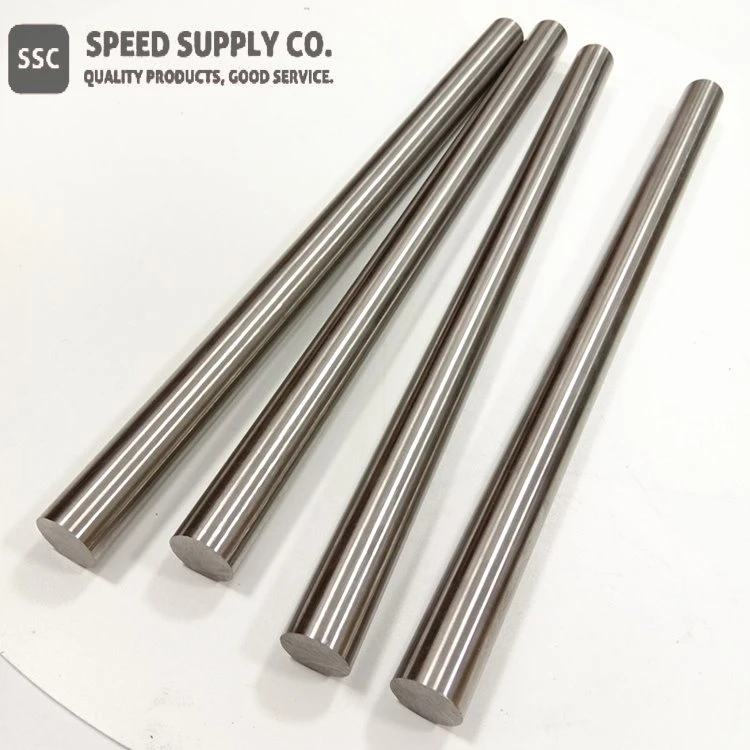

Tungsten Alloy Rod and Bar

Linear Formula: W-Ni-Cu, W-Ni-Fe

Send Inquiry

Add To Inquiry

Features

Linear Formula:	W-Ni-Cu, W-Ni-Fe
Material:	W-90% Ni-6% Cu-4%, W-92.5% Ni-4.5% Cu-3%, W-95% Ni-3.5% Cu-1.5% W-90% Ni-7% Fe-3%, W-92.5% Ni-5.25% Fe-2.25%, W-95% Ni-3.5% Fe-1.5%, W-97% Ni-2.1% Fe-0.9%
Surface:	Finish turning, Milling, Grinding
Size:	Diameter 2 ~ 320mm, Length 2 ~ 600mm

Tungsten Alloy Rod and Bar Description

Tungsten alloy rod and bar have many excellent properties such as high density, high melting point, small volume, high wear resistance, extremely high hardness, high tensile strength, high elongation, and high-temperature resistance. Tungsten alloy products are widely used in industrial fields.

Tungsten alloy rod is prepared by first mixing tungsten powder with other metal powder, pressing it, and then sintering it into a blank semi-finished product. After the blank semi-finished product is subjected to swaging and cutting, the tungsten alloy rod is finally formed. These tungsten alloy rods can be made to any length according to customer requirements, the surface is smooth, and the diameter is more than 2mm. Tungsten alloy rod can be processed into a hollow shape. The hollow tube wall is within 3 mm. Special length and structure can be processed according to the customer's needs.

SSC supply forged tungsten alloys, rolled tungsten alloys, swagged tungsten alloys, without further machining we named them as semifinished tungsten alloys. Materials can cover all tungsten heavy alloys, mainly tungsten-nickel-iron alloy and tungsten-nickel-copper Alloy. Forged tungsten alloys include ingot, rod, bar, block, and plate. Dimensions for forged parts are always large, unit weight can be up to thousand pounds. Rolled tungsten alloys include plate, sheet, and foil, thickness ranging from 0.05mm to 6.0mm. They are mostly used as shield parts in medical and electronic industries. SSC provides semifinished tungsten alloys products as well as tungsten alloys fasteners that used for assembly.

Tungsten Alloy Rod and Bar Specification

Type	Density g/cm3	Tensile strength	Elongation	HRC
85W-10.5Ni-4.5Fe	15.8-16.0	700-1000	20-33	20-30
90W-7Ni-3Fe	16.9-17.1	700-1000	20-33	24-32
90W-6Ni-4Fe	16.7-17.0	700-1000	20-33	24-32
91W-6Ni-3Fe	17.1-17.3	700-1000	15-28	25-30
92W-5Ni-3Fe	17.3-17.5	700-1000	18-28	25-30
92.5W-5Ni-2.5Fe	17.4-17.6	700-1000	25-30	25-30
93W-4Ni-3Fe	17.5-17.6	700-1000	15-25	26-30
93W-4.9Ni-2.1Fe	17.5-17.6	700-1000	15-25	26-30
93W-5Ni-2Fe	17.5-17.6	700-1000	15-25	26-30
95W-3Ni-2Fe	17.9-18.1	700-900	8-15	25-35
95W-3.5Ni-1.5Fe	17.9-18.1	700-900	8-15	25-35
96W-3Ni-1Fe	18.2-18.3	600-800	6-10	30-35
97W-2Ni-1Fe	18.4-18.5	600-800	8-14	30-35
98W-1Ni-1Fe	18.4-18.6	500-800	5-10	30-35
90W-6Ni-4Cu	>17.0-17.2	600-800	4-8	25-35
93W-5Ni-2Cu	17.5-17.6	500-600	3-5	25-35
