Molybdenum Rhenium Alloy Long Products

Material: Mo-Re Alloy (Mo-20% Re, Mo-41% Re, Mo-44.5% Re, Mo-47.5% Re)

Send Inquiry

Add To Inquiry

Features

Material:	Mo-Re Alloy (Mo-20% Re, Mo-41% Re, Mo-44.5% Re, Mo-47.5% Re)
Appearance:	Silvery metallic solid
Shape:	Rod, Bar, Wire, Tube, Pipe, Ingot, Pellets
Size:	Rod, Bar, Wire, Ingot, Pellets: Dia. 0.02-125.4mm, length customized Tube, Pipe: Customized

🔹 Product Description

Molybdenum Rhenium (Mo-Re) alloy long products offer exceptional mechanical strength, high-temperature stability, and superior corrosion resistance. The addition of rhenium enhances ductility, making Mo-Re rods, wires, and tubes ideal for extreme environments in aerospace, electronics, medical, and industrial applications. Our Mo-Re long products are available in various compositions, ensuring optimized performance for different engineering needs.

🔹 Features & Properties

✔ High Melting Point (~2,620°C) for extreme heat resistance
✔ Excellent Thermal & Electrical Conductivity for electronic and industrial applications
✔ Superior Strength & Creep Resistance at elevated temperatures
✔ Enhanced Ductility & Toughness due to rhenium content
✔ Outstanding Corrosion & Oxidation Resistance in aggressive environments
✔ Precision Machinability & Formability for custom engineering solutions

🔹 Applications & Related Industries

Mo-Re long products are widely used across high-tech industries due to their exceptional physical and chemical properties.

🚀 Aerospace & Defense – Rocket propulsion, nozzle throats, heat shields
🔬 Electronics & Semiconductor – Thin-film deposition, high-temperature electrical contacts
⚕ Medical & Healthcare – X-ray tubes, radiation shielding, implants
⚙ Energy & Nuclear – Thermocouples, reactor components, fuel rods
🔥 High-Temperature Furnaces – Heating elements, structural supports
🔧 Advanced Manufacturing – 3D printing, additive manufacturing materials

🔹 Synonyms & Alternative Names

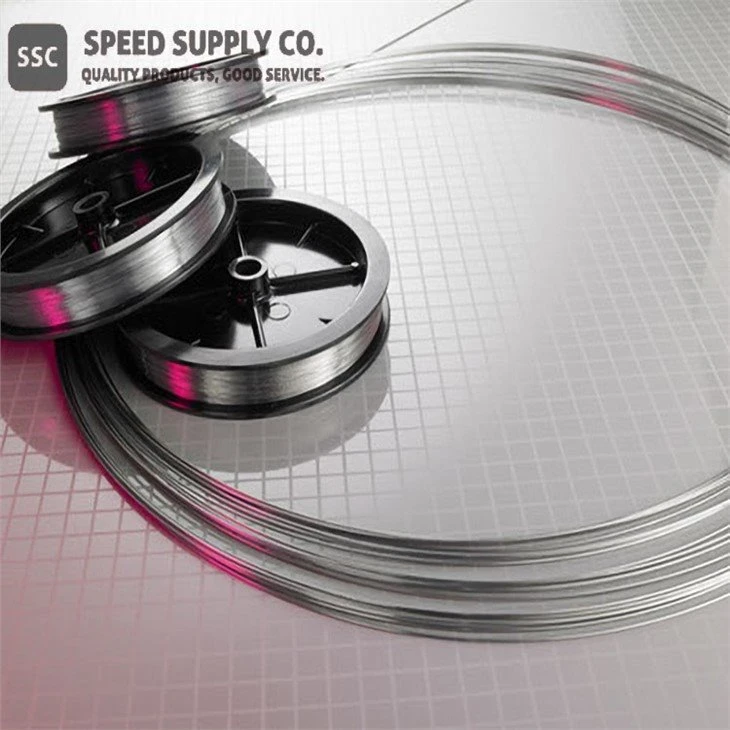

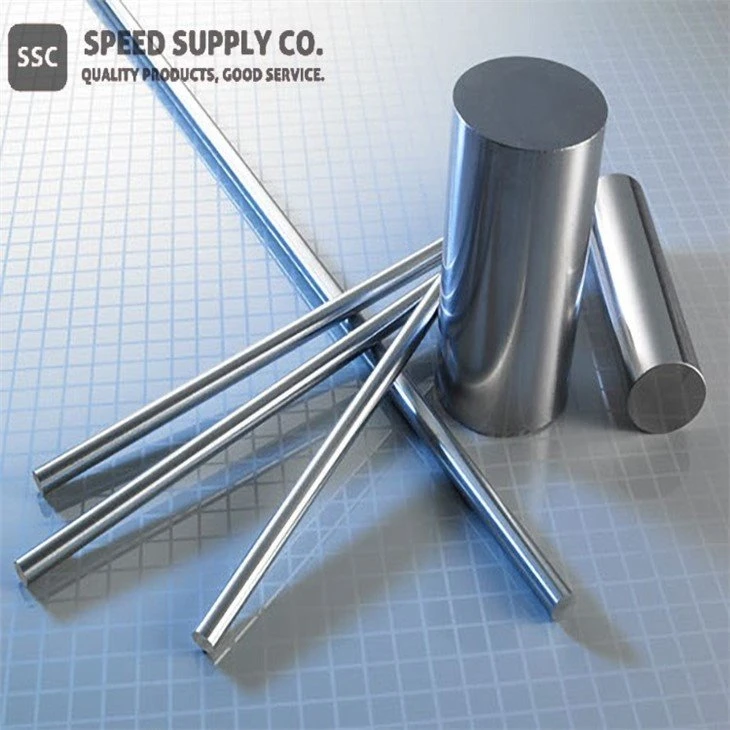

Mo-Re Rod, Mo-Re Bar, Mo-Re Wire

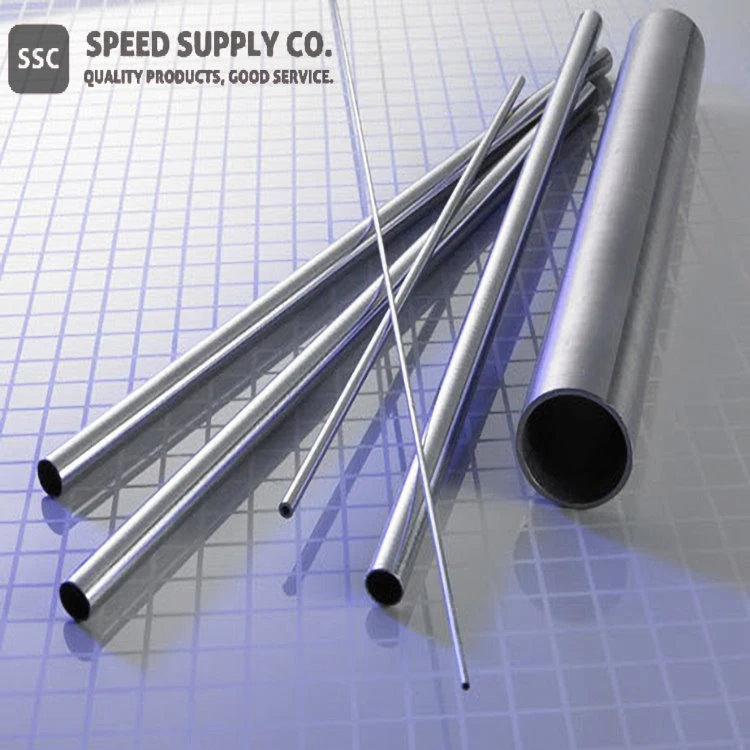

Molybdenum-Rhenium Alloy Tubing

Moly Rhenium Pipe

🔹 Health & Safety Information

⚠ Handling Precautions: Use gloves and eye protection when handling fine Mo-Re wires or rods.
⚠ Storage: Store in a dry, non-corrosive environment to prevent oxidation.
⚠ Processing Safety: Ensure proper ventilation when machining to avoid fine dust inhalation.

🔹 Production Method & Equipment

Mo-Re alloy long products are manufactured using advanced techniques such as vacuum arc melting (VAR), powder metallurgy, and hot/cold working processes.

🔹 Rod & Bar: Extrusion, rolling, and swaging ensure uniform dimensions and superior mechanical properties.
🔹 Wire: Precision drawing and annealing produce high-purity, ductile Mo-Re wires.
🔹 Tube & Pipe: Deep drilling and seamless tube forming techniques create high-strength, high-purity tubing.
🔹 Ingots & Pellets: Powder metallurgy and sintering processes ensure density and purity.

🔹 Size & Customization

We offer customized sizes and dimensions to meet specific engineering needs.

✔ Rod, Bar, Wire, Ingot, Pellets: Dia. 0.02-125.4mm, length per request
✔ Tube, Pipe: Inner/outer diameter and wall thickness can be tailored to application requirements

🔹 Certifications & Quality Assurance

✅ ISO 9001 Certified Manufacturing
✅ ASTM B387, ASTM F2896 Compliant
✅ Strict Quality Control & Testing (Chemical Composition, Mechanical Properties, Surface Finish)

🔹 Lead Time & Minimum Order Quantity (MOQ)

📅 Lead Time: 2-4 weeks depending on order specifications
📦 MOQ: 1 kg or per customer requirements

🔹 FAQs (Frequently Asked Questions)

Q1: What are the advantages of Mo-Re wires over pure molybdenum wires?
✅ Mo-Re wires provide higher ductility, flexibility, and creep resistance, making them ideal for high-temperature electrical applications.

Q2: Can Mo-Re rods be welded or machined?
✅ Yes, Mo-Re alloys are machinable and weldable, but specialized techniques are required due to their strength and hardness.

Q3: What's the difference between Mo-20% Re and Mo-44.5% Re?
✅ Mo-20% Re is optimized for structural components, while Mo-44.5% Re offers enhanced ductility for aerospace and medical applications.

Q4: Do you offer customized tube dimensions?
✅ Yes, our Mo-Re tubes are manufactured according to customer specifications for inner diameter, outer diameter, and wall thickness.

🔹 How to Choose the Right Mo-Re Alloy?

✔ Mo-20% Re: Ideal for high-temperature structural components requiring moderate ductility.
✔ Mo-41% Re: Best suited for aerospace and electronic applications with demanding strength requirements.
✔ Mo-44.5% Re & Mo-47.5% Re: High ductility and excellent resistance to thermal fatigue, perfect for extreme environments.

🔹 Product Standards

✔ ASTM B387 (Standard Specification for Molybdenum and Molybdenum Alloy Rods, Bars, and Wire)
✔ ASTM F2896 (Medical Applications Standard)

🔹 Product Specifications

Composition	Rhenium Content (%)	Density (g/cm³)	Melting Point (°C)	Tensile Strength (MPa)
Mo-20% Re	20	11.0	2,620	600-800
Mo-41% Re	41	11.2	2,620	800-1,000
Mo-44.5% Re	44.5	11.3	2,620	1,000-1,200
Mo-47.5% Re	47.5	11.4	2,620	1,200-1,400

🔹 Production & Quality Control

Every batch undergoes rigorous testing to ensure superior quality:
✅ Chemical Composition Analysis (ICP, XRF)
✅ Mechanical Testing (Hardness, Tensile Strength)
✅ Dimensional & Surface Inspection (Optical & SEM Analysis)

🔹 Shipping & Delivery Information

📦 Packaging: Corrosion-resistant wrapping, vacuum-sealed for protection
🚛 Delivery Options: Air, sea, and express courier services available
🌍 Global Shipping: Worldwide delivery with reliable logistics partners

🔹 Environmental Impact & Sustainability

♻ Mo-Re alloys are recyclable and produced using energy-efficient methods to minimize environmental impact.

🔹 Maintenance & Care Instructions

✔ Store in a dry, controlled environment to prevent oxidation.
✔ Avoid contact with strong acids unless using a protective coating.
✔ Handle wires and thin rods carefully to prevent bending or damage.

🔹 Differentiation Between Products

Each Mo-Re alloy composition offers unique properties tailored to specific industry requirements, ensuring optimal performance.

📩 Contact Us

Looking for high-quality Molybdenum Rhenium Alloy Long Products? Contact us today for a quote or more information!

Chemical Identifiers

Linear Formula	Mo/Re
MDL Number	N/A
EC No.	N/A
Pubchem CID	9993894
IUPAC Name	molybdenum; rhenium
SMILES	[Mo].[Re]
InchI Identifier	InChI=1S/Mo.Re
InchI Key	NZPGFUCQQUDSQG-UHFFFAOYSA-N
