Features
CAS No.: | 7440-15-5 |
Linear Formula: | Re |
Purity: | 99.99% |
Density: | Min. 18.8g/cc |
Melting Point: | 3180 °C |
Shape: | Cylinder, Bowl, Tapered, Square, Rectangular, Boat or Customized |
Wall Thickness: | 3-6 mm |
Capacity: | Up to 2000ml |
Size: | 10-500mm OD x 10-600mm H, or Customized |

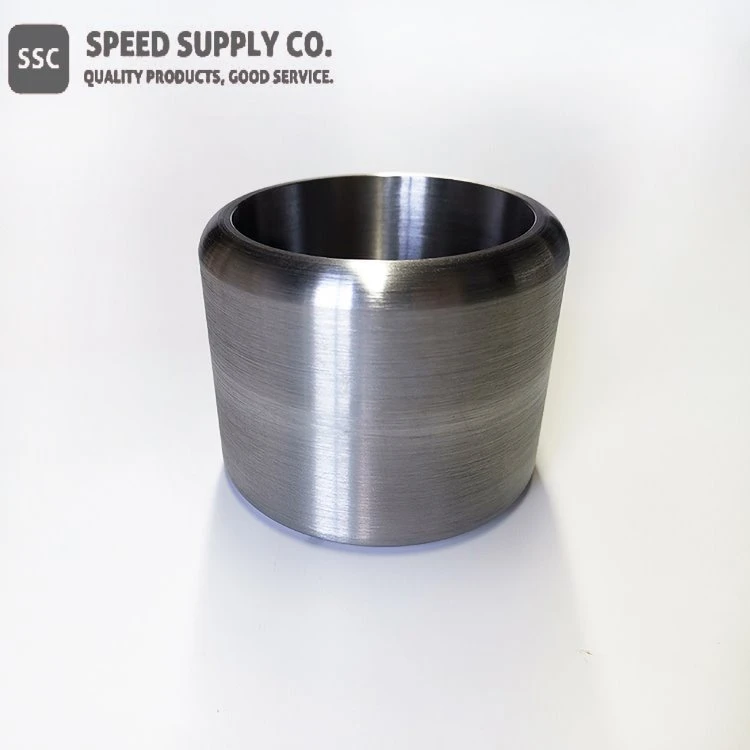

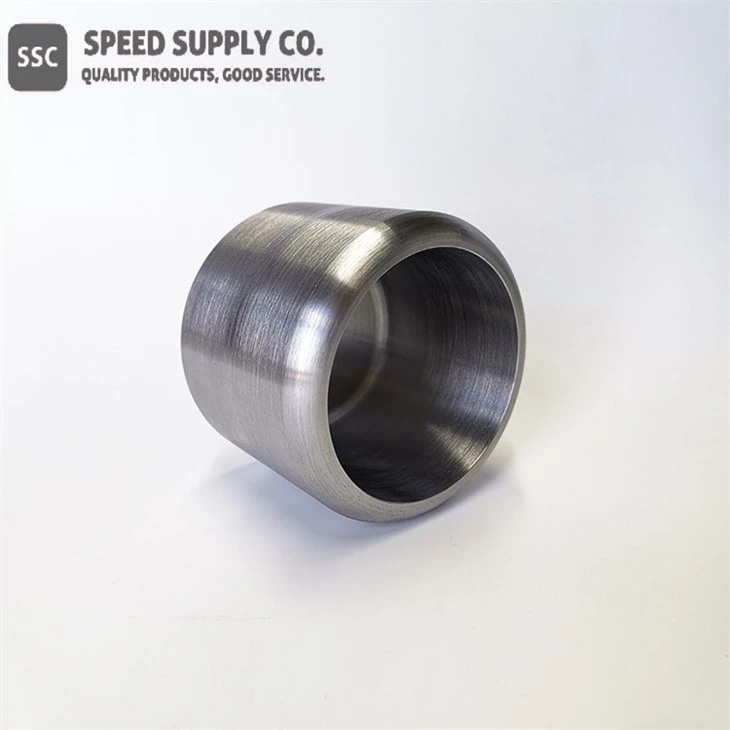

Rhenium Crucible Description
Rhenium crucible is made of pure rhenium powder through a special molding method. It can withstand over 2000℃ high temperature. It is mainly used in rare earth elements and gem single crystal growth. Due to its high melting point, good compatibility, excellent oxidation resistance and creep resistance, rhenium crucible is especially favored by gem manufacturers.
SSC specializes in supplying rhenium crucibles with a variety of shapes and dimensions and wall thicknesses. Custom configurations are available. The purity of our rhenium crucible is greater than 99.99%.
Rhenium Crucible Applications and Related Industries
● Anti-corrosion container
● Nuclear reaction
● Ultra-high evaporation
● Single crystal growth of rare earth elements and gemstones
● Refractory Metals & Alloys
● Thin Film Deposition
● Research & Laboratory
Packaging of Rhenium Crucible
Our rhenium crucibles are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
Linear Formula | Re |
MDL Number | MFCD00011195 |
EC No. | 231-124-5 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23947 |
SMILES | [Re] |
InchI Identifier | InChI=1S/Re |
InchI Key | WUAPFZMCVAUBPE-UHFFFAOYSA-N |
Rhenium Crucibles Properties (Theoretical)
Molecular Weight | 186.21 |
Appearance | Silvery-gray |
Melting Point | 3180 °C |
Boiling Point | 5627 °C |
Density | 21.02 gm/cc |
Solubility in H2O | N/A |
Electrical Resistivity | 19.3 microhm-cm @ 20 °C |
Electronegativity | 1.9 Paulings |
Heat of Fusion | 7.9 Cal/gm mole |
Heat of Vaporization | 152 K-Cal/gm atom at 5627 °C |
Poisson's Ratio | 0.3 |
Specific Heat | 0.0329 Cal/g/K @ 25 °C |
Tensile Strength | 80,000 psi |
Thermal Conductivity | 0.480 W/cm/K @298.2 K |
Thermal Expansion | 6.2 µm/(m·K) |
Vickers Hardness | 2450 MPa |
Young's Modulus | 463 GPa |
