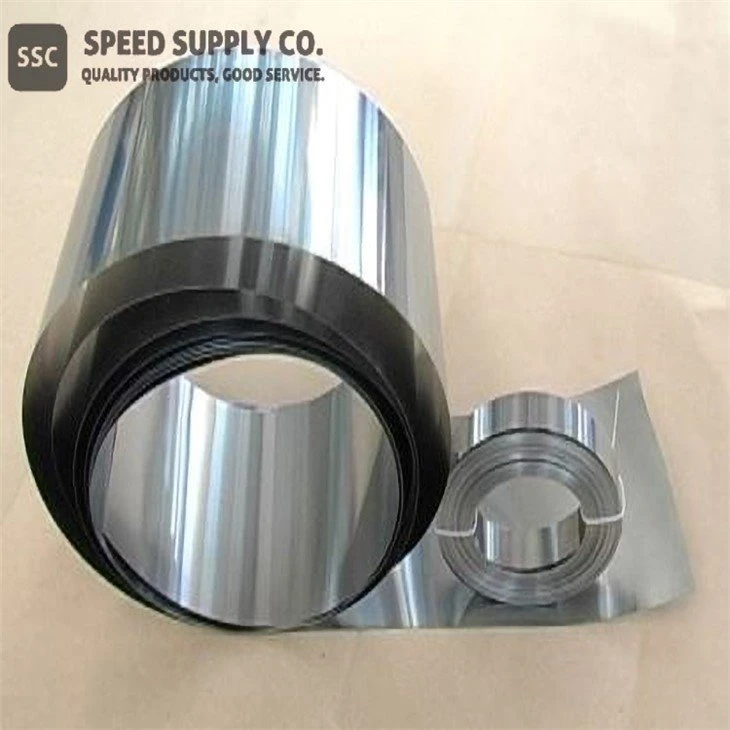

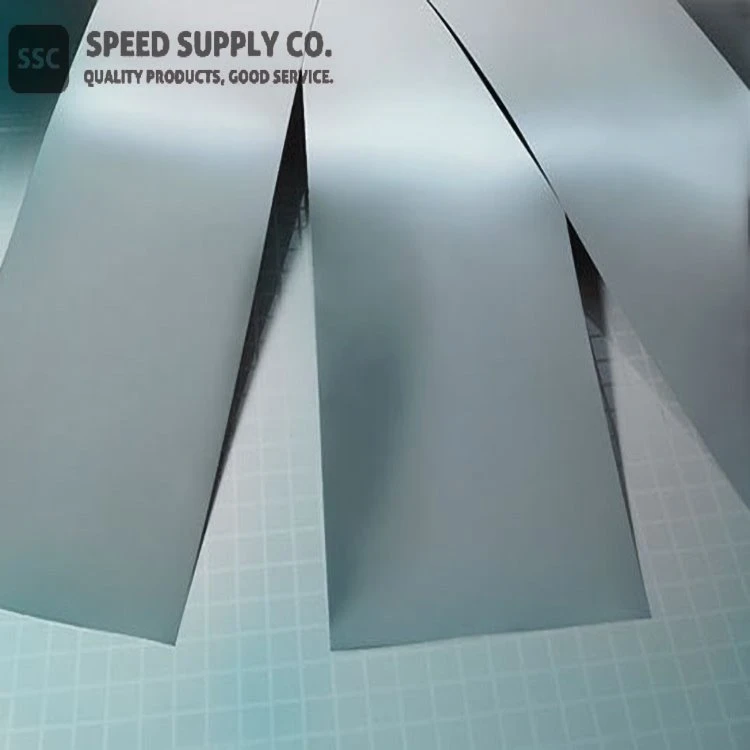

Molybdenum Rhenium Alloy Flat Products

Material: Mo-Re Alloy (Mo-20% Re, Mo-41% Re, Mo-44.5% Re, Mo-47.5% Re)

Send Inquiry

Add To Inquiry

Features

Material:	Mo-Re Alloy (Mo-20% Re, Mo-41% Re, Mo-44.5% Re, Mo-47.5% Re)
Appearance:	Silvery metallic solid
Shape:	Board, Sheet, Foil, Plate, Strip, Ribbon, Disc
Size:	Thickness: 0.01-10.0mm Width: 10-300mm Length: 10-1000mm

🔹 Product Description

Molybdenum Rhenium (Mo-Re) alloy flat products offer high strength, superior thermal stability, and excellent resistance to corrosion and wear. The addition of rhenium enhances ductility and improves mechanical properties, making these materials ideal for extreme environments. Available in various compositions, Mo-Re sheets, plates, and foils provide outstanding performance in aerospace, electronics, and high-temperature applications.

🔹 Features & Properties

✔ High melting point (~2,620°C)
✔ Excellent thermal and electrical conductivity
✔ Superior strength and creep resistance at high temperatures
✔ Enhanced ductility and toughness due to rhenium content
✔ Outstanding corrosion and wear resistance
✔ Low thermal expansion and high thermal stability

🔹 Applications & Related Industries

Mo-Re alloy flat products are widely used in industries requiring extreme durability and stability:

🚀 Aerospace & Aviation – Rocket nozzles, propulsion systems, and structural components
🔬 Electronics & Semiconductor – Thin-film deposition, circuit components, and electrical contacts
⚙ Medical & Healthcare – X-ray and radiation shielding, medical implants
🔥 High-Temperature Furnaces – Heating elements, crucibles, and refractory components
🔧 Nuclear & Energy – Fuel cladding, thermocouples, and reactor components

🔹 Synonyms & Alternative Names

Mo-Re Sheet, Mo-Re Plate, Mo-Re Foil

Molybdenum-Rhenium Alloy Strip

Moly Rhenium Sheet

🔹 Health & Safety Information

⚠ Handling Precautions: Wear protective gloves and eyewear to prevent contact with fine particles.
⚠ Storage: Store in a dry, non-corrosive environment to prevent oxidation.
⚠ Processing Safety: Use proper ventilation when machining to avoid fine dust inhalation.

🔹 Production Method & Equipment

Mo-Re alloy flat products are manufactured using advanced powder metallurgy, vacuum arc melting, and rolling processes. High-precision cold rolling and annealing techniques ensure uniform thickness, smooth surface finish, and enhanced mechanical properties.

🔹 Size & Customization

We provide standard and customized sizes to meet specific requirements. Custom thickness, width, and length are available upon request.

🔹 Certifications & Quality Assurance

✅ ISO 9001 Certified Manufacturing
✅ ASTM B386, ASTM F2896 Compliant
✅ Strict Quality Control & Testing (Chemical Composition, Mechanical Properties, Surface Finish)

🔹 Lead Time & Minimum Order Quantity (MOQ)

📅 Lead Time: 2-4 weeks (depending on order size and specifications)
📦 MOQ: 1 kg or as per customer requirements

🔹 FAQs (Frequently Asked Questions)

Q1: What is the highest temperature Mo-Re alloys can withstand?
✅ Mo-Re alloys can withstand temperatures above 2,000°C while maintaining mechanical integrity.

Q2: Can Mo-Re sheets be machined or welded?
✅ Yes, Mo-Re alloys are machinable and weldable, but specialized techniques are required due to their high strength and hardness.

Q3: What are the advantages of Mo-41% Re over Mo-20% Re?
✅ Mo-41% Re provides greater ductility and resistance to thermal fatigue, making it ideal for aerospace applications.

Q4: Do you provide custom sizes and thicknesses?
✅ Yes, we offer full customization based on customer requirements.

🔹 How to Choose the Right Mo-Re Alloy?

✔ Mo-20% Re: Best for high-temperature structural components with moderate ductility.
✔ Mo-41% Re: Ideal for aerospace and electronic applications requiring superior mechanical strength.
✔ Mo-44.5% Re & Mo-47.5% Re: Excellent for extreme environments needing high ductility and resistance to thermal fatigue.

🔹 Product Standards

✔ ASTM B386 (Standard Specification for Molybdenum and Molybdenum Alloy Strip, Sheet, and Plate)
✔ ASTM F2896 (Medical Applications Standard)

🔹 Product Specifications

Composition	Rhenium Content (%)	Density (g/cm³)	Melting Point (°C)	Tensile Strength (MPa)
Mo-20% Re	20	11.0	2,620	600-800
Mo-41% Re	41	11.2	2,620	800-1,000
Mo-44.5% Re	44.5	11.3	2,620	1,000-1,200
Mo-47.5% Re	47.5	11.4	2,620	1,200-1,400

🔹 Production & Quality Control

Every batch undergoes rigorous testing:
✅ Chemical Composition Analysis (ICP, XRF)
✅ Mechanical Testing (Hardness, Tensile Strength)
✅ Surface Inspection (Optical & SEM Analysis)

🔹 Shipping & Delivery Information

📦 Packaging: Vacuum-sealed, corrosion-resistant wrapping
🚛 Delivery Options: Air, sea, and express courier services available
🌍 Global Shipping: We ship worldwide with reliable logistics partners

🔹 Environmental Impact & Sustainability

♻ Mo-Re alloys are recyclable and produced using energy-efficient methods to reduce environmental impact.

🔹 Maintenance & Care Instructions

✔ Store in a dry, controlled environment to prevent oxidation.
✔ Avoid exposure to strong acids unless protected with a suitable coating.
✔ Handle with care to prevent deformation of thin foils.

🔹 Differentiation Between Products

Each Mo-Re alloy composition offers distinct mechanical and thermal properties to suit different industry needs.

📩 Contact Us

Looking for high-quality Molybdenum Rhenium Alloy Flat Products? Contact us today for a quote or more information!

Chemical Identifiers

Linear Formula	Mo/Re
MDL Number	N/A
EC No.	N/A
Pubchem CID	9993894
IUPAC Name	molybdenum; rhenium
SMILES	[Mo].[Re]
InchI Identifier	InChI=1S/Mo.Re
InchI Key	NZPGFUCQQUDSQG-UHFFFAOYSA-N
