Features
CAS Number: | 12031-63-9 |
Linear Formula: | LiNbO3 |
Purity: | 99.9% |
Size: | Diameter: 25.4mm-300mm, Thickness: 0.35-1.0mm. |
Lithium Niobate Wafer Description
Lithium tantalate (LiTaO3) and lithium niobate (LiNbO3) are two kinds of typical multifunction crystal materials. Lithium niobate wafers are used in surface acoustic wave filters, interdigital transducers, optical modulators, pyroelectric IR detectors, etc.

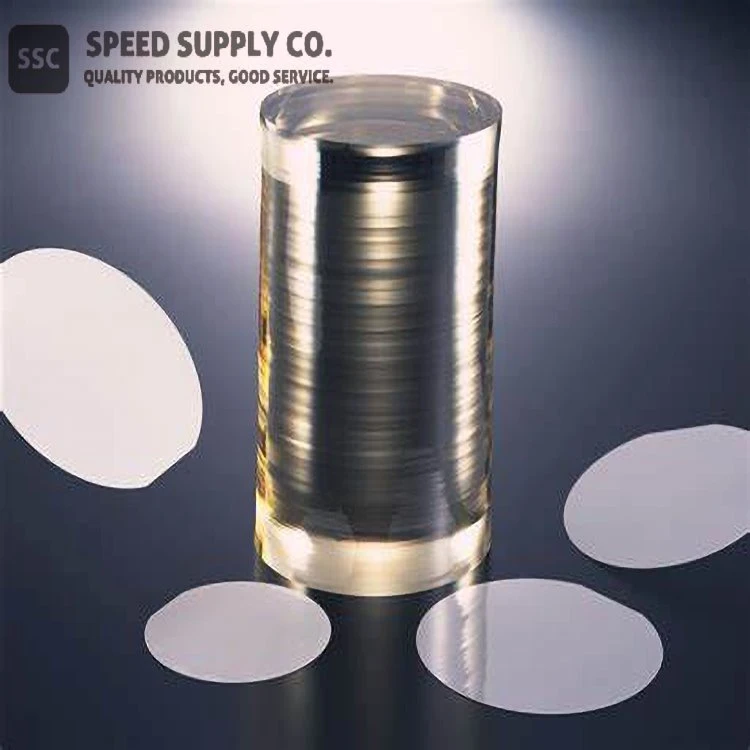

SSC manufactures high purity single crystal lithium niobate wafers range from 25.4 mm (1 inch) to 300 mm (11.8 inches) in diameter. Wafers can be produced in various thicknesses and orientations with polished or unpolished sides and can include dopants.
Lithium Niobate Wafer Specification
Parameter | Wafer | |
Diameter (mm) | 76.2±0.3 | 100.0±0.3 |
Axis Orientation | X, Y, Z, 64°Y, 127.86°Y, 135°Y | |
Thickness (mm) | 0.35-1 | |
Ref. Flat Orientation | X, Y, 112.2°Y | |
Ref. Flat Width (mm) | 22.0±1.0 | 32.5±1.0 |
Front Side Polish | +: Mirror Polished (Ra≤8Å) | |
Back Side Lapping (µm) | 0.2-4 | |
TTV (µm) | ≤10 | ≤10 |
PLTV (5×5 mm; LTV <1µm) | ≥97% | ≥95% |
Bow (µm) | ≤20 | ≤35 |
Edge Bevel | Edge Rounding | |
Poling | Complete | |
Curie Temperature (°C) | 1142.0±2.0°C | |
Lithium Niobate Wafer Applications and Related Industries
● Interdigital transducers, EO, pyroelectric IR detectors, etc.
● Substrate material for RF surface acoustic wave (SAW) filters
● Linear optics
● Motion detectors
● Cell phones for its optical, piezoelectric, and pyroelectric properties.
● Electronics
● Glass
● Laser
● Research & Laboratory
Chemical Identifiers
Linear Formula | LiNbO3 |
MDL Number | MFCD00011080 |
EC No. | 234-755-4 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23665650 |
IUPAC Name | lithium; oxido(dioxo)niobium |
SMILES | [Li+].[O-][Nb] (=O)=O |
InchI Identifier | InChI=1S/Li.Nb.3O/q+1;-1 |
InchI Key | GQYHUHYESMUTHG-UHFFFAOYSA-N |
Lithium Niobate Wafer Properties (Theoretical)
Compound Formula | LiNbO3 |
Molecular Weight | 147.85 |
Appearance | Colorless solid or off-white powder |
Melting Point | 1257 °C |
Boiling Point | N/A |
Density | 4.65 g/cm3 |
Solubility in H2O | N/A |
Exact Mass | 147.907125 |
Monoisotopic Mass | 147.907125 |
