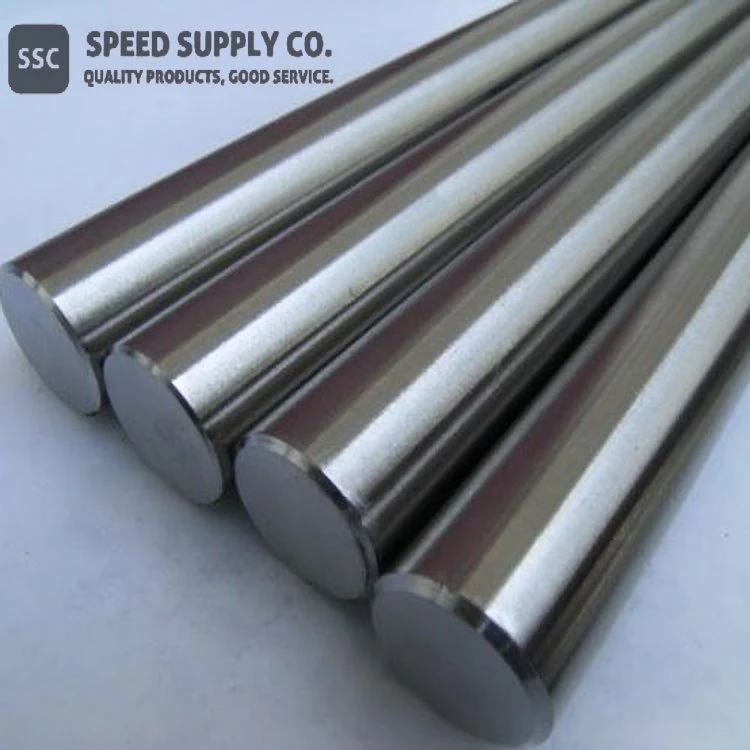

C-129Y Niobium Alloy

C-129Y Niobium Alloy

Linear Formula: Nb-80% W-10% Hf-10% Y-0.1%

Send Inquiry
Add To Inquiry

Features

Material:

C-129Y Nb Alloy

Linear Formula:

Nb-80% W-10% Hf-10% Y-0.1%

Purity:

99.9%, 99.95%, 99.99%

Surface:

Polished

C-129Y Niobium Alloy Description

C-129Y alloy (niobium-tungsten-hafnium-yttrium) is a niobium based alloy which has high temperature resistance and high strength. It is a complex refractory alloy consisting primarily of niobium, with additions of 10wt% tungsten, 10wt% hafnium, 0.1wt% yttrium, and trace amounts of other elements. This type of alloy is suitable for the manufacture of riveting and fastening components such as screws, bolts, nuts, etc.

Chemical Composition of C-129Y Niobium Alloy

Products

Chemical Composition/ %

Chemical Composition/ 10-6

Nb

W

Mo

Ta

V

Hf

Zr

Ti

C

O

N

C-129Y

Balance

10

-

-

-

10

-

0.2Y

150

225

150

Specification for Niobium Hafnium Alloy Products

Product name

Material

Specification

Size

Nb-Hf Alloy Ingot

R04295 (Nb-10Hf),

Nb-10W-10Hf
(Niobium-10% Tungsten-10% Hafnium),
C-103

C-129Y

ASTM B652

Diameter 20-295 mm,
Length <1600 mm

Nb-Hf Alloy Foil

Thickness 0.01-0.09 mm,
Width 30-300 mm,
Length >50 mm

Nb-Hf Alloy Sheet & Plate

Thickness 0.1-10 mm,
Width 30-1000 mm,
Length 50-2000 mm

Nb-Hf Alloy Tube & Pipe

ASTM B394

Outer Diameter 2.0-100 mm,
Wall Thickness 0.2-5.0 mm,
Length 200-8000 mm

Nb-Hf Alloy Rod

ASTM B655

Diameter 3.0-120 mm,
Length <6000 mm

Nb-Hf Alloy Wire

Diameter 0.1-3.0 mm

Nb-Hf Alloy Disc & Target

ASTM B652

Circular Targets:
Diameter 10-400 mm,
Thickness 2-28 mm.
Rectangular Targets:
Thickness 1-20 mm
Width <800 mm
Length <3000 mm

Nb-Hf Alloy Crucible

Shape: Cylinder, Core,
rectangular boat

Customized

Customized

Physical Properties of C-129Y Niobium Alloy

roducts

Composition

Density/ g·cm-3

Temperature /˚C

Coefficient of Line-expansion/ 10-6K-1

Recrystallization Temperature/ ˚C

Anneal Temperature/ ˚C

Elongation Brittle Transition Temperature/ ˚C

C-129Y

Nb-10W-10Hf-0.5Ta-0.7Zr-0.1Mo-0.4Y

9.5

2399

4.73 (1371˚C)

1038 - 1093

982

- 196

Mechanical Properties of C-129Y Niobium Alloy

(Temperature at 21℃)

Products

Modulus of Elasticity

Tensile Strength/ MPa

Yield Strength/ MPa

Elongation (Standard 50.8mm)/ %

C-129Y

105 460

632.8

534.3

25

High-temperature Properties of C103 Niobium Alloy

Products

Composition

Shape

Temperature/ ˚C

Tensile Strength/ MPa

Temperature/ ˚C

Break Strength/ MPa

C-129Y

10W, 10Hf, 0.1Y

Sheet

1316

161.7

1093

105.5

C-129Y Niobium Alloy Applications and Related Industries

● Research & Laboratory

● Metallurgy

● Aerospace

● Aviation

● Milltary

● Material science
