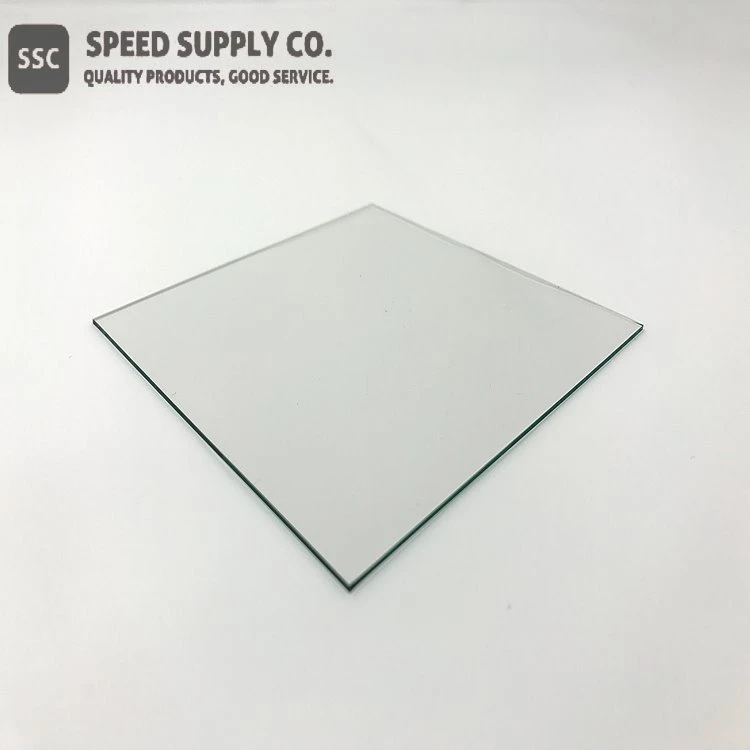

Indium Tin Oxide Coated Glass Slide

Indium Tin Oxide Coated Glass Slide Description

Indium tin oxide coated glass slide is one of the types of transparent conductive oxide (TCO) coated substrate. It is commonly known as ITO coated glass. The ITO coated glass has excellent conductive and high transmittance properties. The ITO glass is an N-type semiconductor. The uniform thin layer of Indium tin oxide over a glass substrate makes it highly transparent and low surface resistance. The ITO coating over a glass sheet is carried out in the entirely vacuumed condition by magnetron sputtering method at around 300 degree Celsius. It is a single side coating, where coated surface is conductive, and another surface is insulated. In this approach, there is passivation layer of silicon dioxide (SiO2) in between ITO layer and borosilicate glass surface. The standard thickness of SiO2 is 25 nm. The passivation layer is essential to increase the quality as well as longevity of ITO coated glass plate. The borosilicate glass or float glass is a single side finished substrate. The maximum operating temperature of ITO coated glass slide is 350 degree Celsius.

ITO coated glass plate is laser cut majorly in square and rectangular shape, sometimes it customized in circular shape also. It is also called as ITO coated glass coverslip. The square shaped standard ITO coated glass slides size is 25mm, 50mm, 100mm, and 200mm. The rectangular shaped ITO glass slide is 50mm x 25mm and 75mm x 25mm. The maximum produced size of ITO coated glass substrate is 405mm x 305mm. The standard thickness of float glass which conventionally used for coating is 0.5mm, 0.7mm, and 1.1mm. Indium tin oxide conductivity depends on the surface resistance, which is reciprocal to conductivity. The specified surface resistivity of the ITO coated glass sheet is in the range of 10 to 100 ohms per square. The transmittance of the ITO glass coverslips at 550nm is greater than 85%. The ITO film or layer thickness is in the range of 50nm to 200nm (500Å – 2000Å). The surface roughness is 1-10 nm depending on their specifications, whereas the ITO work function is 4.8-4.9eV after a proper cleaning. It is also known as ITO wafer. The haze of the conductive glasses is less than 1%.

Indium Tin Oxide Coated Glass Slide Properties

● Highly transparent and electrically conductive coating

● Excellent optical transmittance from the visible to the near-infrared wavelength range

● Sputtered indium tin oxide thin-film

● Coated on high-quality glass substrates

● SiO2 passivation layer (CEC–S & CEC–P series)

● Low microroughness

● High electrical surface resistance homogeneity

● Reflective for infrared wavelengths

● High uniformity of transmission

● Excellent abrasion resistance and coating adhesion

● Structuring by laser or etching processes possible

Indium Tin Oxide Coated Glass Slide Applications and Related Industries

● LCD and OLED displays

● ITO-coated microscope slides for science and research

● Micro structuring applications

● Heatable microscope tables and slides

● Coverslips for medical technology

● Conductive coatings for touch screens and touch-sensitive display technology

● Circuit substrates for electronics

● Microscope heating stages

● Anodes for organic LEDs (OLED)

● Translucent electrodes and capacitors

● EMF/EMI/EMC/RFI and HF shielding glass

● Flat antennas for digital mobile communication devices

● Conductive object carriers & cover glasses

● Optical windows for space applications

● Organic solar cells

● Reflective infrared filters

● Coatings for de-icing windows

● Infrared mirrors
