Features
CAS No.: | 7440-58-6 |
Material: | Pure Hafnium (Hf+Zr > 99.95%, Zr < 1%) |
Standard: | ASTM-B-776, ASTM-B-737 |
Appearance: | Silvery metallic solid |
Shape: | Board, Sheet, Foil, Plate, Strip, Ribbon, Disc |
Size: | Thickness: 0.025-101.6mm (0.001"-4") Width: 610mm (24") max Length: 1524mm (60") max |

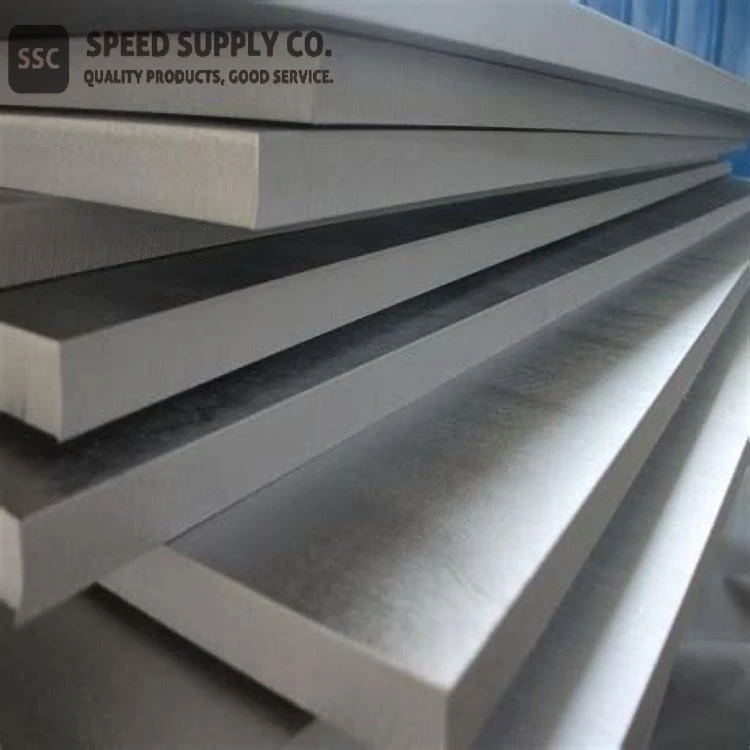

Hafnium Flat Products Description
Hafnium has good corrosion resistance and high strength. It resists corrosion due to formation of a tough, impenetrable oxide film on its surface. Hafnium is unaffected by alkalis and acids, except hydrofluoric acid. Hafnium is difficult to separate form zirconium, because the two elements have atoms that are the same size.
Hafnium applications include nuclear reactors, nuclear submarines, medical treatment equipment, fuel cells, solar energy.
Product List:
● Hafnium Board

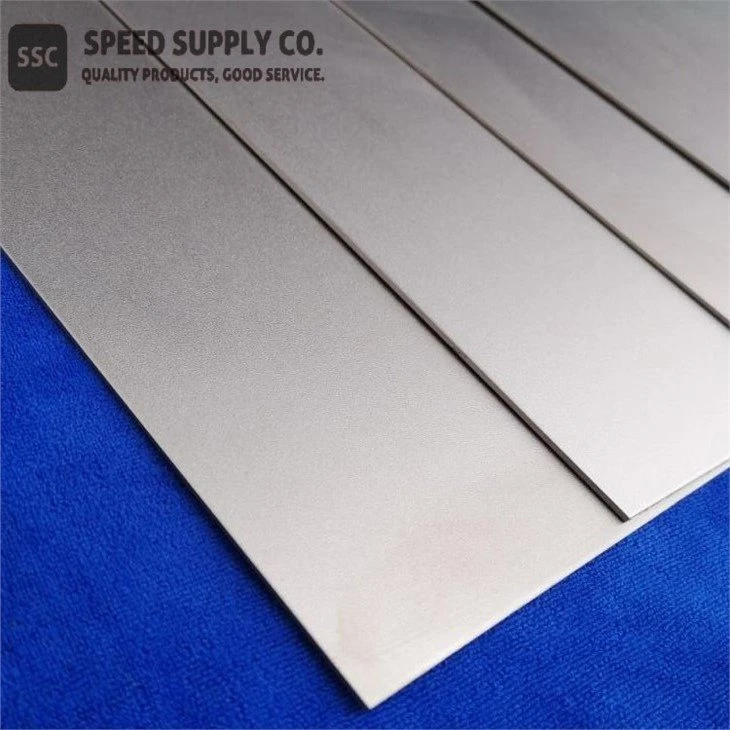

● Hafnium Sheet

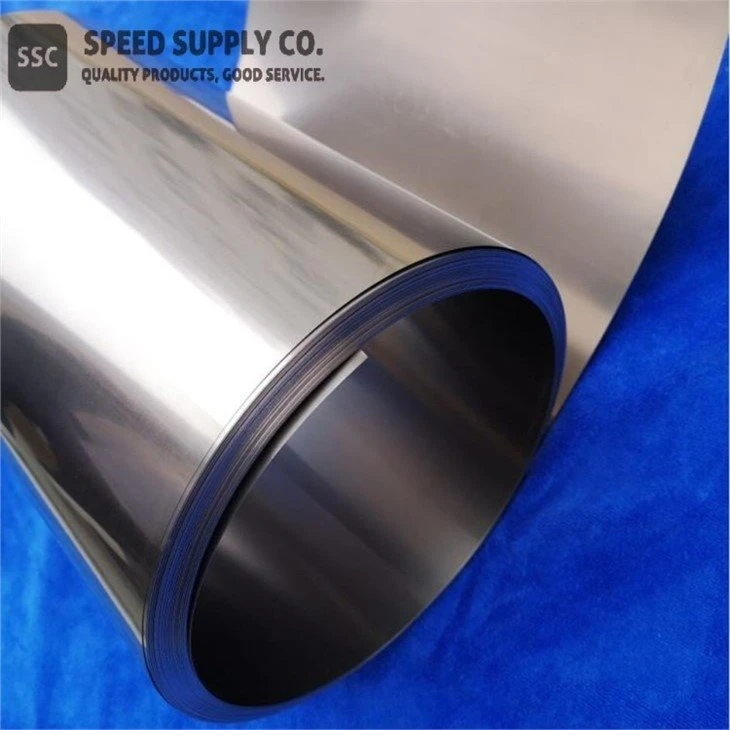

● Hafnium Foil
● Hafnium Plate
● Hafnium Strip
● Hafnium Ribbon
● Hafnium Disc
Hafnium Flat Products Applications and Related Industries
● Nuclear reactors
● Nuclear submarines
● Medical treatment equipment
● Fuel cells
● Solar energy
● Research & Laboratory
Packaging of Hafnium Flat Products
Our hafnium flat products are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
Linear Formula | Hf |
MDL Number | MFCD00011032 |
EC No. | 231-166-4 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23986 |
SMILES | [Hf] |
InchI Identifier | InChI=1S/Hf |
InchI Key | VBJZVLUMGGDVMO-UHFFFAOYSA-N |
Hafnium Flat Products Properties (Theoretical)
Molecular Weight | 178.49 |
Appearance | Silver |
Melting Point | 2227 °C |
Boiling Point | 4602 °C |
Density | 13.31 g/cm3 |
Solubility in H2O | N/A |
Electrical Resistivity | 35.1 microhm-cm @ 25 °C |
Electronegativity | 1.3 Paulings |
Heat of Fusion | 6.0 Cal/gm mole |
Heat of Vaporization | 155 K-Cal/gm atom at 4602 °C |
Poisson's Ratio | 0.37 |
Specific Heat | 0.035 Cal/g/K @ 25 °C |
Tensile Strength | N/A |
Thermal Conductivity | 0.230 W/cm/K @ 298.2 K |
Thermal Expansion | (25 °C) 5.9 µm·m-1·K-1 |
Vickers Hardness | 1760 MPa |
Young's Modulus | 78 GPa |
