Tungsten Cobalt

Tungsten Cobalt, also called Cemented Carbide or Hard Metal, combines tungsten carbide particles with a cobalt binder to make an alloy that is known for its hardness, toughness, and resistance to wear.

Tungsten Cobalt is a combination of tungsten carbide's toughness and cobalt's binding power. This fusion makes a material that is known for its hardness. This makes it the material of choice in many industrial fields.

Features:

Tungsten Cobalt is a strong and durable metal that is great for critical applications. Some of the key features are as follows:

• Tungsten Cobalt is very strong and can last a long time in tough situations.

• The combination of tungsten carbide and cobalt makes a strong and durable material that can handle tough situations.

• Tungsten Cobalt is very resistant to wear, so it's a good choice for applications that need to last a long time and be reliable.

• Tungsten Cobalt is extremely strong and can withstand impact and shock.

Forms:

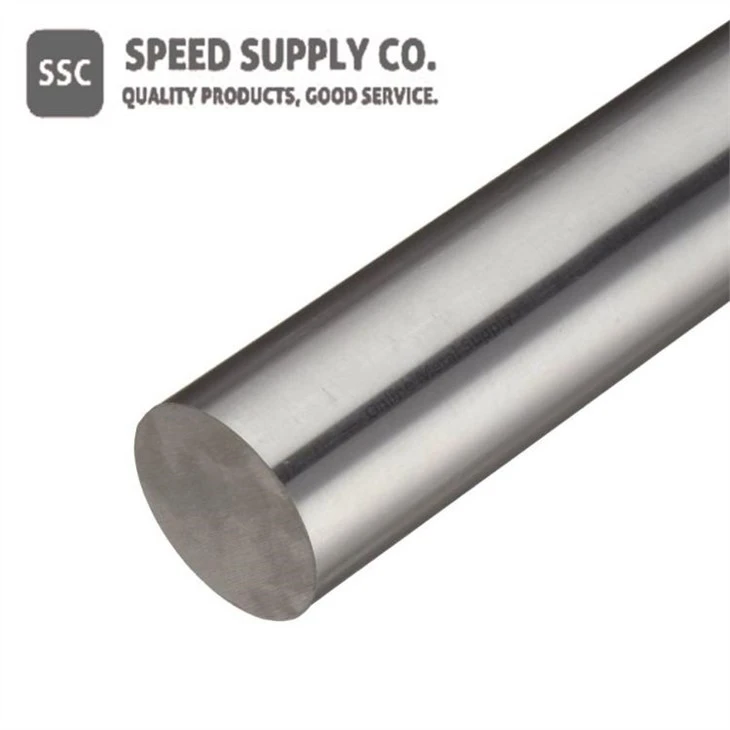

Rods:

● Sizes: Diameter range from 1mm to 35mm, length can be customized according to customer requirements.

● Hardness: HRA 91-93.5

● Density: 14.45-14.8 g/cm³

● Coercivity (Hc): ≥ 11.5 kA/m

● Curie Temperature (Tc): ≥ 860°C

● Magnetic Saturation: 1.17-1.25 T

● Thermal Expansion Coefficient: 5.2×10^-6/℃

● Tensile Strength: 1600-2000 MPa

● Yield Strength: 1200-1600 MPa

Inserts:

● Standard shapes: Round, square, and rectangular

● Hardness: HRA 89-93.5

● Density: 14.2-14.8 g/cm³

● Coercivity (Hc): ≥ 11.5 kA/m

● Curie Temperature (Tc): ≥ 860°C

● Magnetic Saturation: 1.17-1.25 T

● Thermal Expansion Coefficient: 5.2×10^-6/℃

Powder:

● Particle Size: 0.8-20 µm (can be customized according to customer requirements)

● Density: 13.5-14.5 g/cm³

● Coercivity (Hc): ≥ 11.5 kA/m

● Curie Temperature (Tc): ≥ 860°C

● Magnetic Saturation: 1.17-1.25 T

● Thermal Expansion Coefficient: 5.2×10^-6/℃

Custom shapes:

● Tungsten Cobalt can be fabricated into a wide range of custom shapes, such as discs, rings, squares, and more.

● The size, shape, and tolerance can be customized according to customer requirements.

Production Method:

Tungsten Cobalt is made by mixing tungsten carbide and cobalt powders. Then, the powders are compressed and melted at high temperatures. This makes the material very strong and durable.

Applications & Related Industries:

Tungsten Cobalt is used in many different industries.

• Cutting tools are important for tools like drills, end mills, and saw blades because they are really hard and don't break easily.

• Parts that wear well: Used for bearings, bushings, and nozzles that need to last a long time.

• Mining tools: Used in drill bits and cutting teeth for wear resistance and toughness.

• Metalforming dies: Used in punches and dies that are strong and wear resistant.

• Aerospace: Used in turbine blades and vanes for high-temperature resistance and durability.

• Used in brake pads and clutch plates to make them last longer and resist wear.

Health & Safety Information:

Tungsten Cobalt is usually safe, but you need to be careful when handling it.

• Don't breathe in Tungsten Cobalt dust to prevent breathing problems.

• Avoid touching your skin too much to reduce the chance of it getting irritated.

• Wear protective eyewear to keep your eyes safe from possible irritation when handling things.

Our Advantages:

• Standard: We follow strict quality standards to deliver high-quality Tungsten Cobalt products.

• Customization: Choose specific sizes, shapes, and grades to fit your specific needs.

• Competitive prices: Offering the best value without sacrificing quality.

• Expedited delivery: Prompt turnaround times ensure that projects are delivered on time to meet project deadlines.

FAQs:

Q: Tungsten Cobalt is different from Tungsten Carbide.

A: The cobalt binder in Tungsten Cobalt makes it tougher and more resilient than pure Tungsten Carbide.

Q: How hot can Tungsten Cobalt be?

A: Tungsten Cobalt can withstand temperatures up to 1000°C (1832°F)

Q: How long can Tungsten Cobalt products stay fresh?

A: Tungsten Cobalt products keep their integrity for several years if they are stored properly.
